FJ Cruiser 4WD, Automatic T/Case Control
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Multiplex Communication System (CAN)
›
Notes
Multiplex Communication System (CAN): Notes

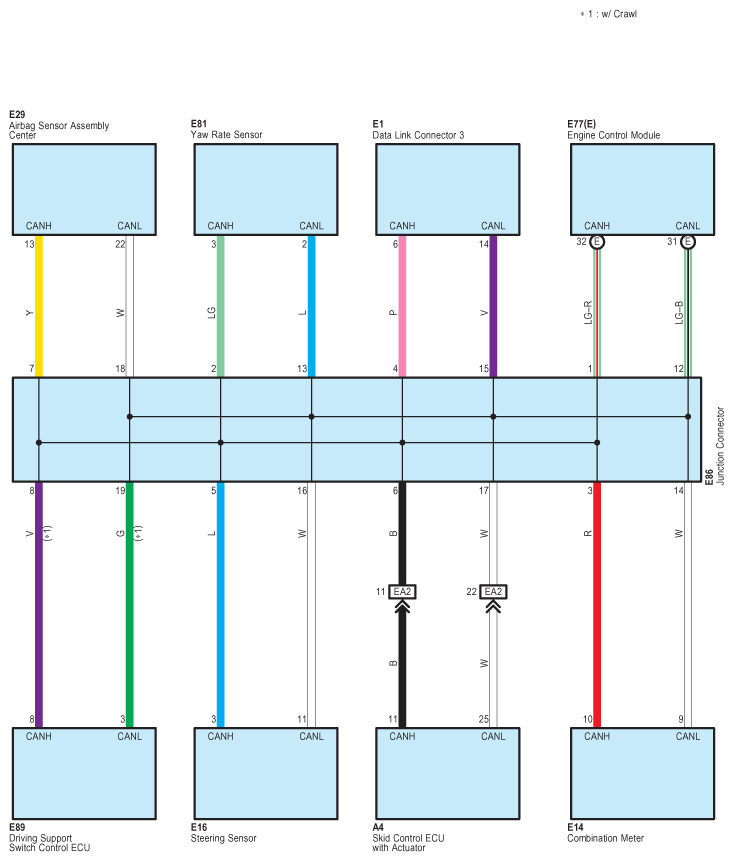

Fig 1: Multiplex Communication (CAN) Wiring Diagram
