FJ Cruiser 4WD, Automatic T/Case Control
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Tire Pressure Warning System
›
Notes
Tire Pressure Warning System: Notes

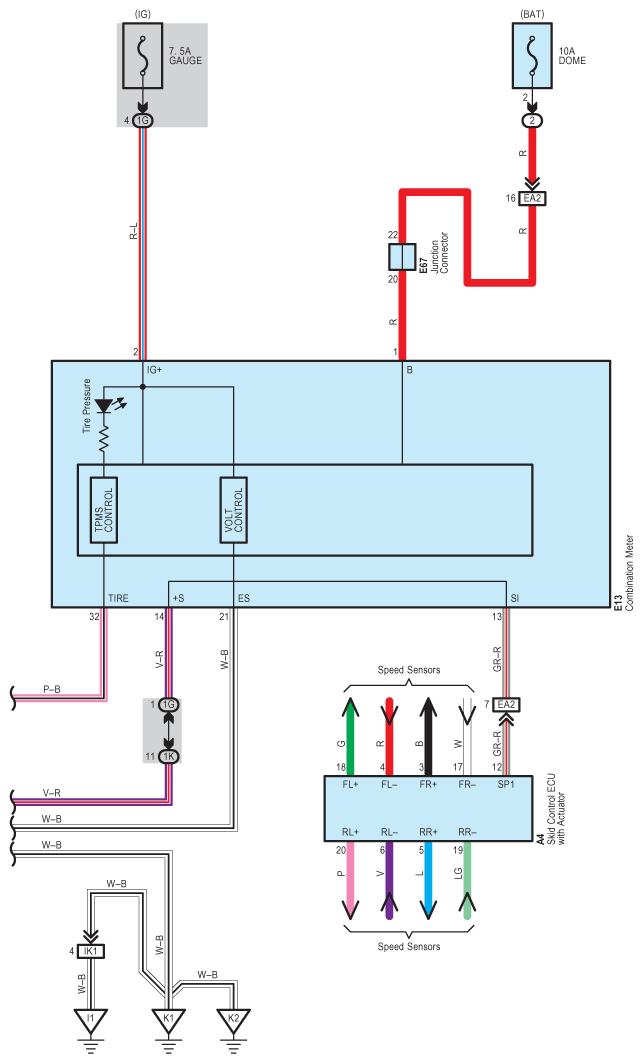

Fig 1: Tire Pressure Warning System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

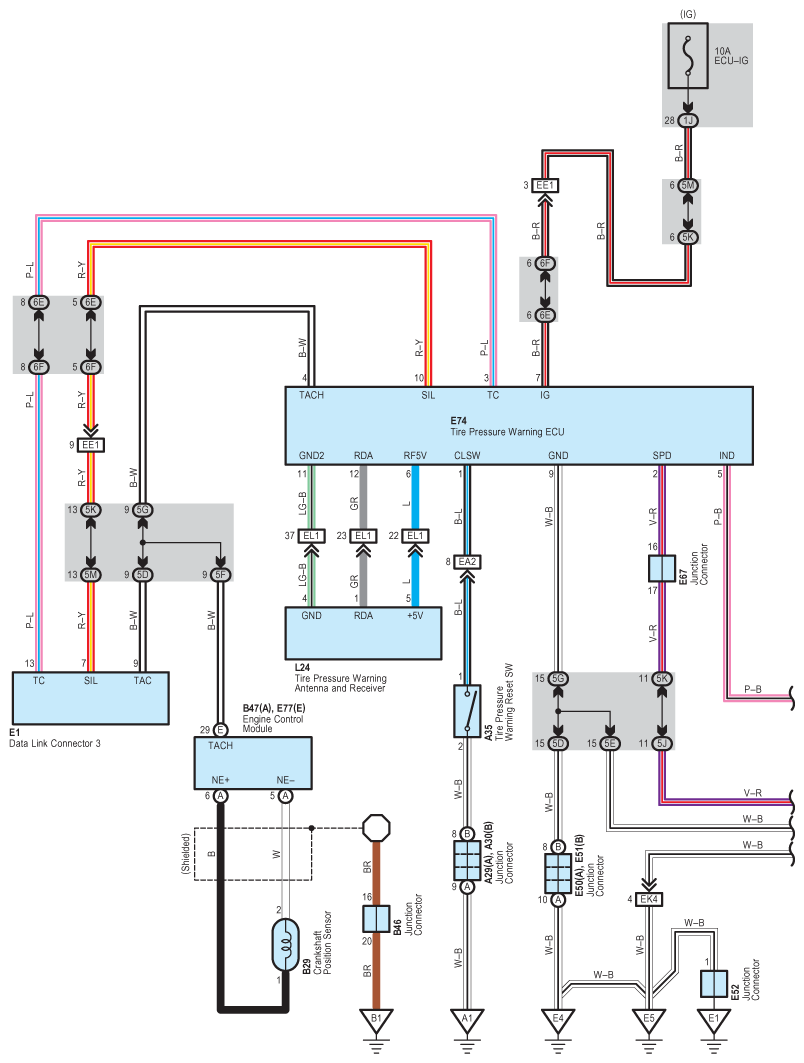

Fig 2: Tire Pressure Warning System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
