Fuel System
›
System Diagram
›
System Diagram
System Diagram
ELECTRICAL CONTROL DIAGRAM

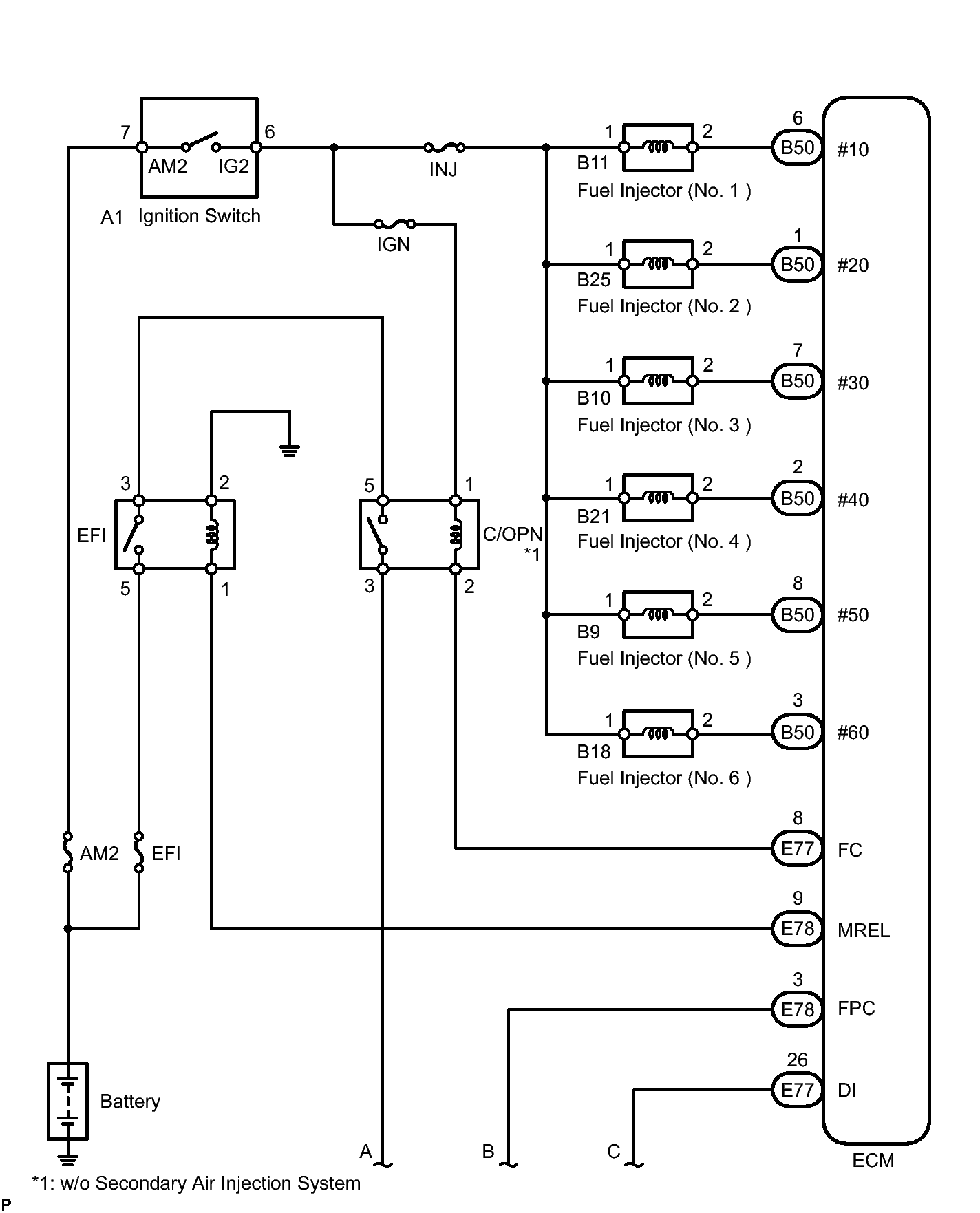

Fig 1: Fuel Injection Electrical Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

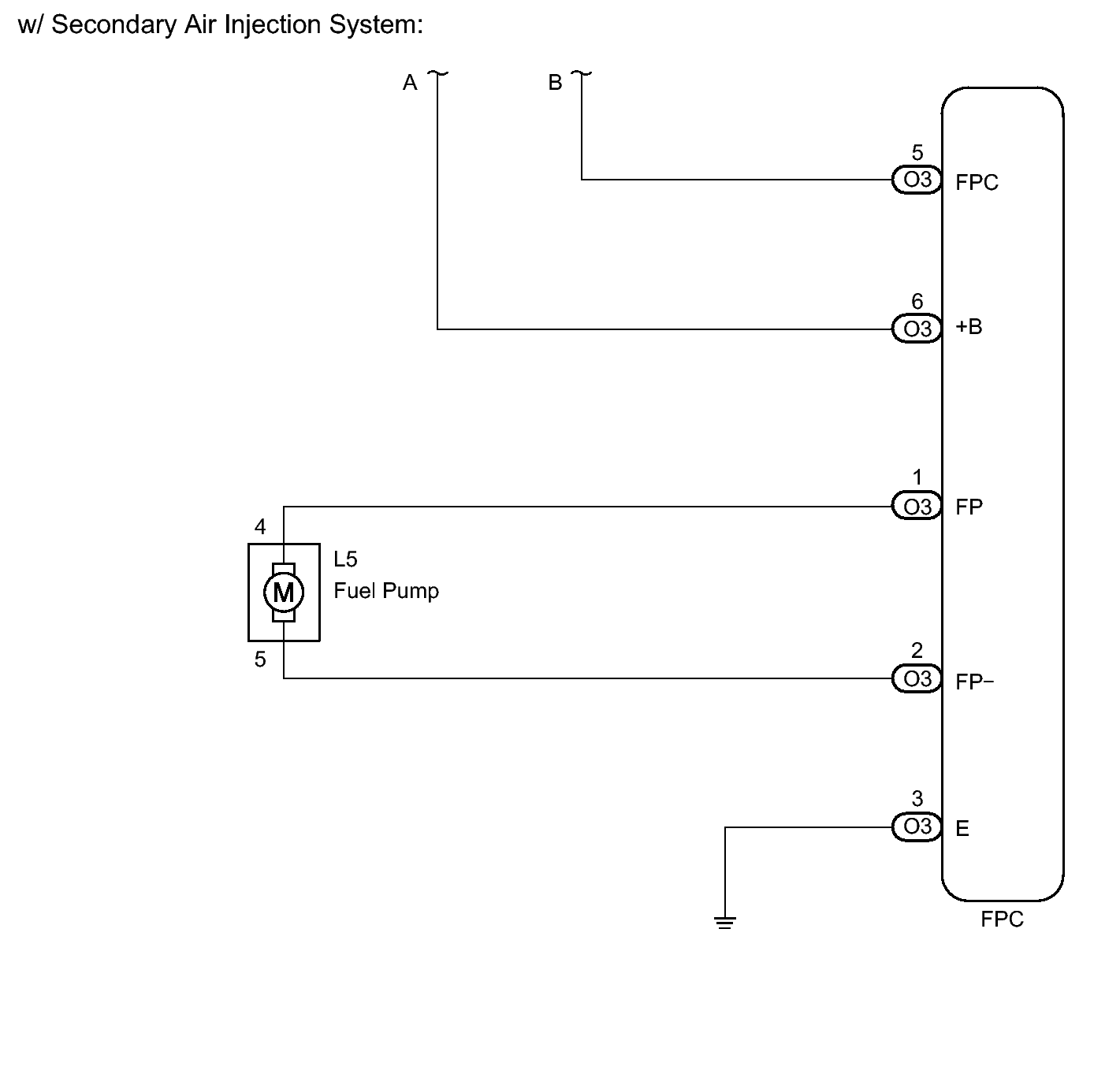

Fig 2: Fuel Injection Electrical Control System Diagram (With Secondary Air injection System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Fuel Injection Electrical Control System Diagram (Without Secondary Air injection System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
