Ground Point: Notes — 2013 Toyota FJ Cruiser 4WD, Part Time T/Case Control Service Manual ~ FixVault

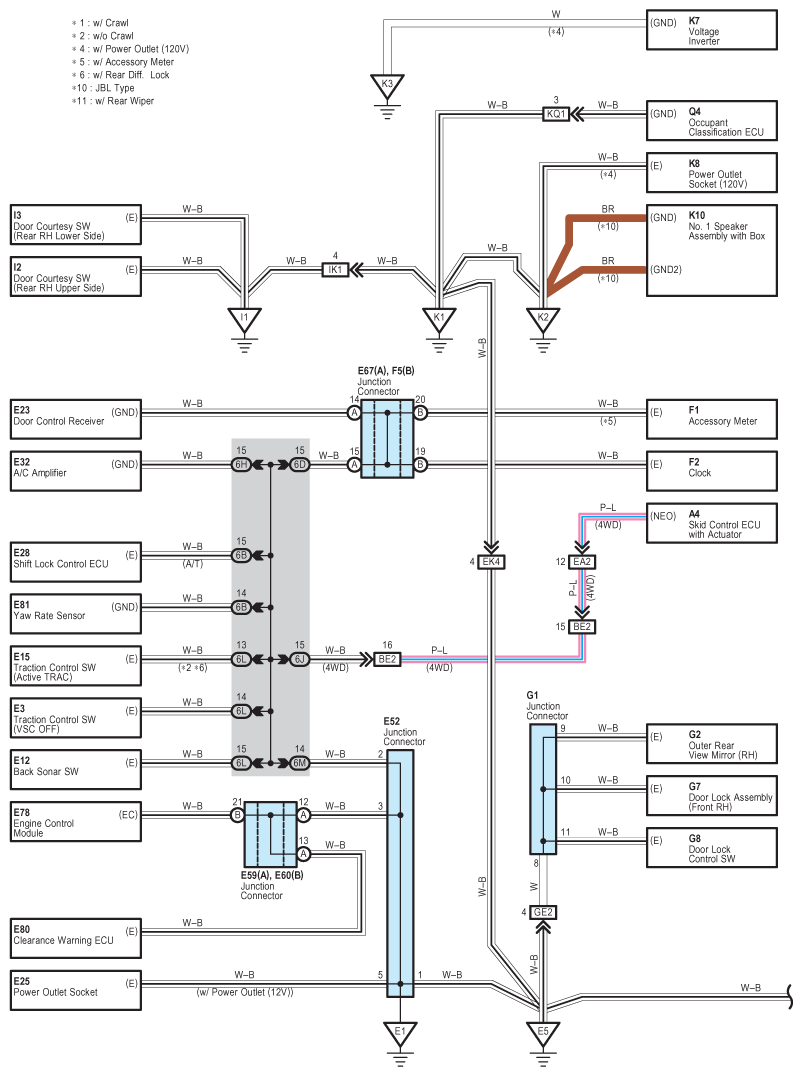

Fig 1: Ground Point Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

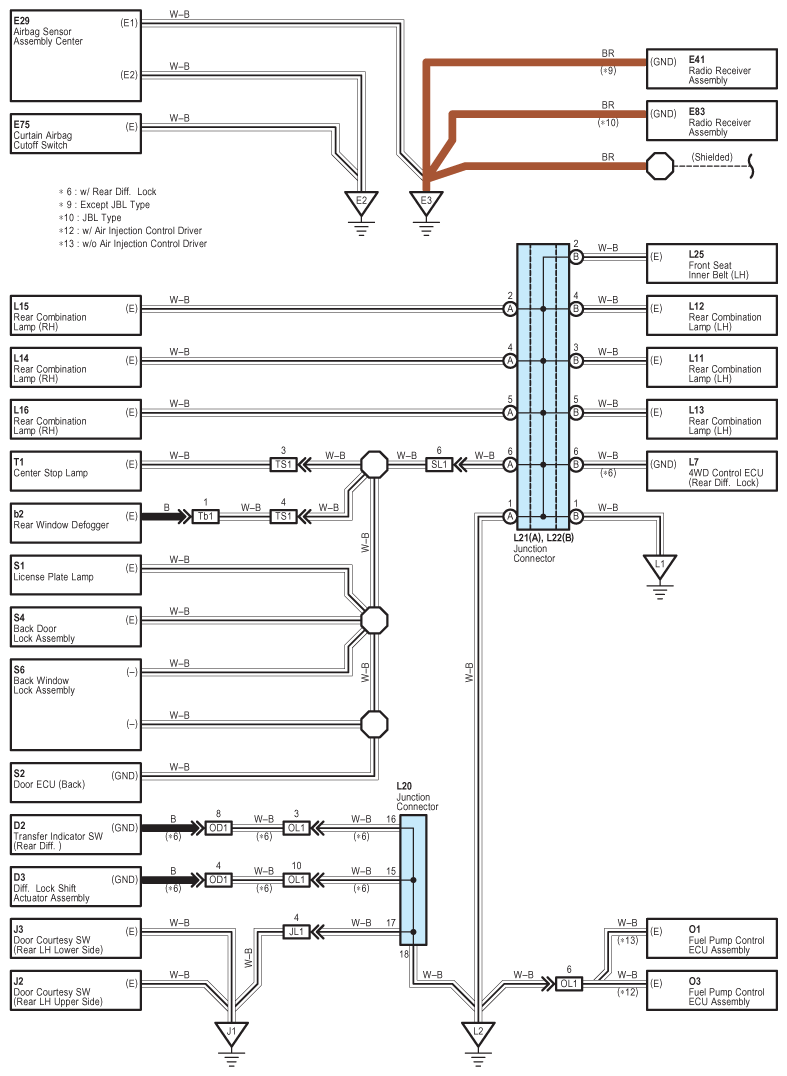

Fig 2: Ground Point Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

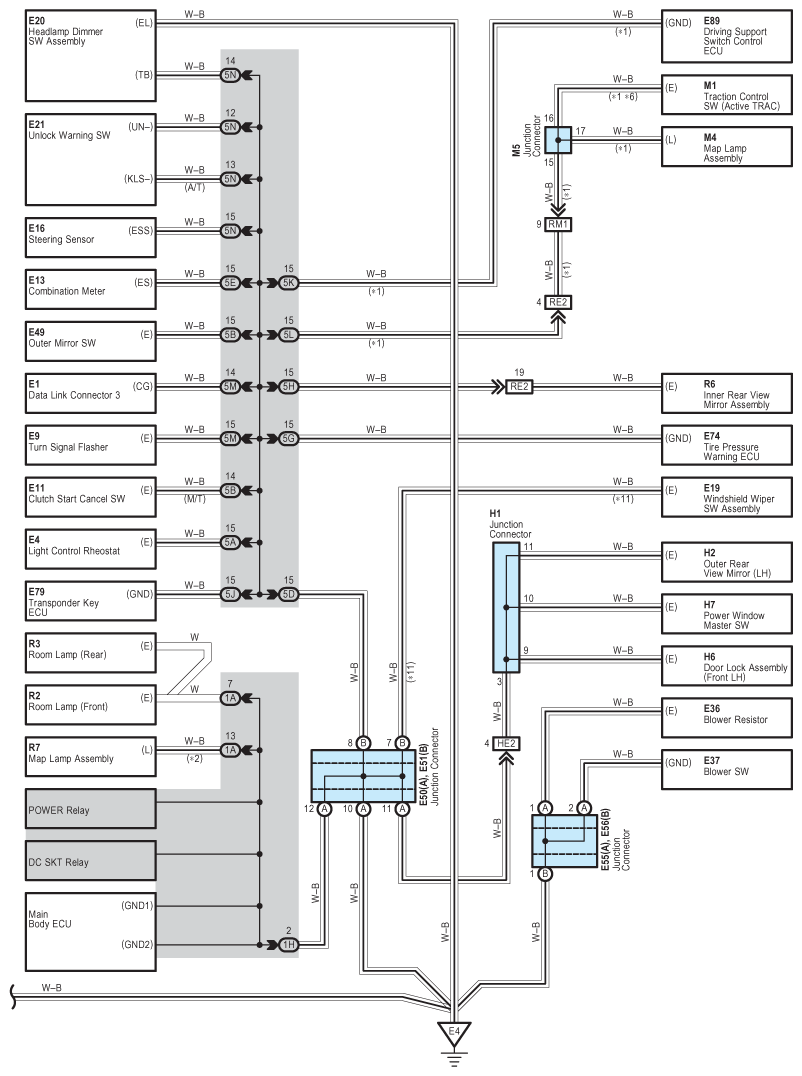

Fig 3: Ground Point Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

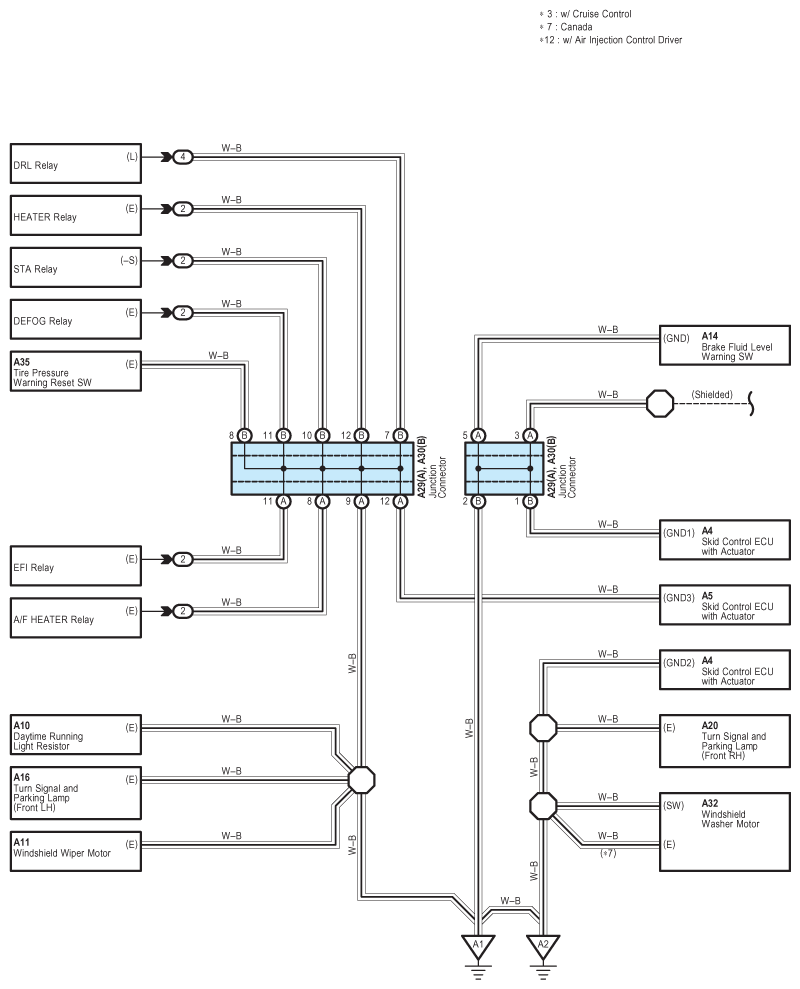

Fig 4: Ground Point Wiring Diagram (4 Of 5)

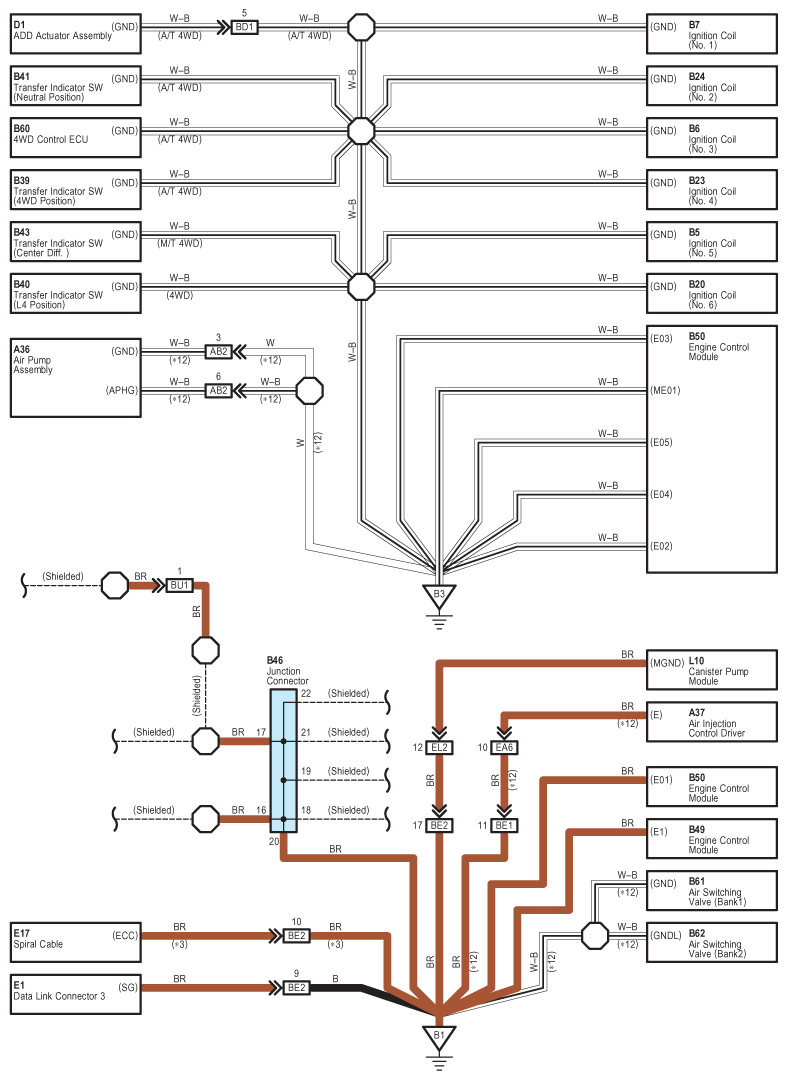

Fig 5: Ground Point Wiring Diagram (5 Of 5)
