Fuel Sender Gauge Assembly: Installation: Installation

  1. INSTALL FUEL SENDER GAUGE ASSEMBLY
    1. Set the fuel sender gauge to the fuel sub-tank. Then slide the fuel sender gauge downward to install it.

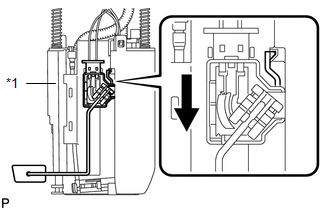

      Fig 1: Identifying Fuel Sub-Tank And Fuel Sender Gauge
      GTY188313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Fuel Sub-tank
      Slide
    2. Connect the fuel sender gauge connector.
  2. INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY
    1. Install the fuel suction with pump and gauge tube assembly. Refer to INSTALLATION .
