Parts Location: Illustration

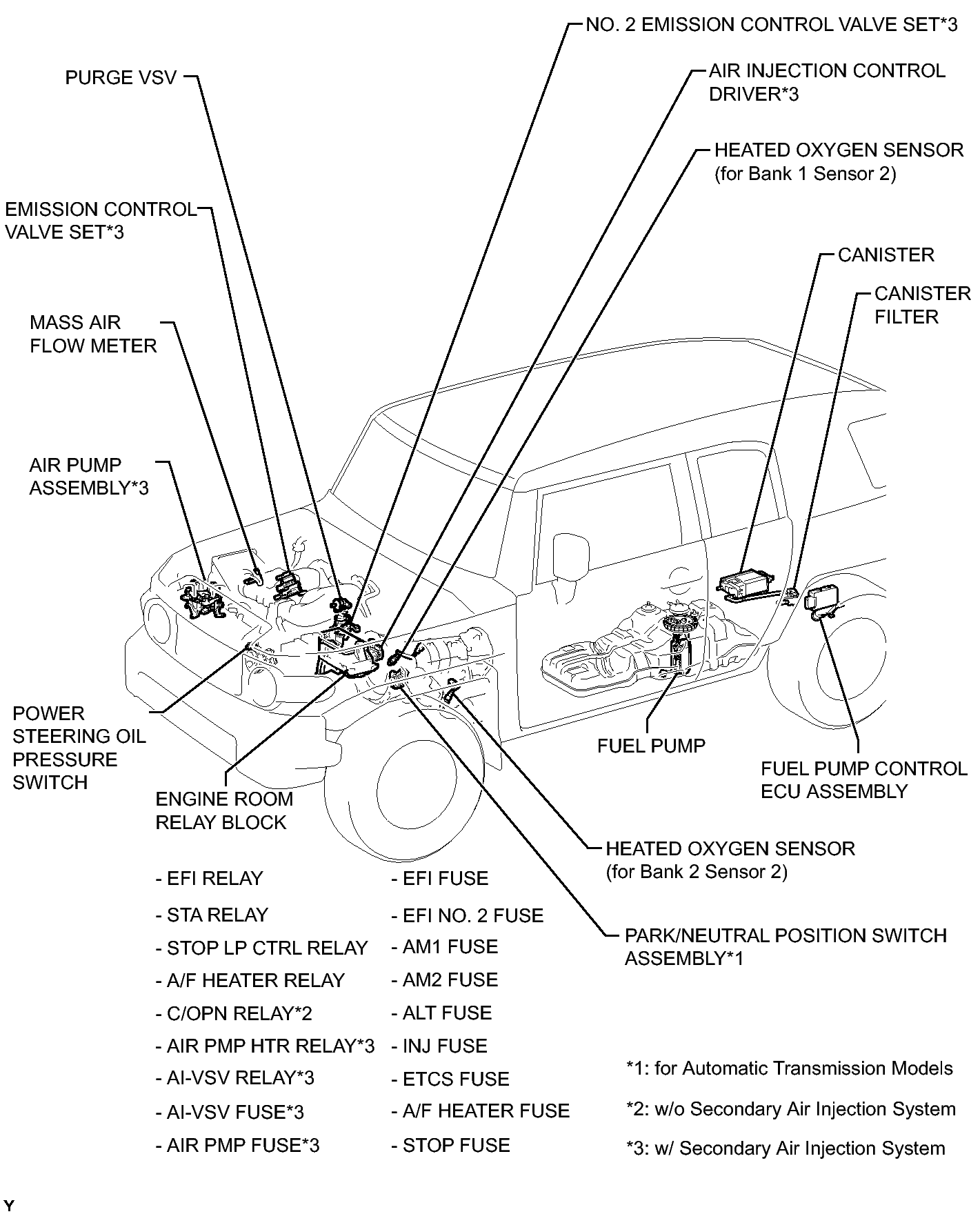

Fig 1: Identifying SFI System Replacement Components (1 Of 4)
GTY378994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

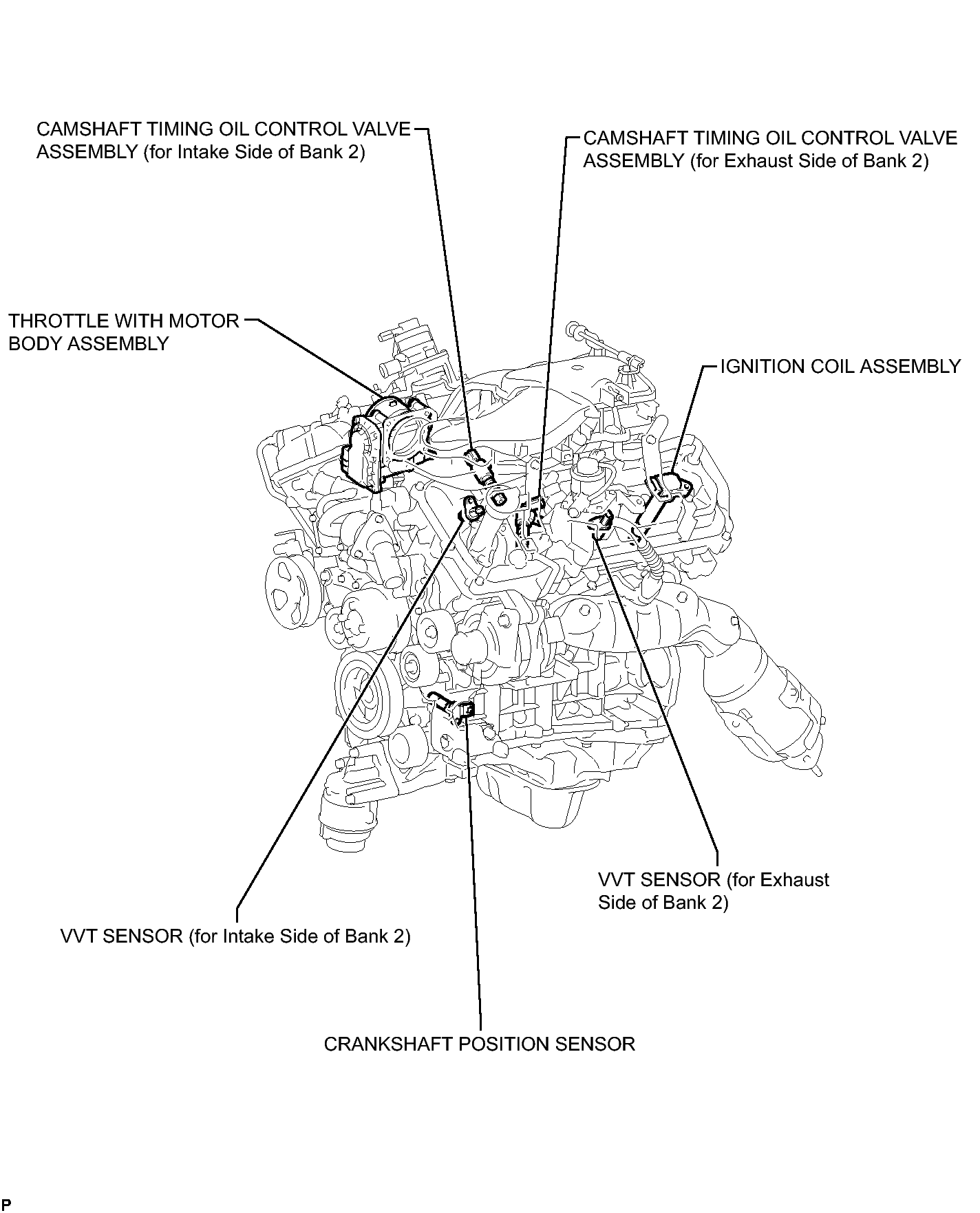

Fig 1: Identifying SFI System Replacement Components (2 Of 4)
GTY368645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

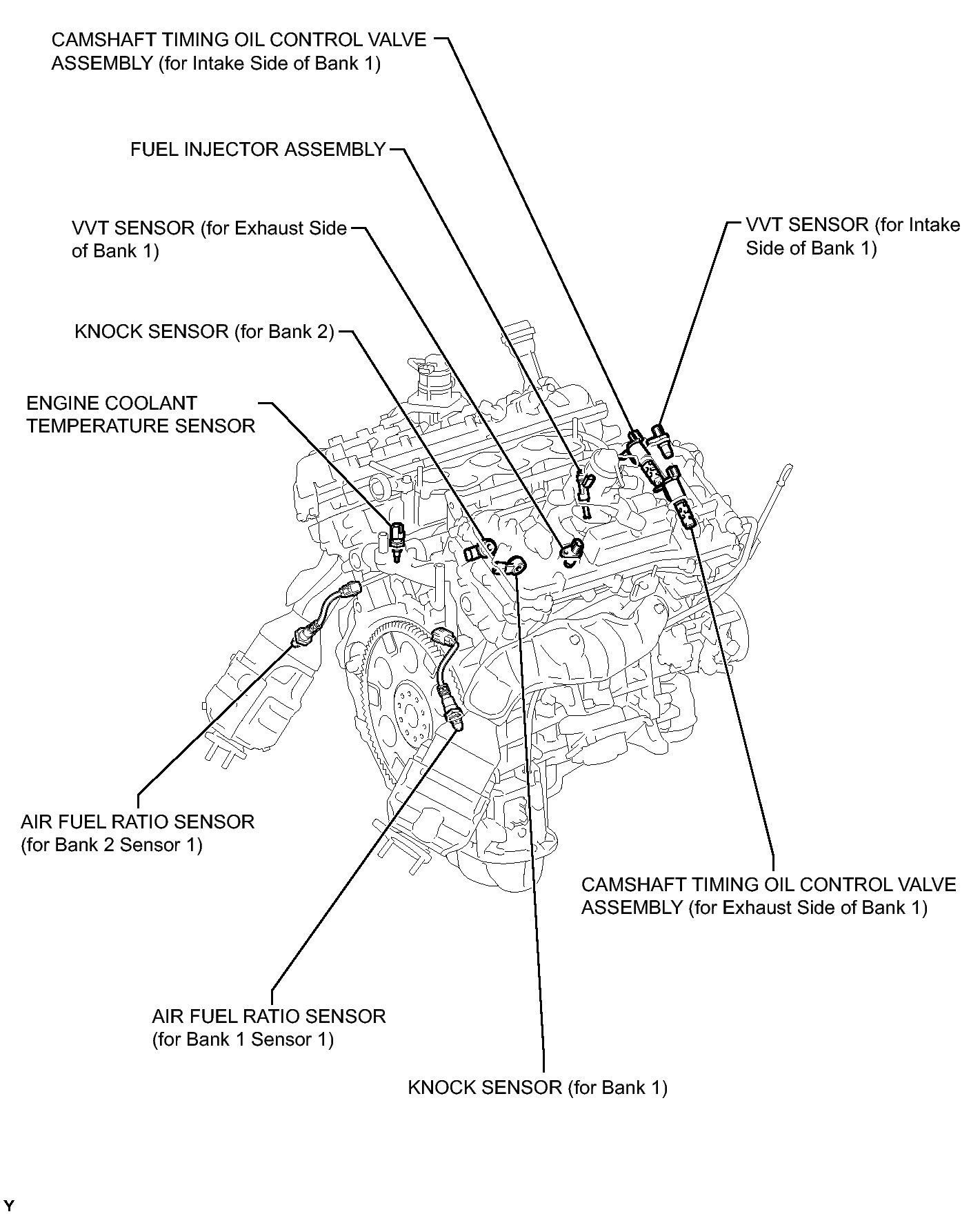

Fig 1: Identifying SFI System Replacement Components (3 Of 4)
GTY369917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

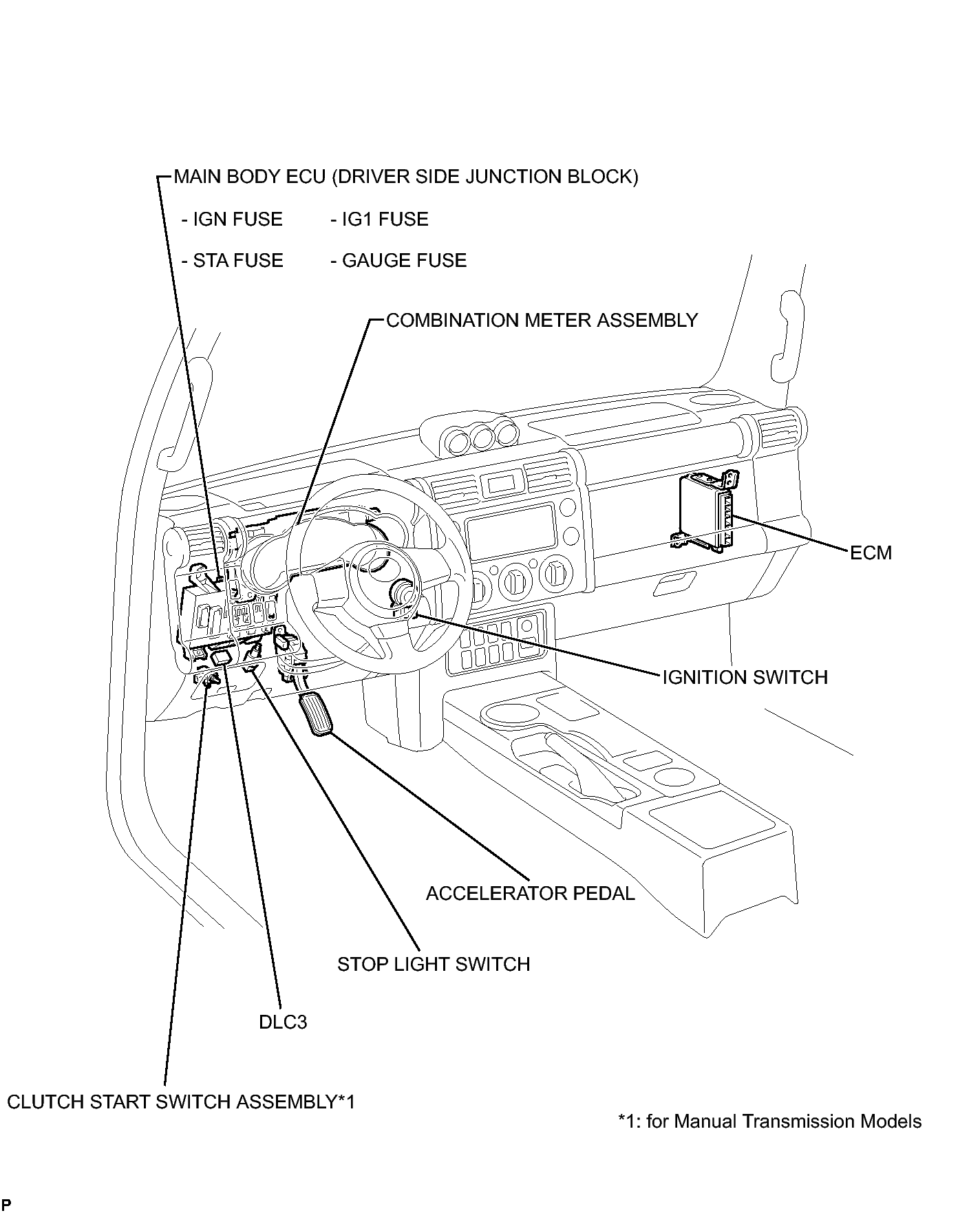

Fig 1: Identifying SFI System Replacement Components (4 Of 4)
GTY381282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
