System Diagram

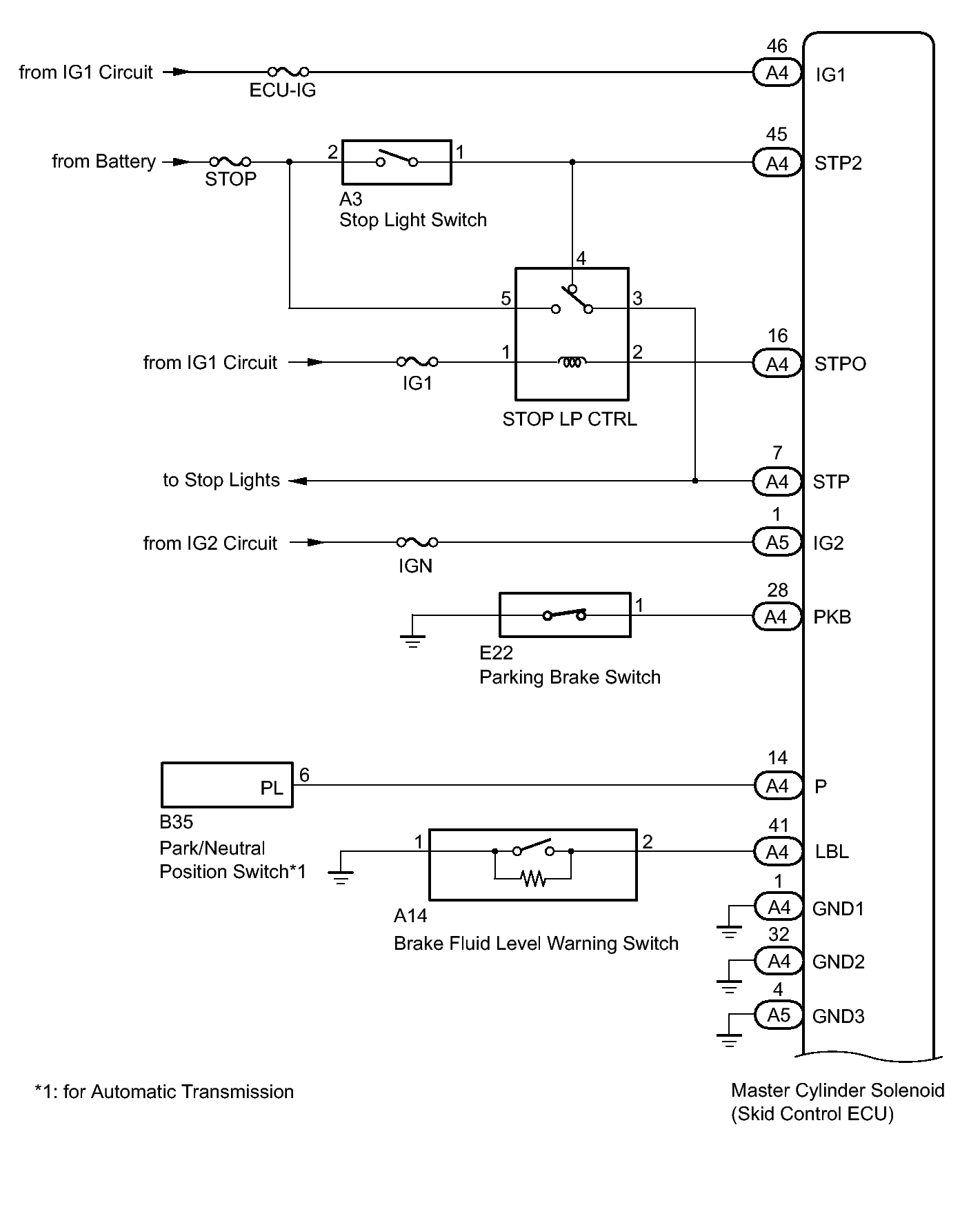

Fig 1: Vehicle Stability Control System Diagram (1 Of 5)
GTY371751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

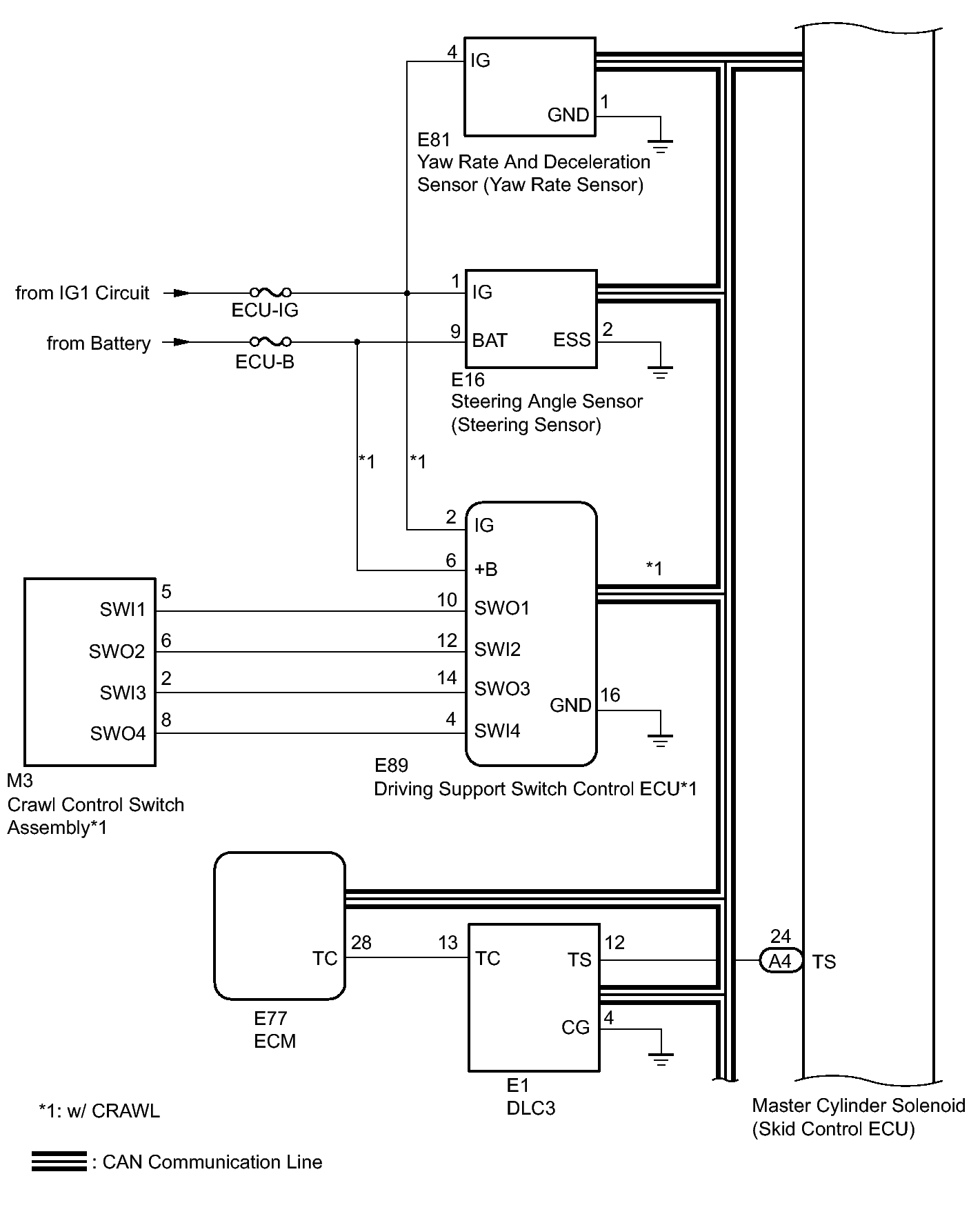

Fig 2: Vehicle Stability Control System Diagram (2 Of 5)
GTY361204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

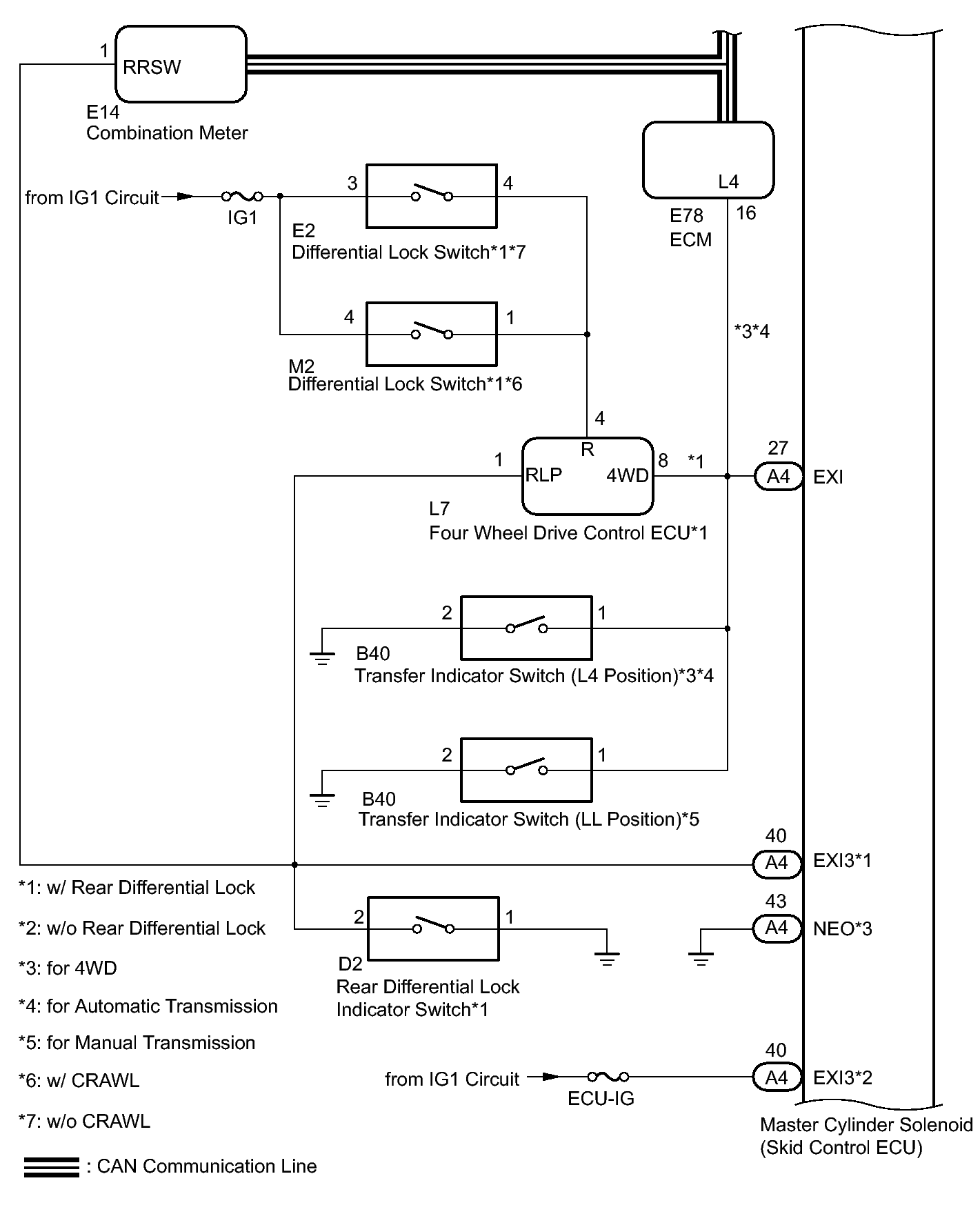

Fig 3: Vehicle Stability Control System Diagram (3 Of 5)
GTY373076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

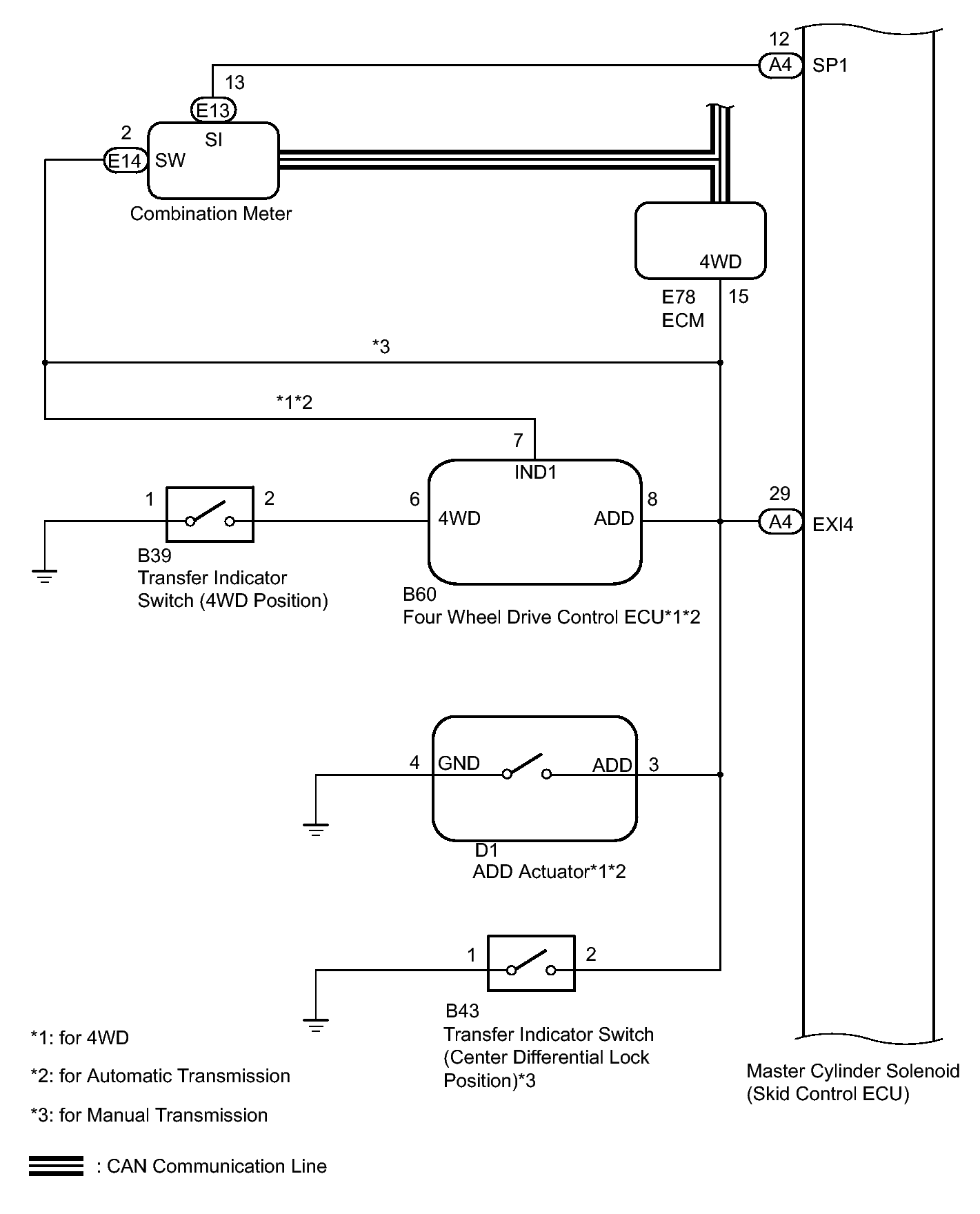

Fig 4: Vehicle Stability Control System Diagram (4 Of 5)
GTY365786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

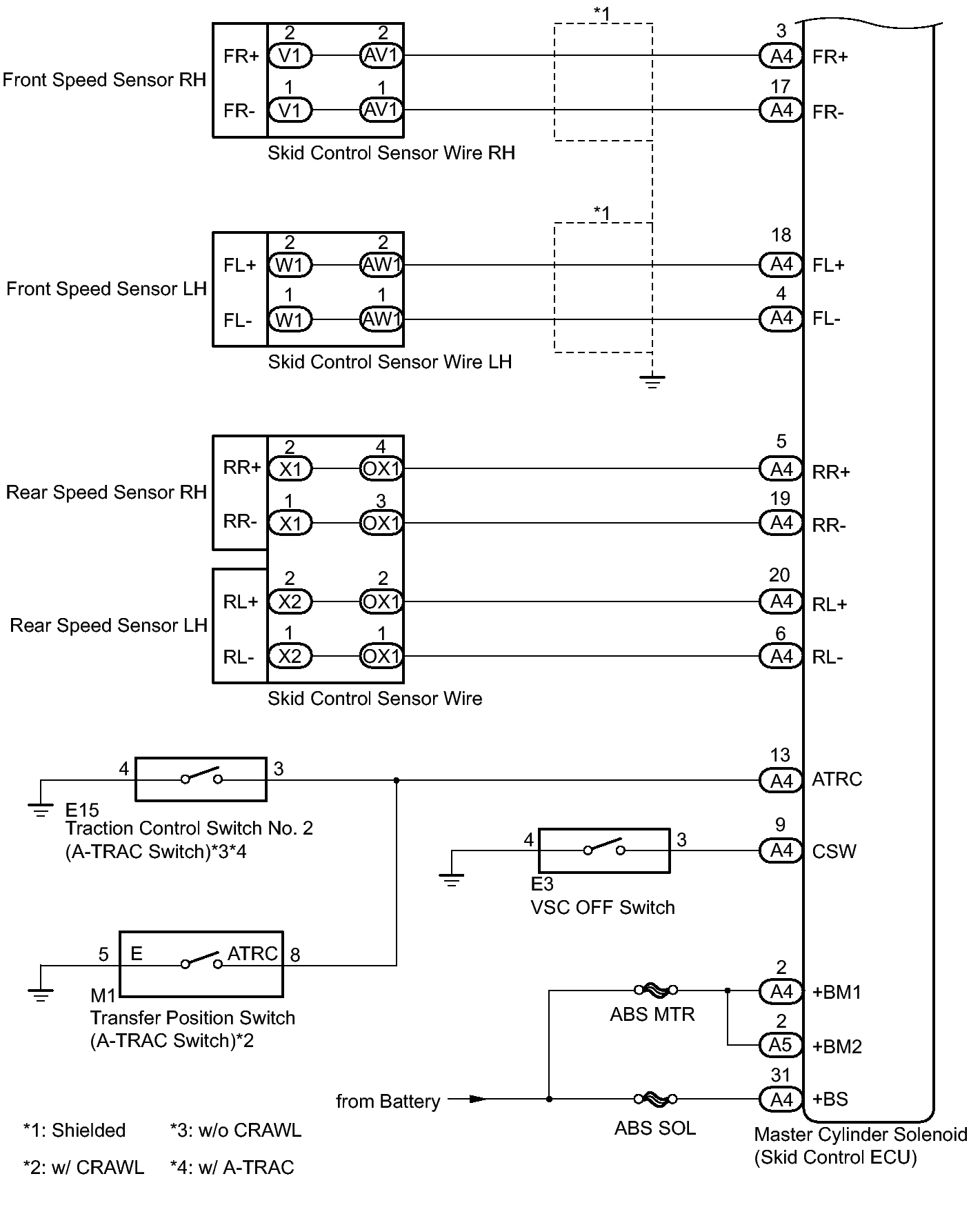

Fig 5: Vehicle Stability Control System Diagram (5 Of 5)
GTY371418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Transmitting ECU (Transmitter) Receiving ECU Signals Communication Method
ECM Skid control ECU
  • Engine speed signal
  • Accelerator pedal position signal
  • Intake air temperature signal
  • Shift position signal
  • TC terminal status
 CAN communication line
Skid control ECU ECM
  • Yaw rate and deceleration signal
  • VSC data signal
  • Wheel speed signal
 CAN communication line
Skid control ECU Combination meter
  • Warning/indicator light signal
  • Vehicle speed signal
 CAN communication line
Yaw rate and deceleration sensor Skid control ECU Yaw rate and deceleration signal CAN communication line
Steering angle sensor Skid control ECU Steering angle signal CAN communication line
Driving Support Switch Control ECU*1 Skid control ECU
  • Crawl control on SW signal
  • Crawl control mode SW signal
 CAN communication line
