Power Outlet (12V): Notes

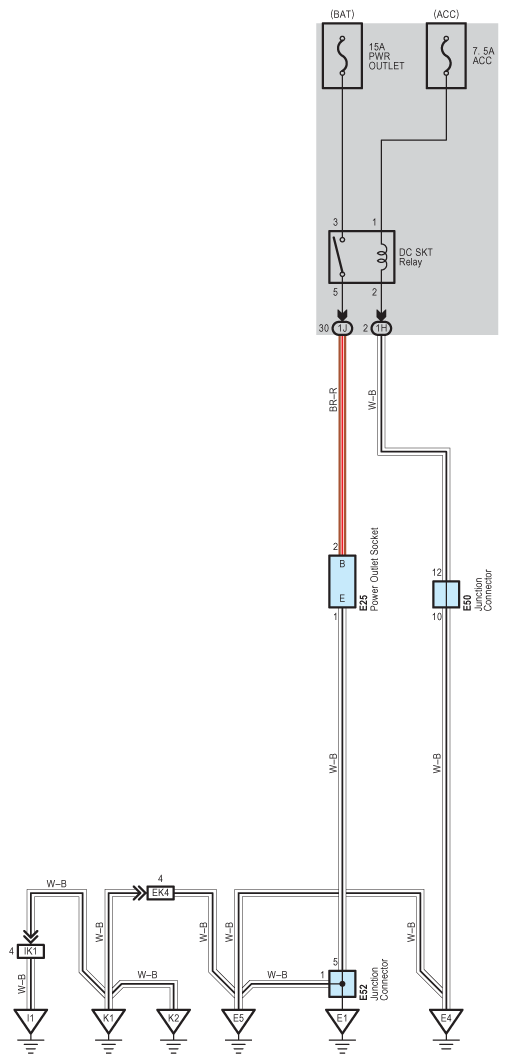

Fig 1: Power Outlet (12V) Wiring Diagram

G09097090

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
