Engine Coolant Temperature Sensor: Removal: Removal

REMOVE AIR CLEANER ASSEMBLY WITH HOSE
Refer to REMOVAL
REMOVE ENGINE COOLANT TEMPERATURE SENSOR
1. Disconnect the engine coolant temperature sensor connector.

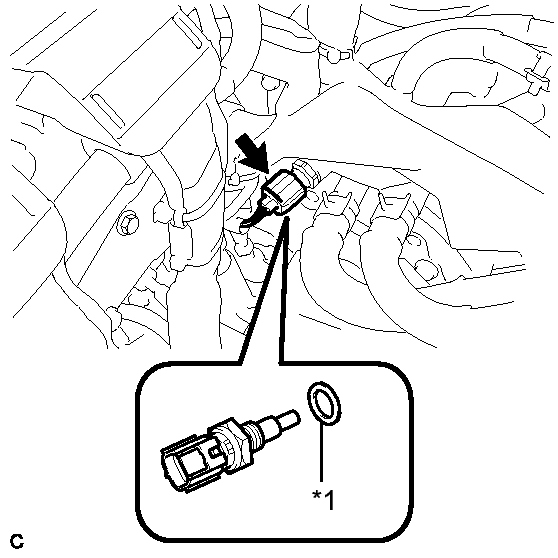

  Fig 1: Identifying Engine Coolant Temperature Sensor And Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the engine coolant temperature sensor and gasket.
  TEXT IN ILLUSTRATION

  *1 Gasket
