Mass Air Flow Meter: Installation: Installation

  1. INSTALL MASS AIR FLOW METER
    1. Install the mass air flow meter with the 2 screws.

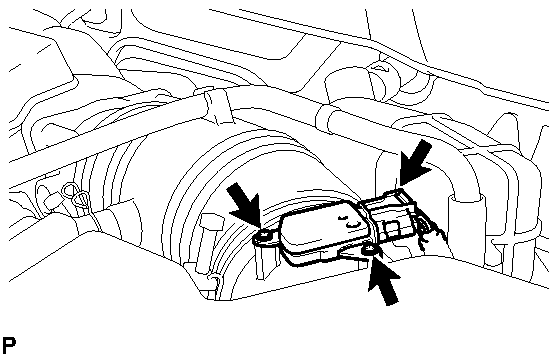

      Fig 1: Identifying Mass Air Flow Meter Screws
      GTY193970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the mass air flow meter connector.
