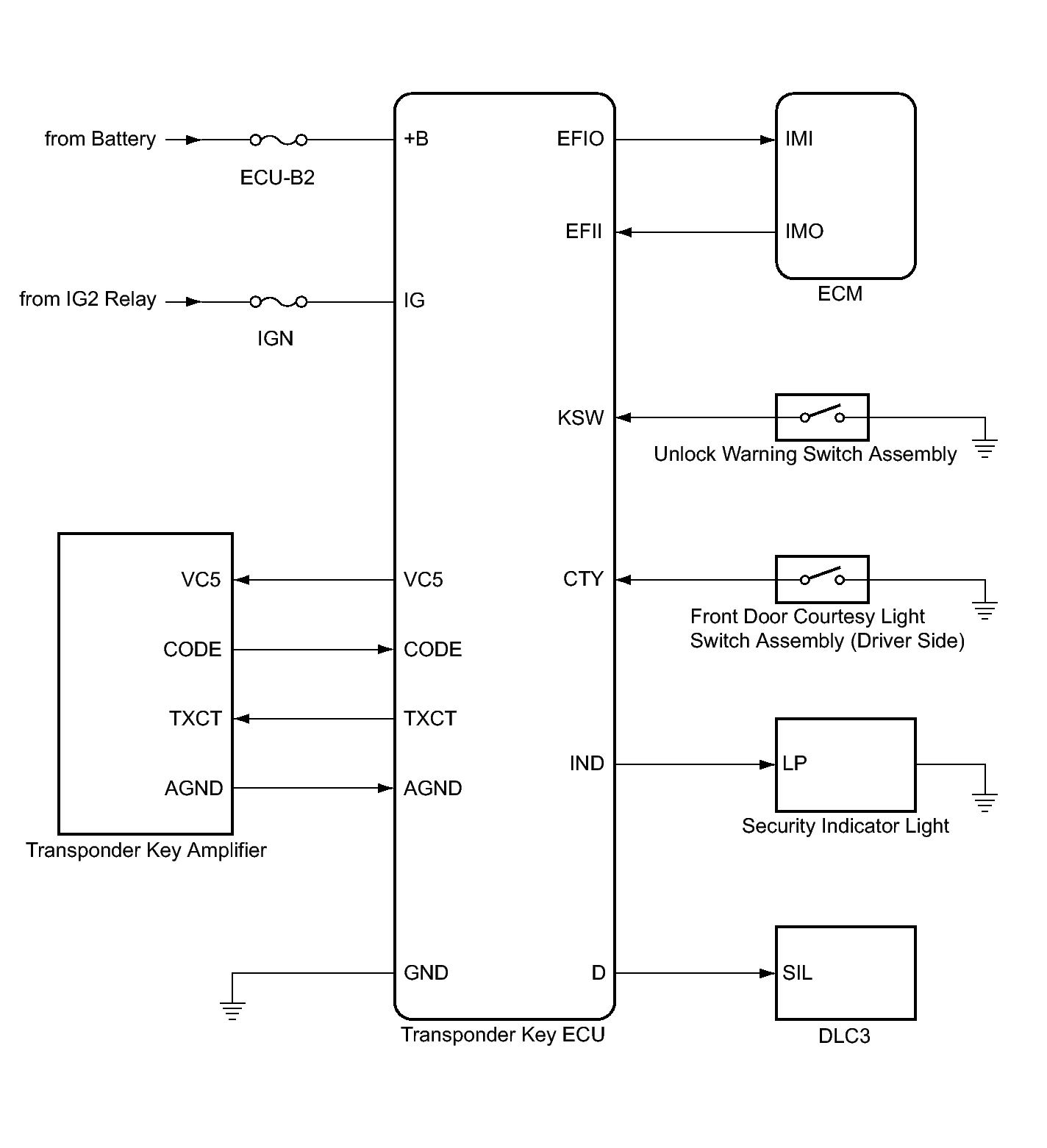

Home › Toyota › 2013 › Matrix Base, Automatic Trans › Repair and Diagnosis › Body & Frame › Door Locks › Engine Immobiliser System (Diagnostics - Introduction) › Engine Immobiliser System › System Diagram › System Diagram
