Combination Meter: Notes

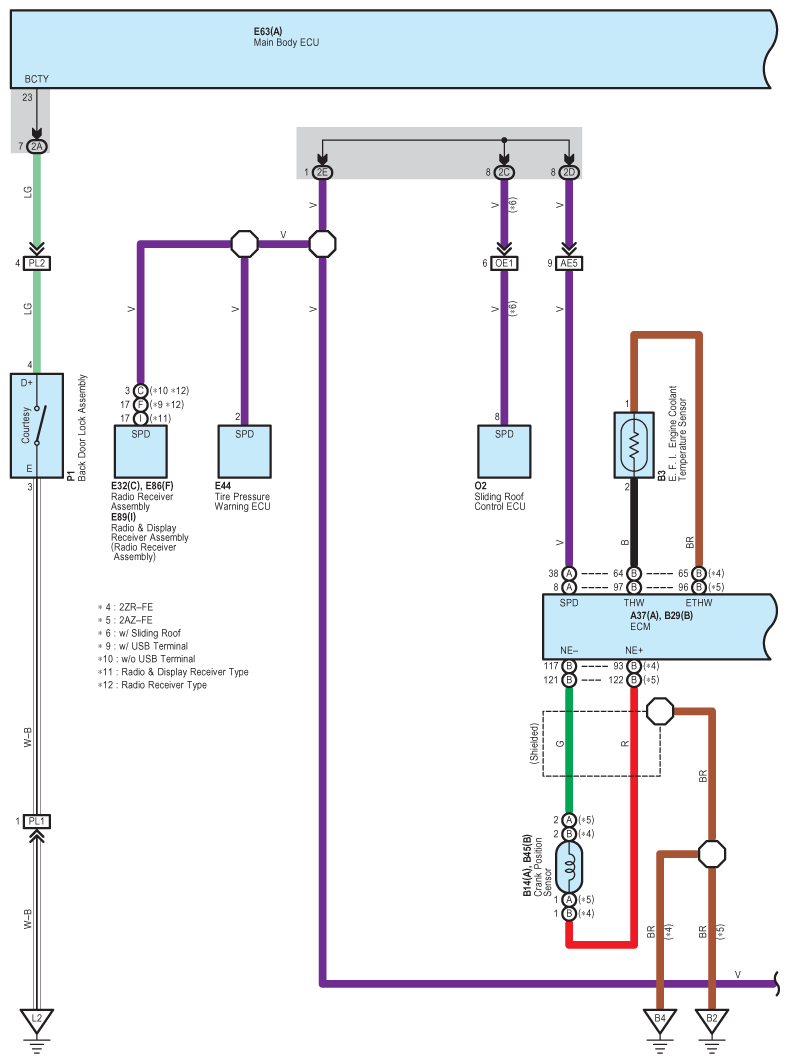

Fig 1: Combination Meter Wiring Diagram (1 Of 6)

G09105968

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

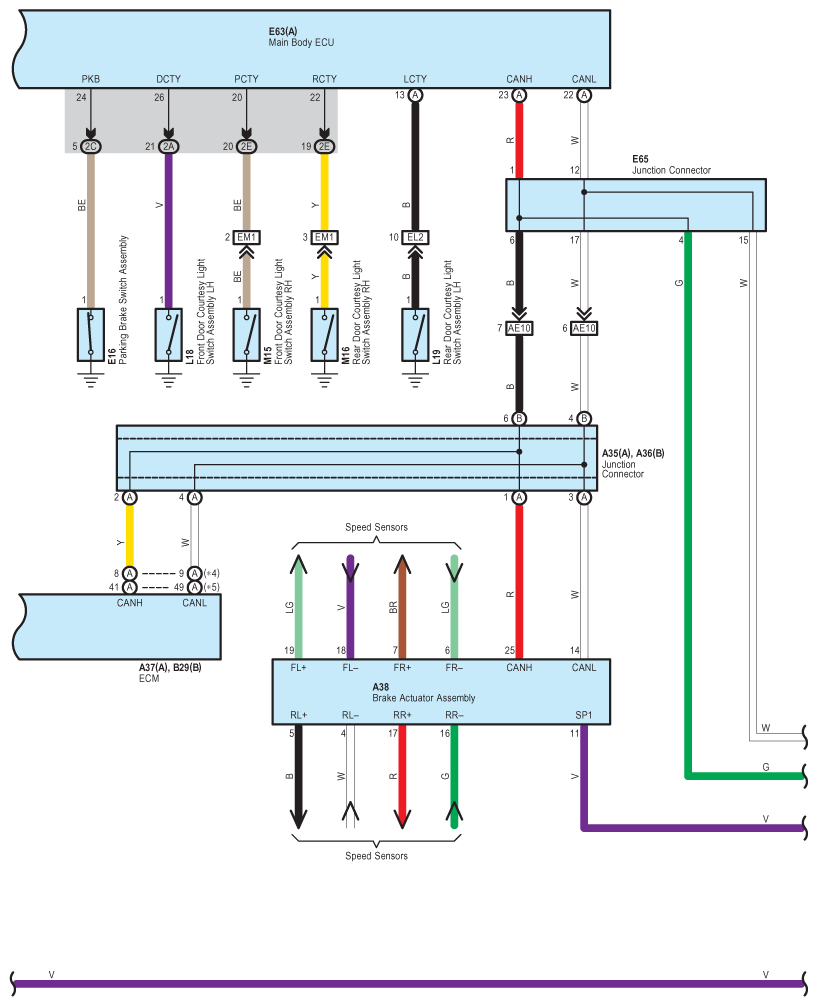

Fig 2: Combination Meter Wiring Diagram (2 Of 6)

G09105969

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

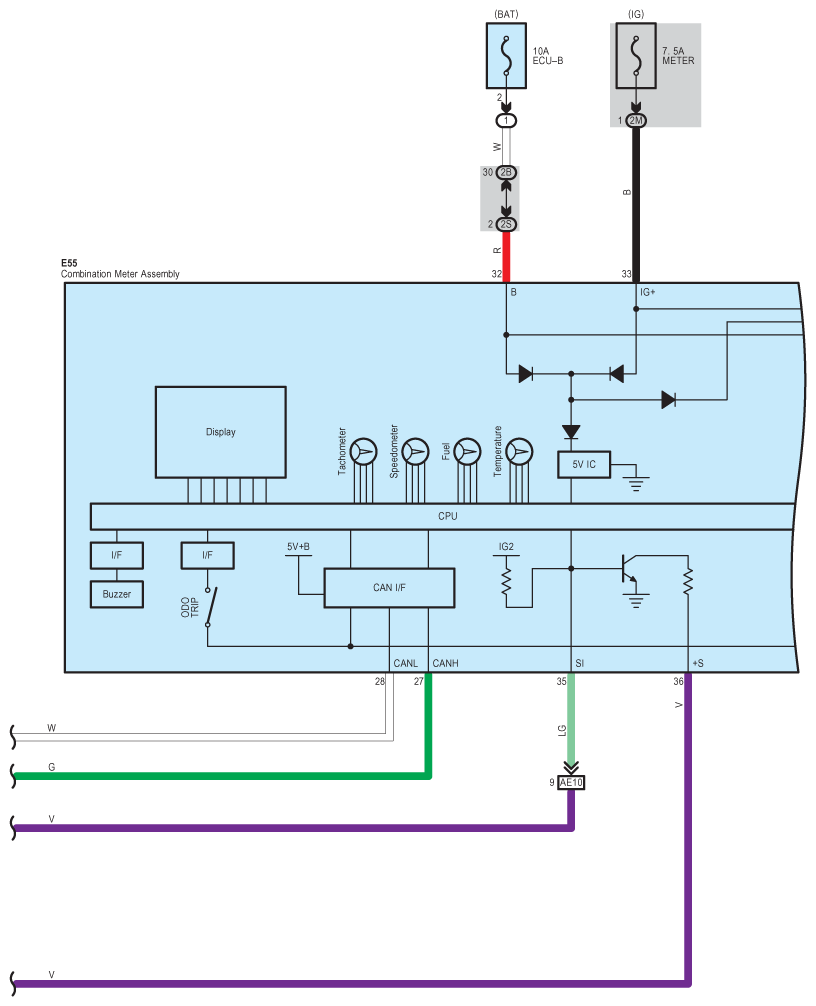

Fig 3: Combination Meter Wiring Diagram (3 Of 6)

G09105970

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

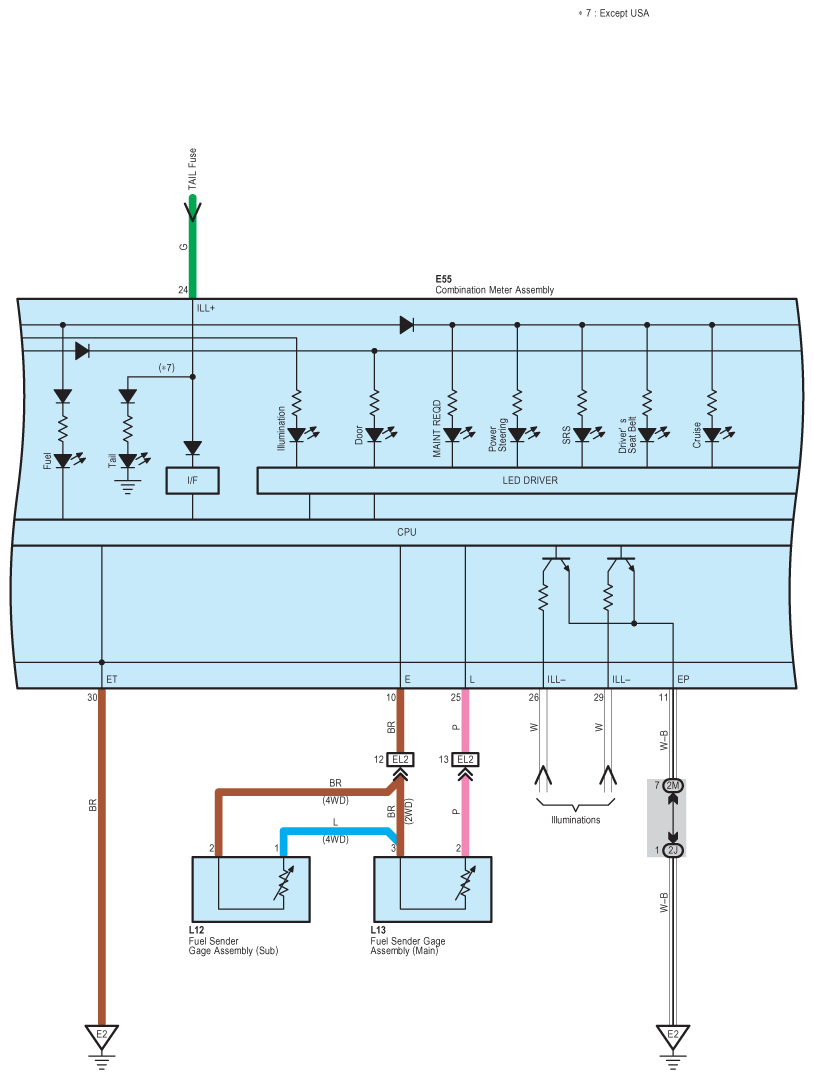

Fig 4: Combination Meter Wiring Diagram (4 Of 6)

G09105971

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

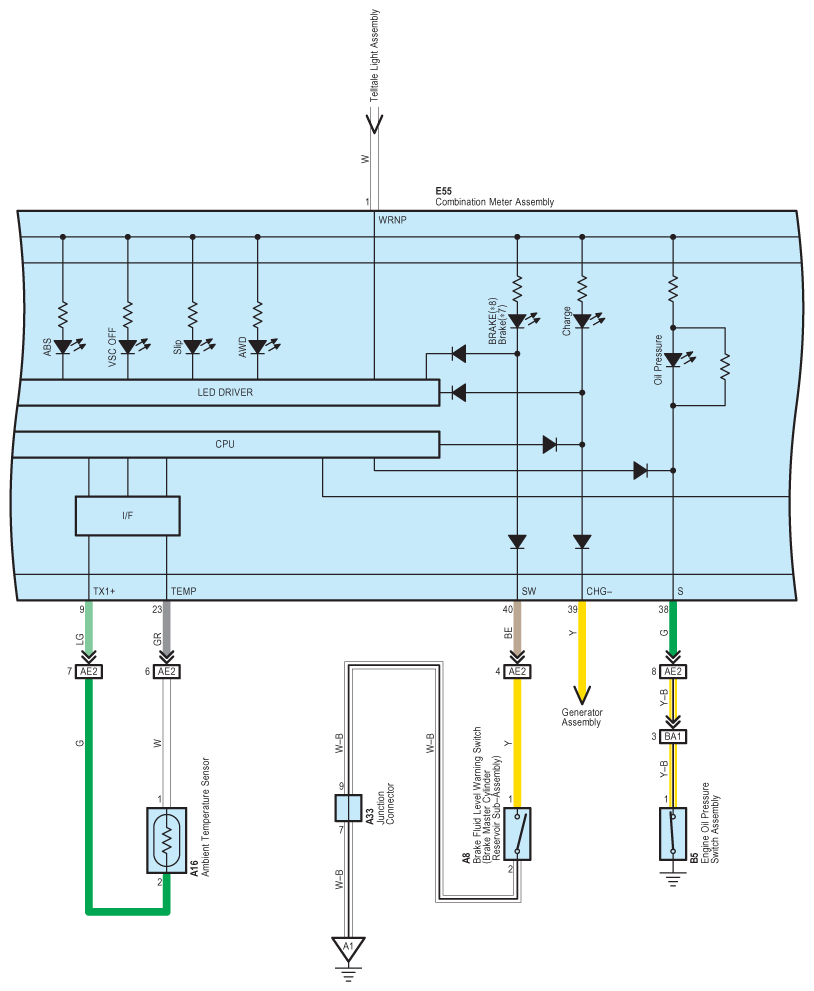

Fig 5: Combination Meter Wiring Diagram (5 Of 6)

G09105972

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

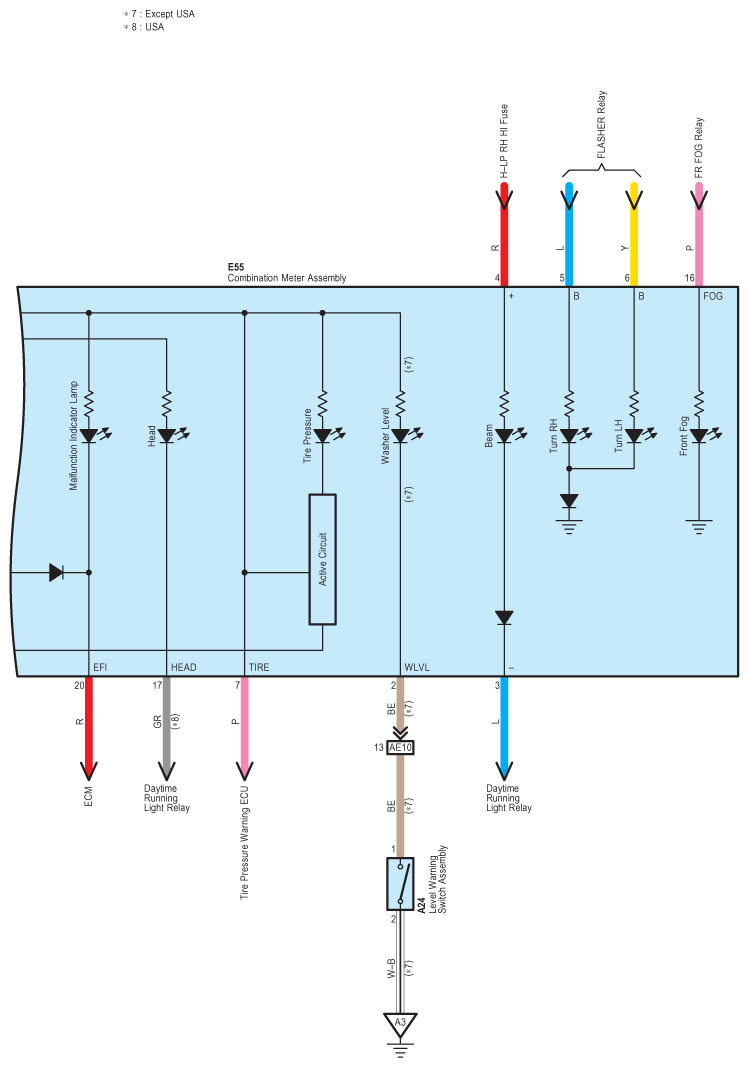

Fig 6: Combination Meter Wiring Diagram (6 Of 6)

G09105973

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
