Front Fog Light
›
Notes
Front Fog Light: Notes

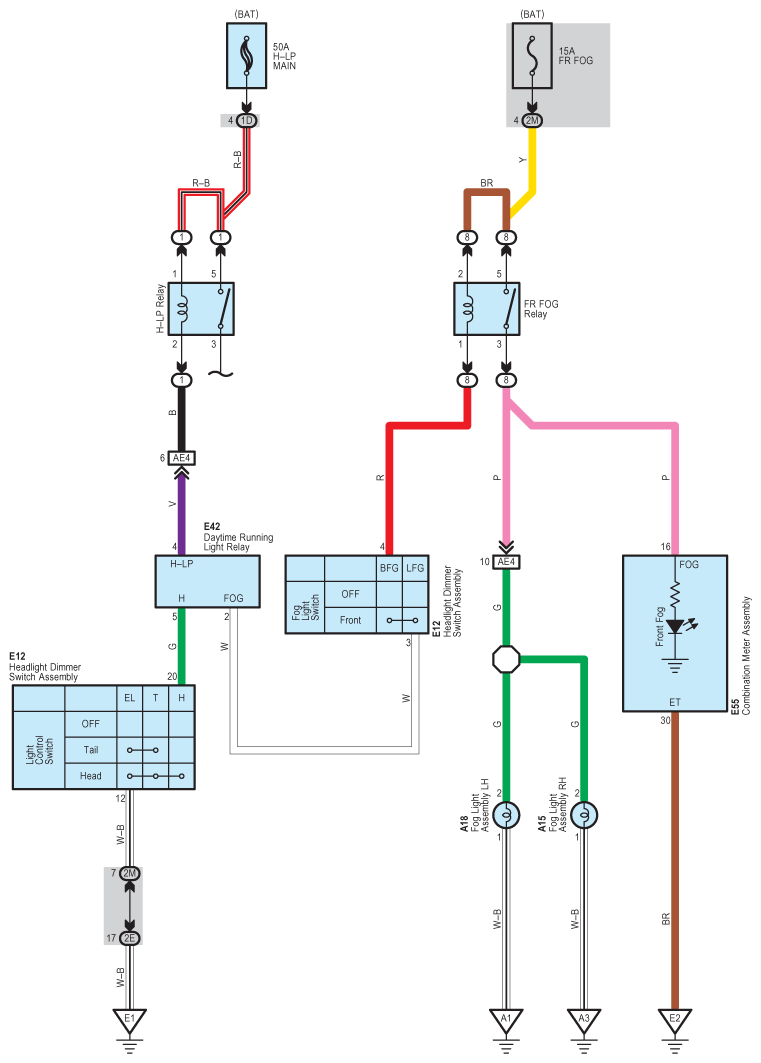

Fig 1: Front Fog Light Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
