OEM System Circuits: Ignition: Notes

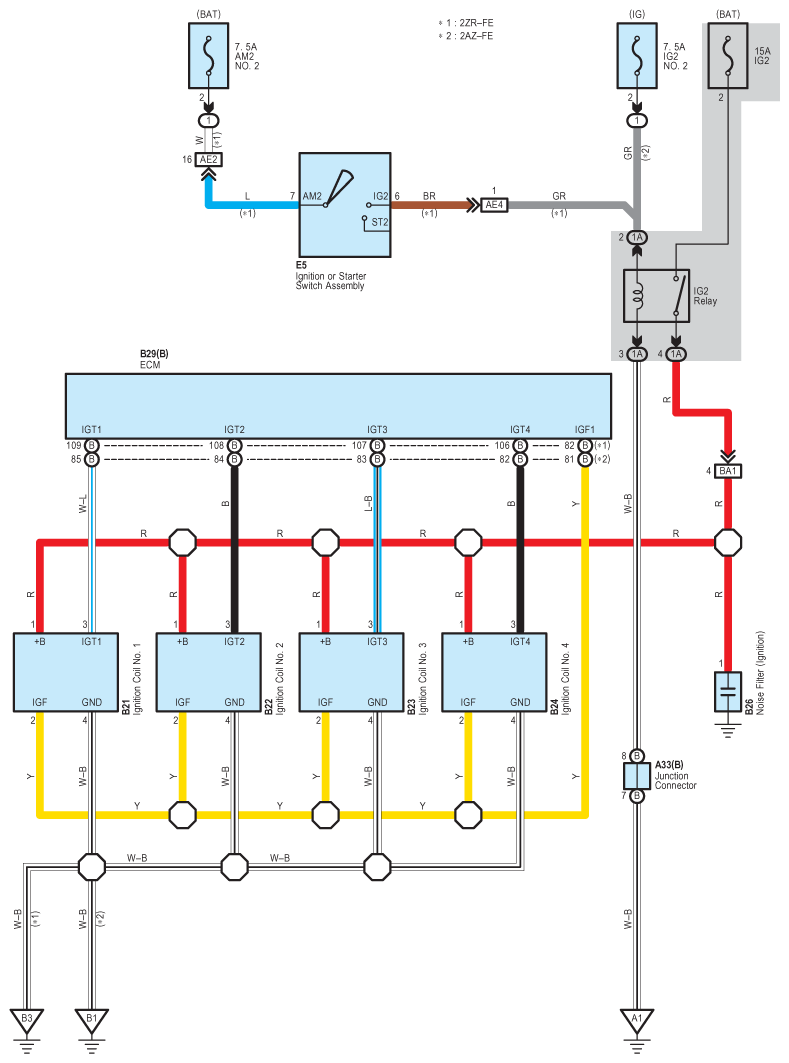

Fig 1: Ignition Wiring Diagram

G09105836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
