Power Outlet (115V): Notes

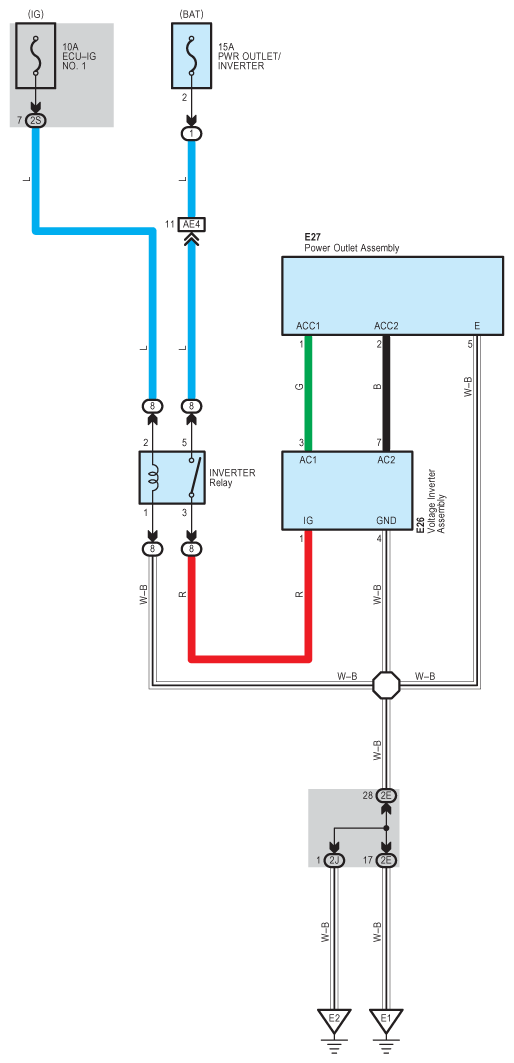

Fig 1: Power Outlet (115V) Wiring Diagram

G09105959

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
