Power Window: Notes

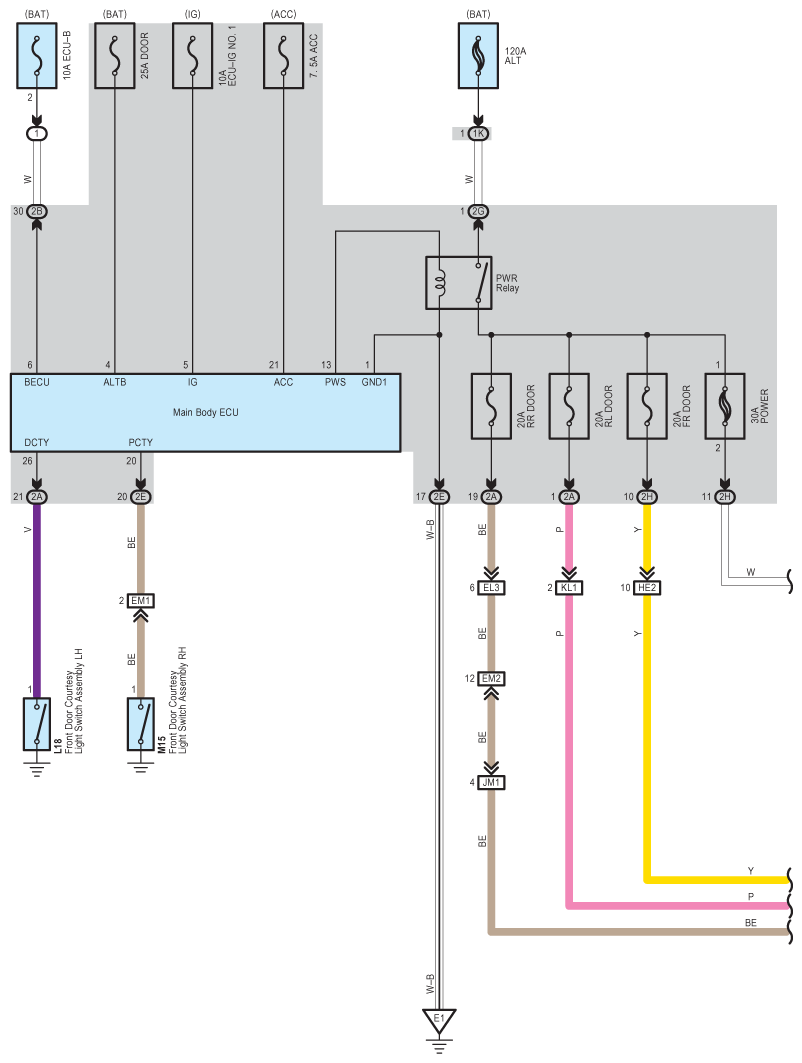

Fig 1: Power Window Wiring Diagram (1 Of 3)
G09105884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

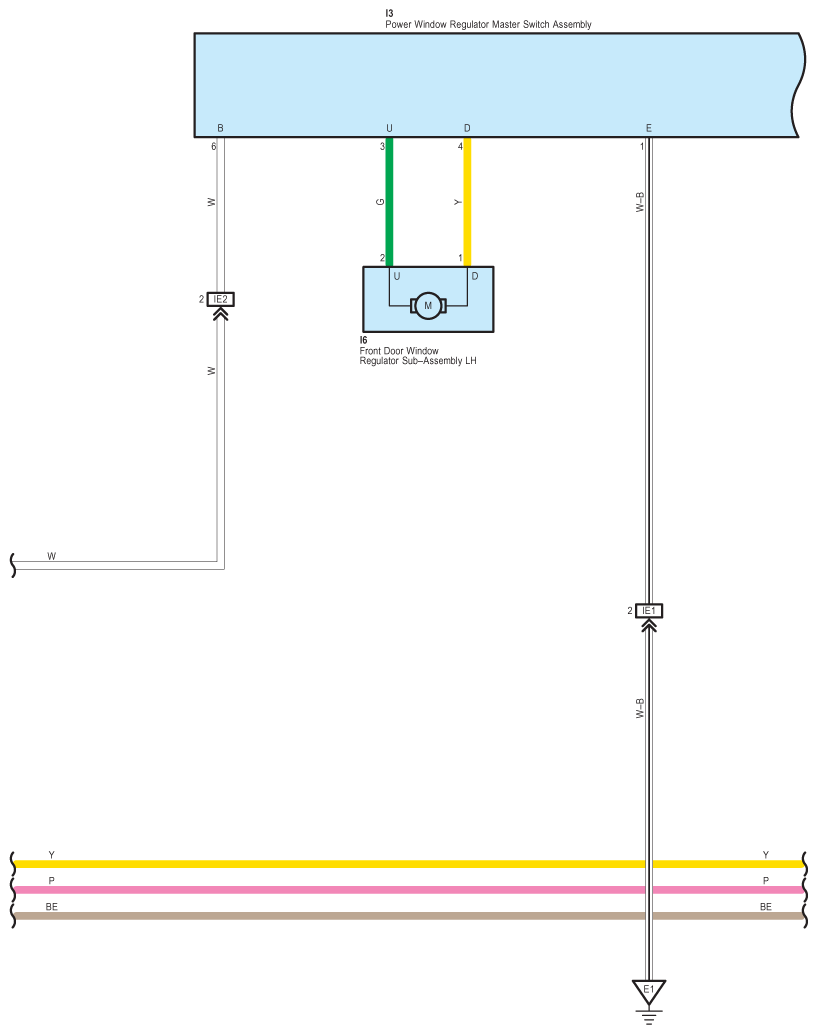

Fig 2: Power Window Wiring Diagram (1 Of 3)
G09105885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

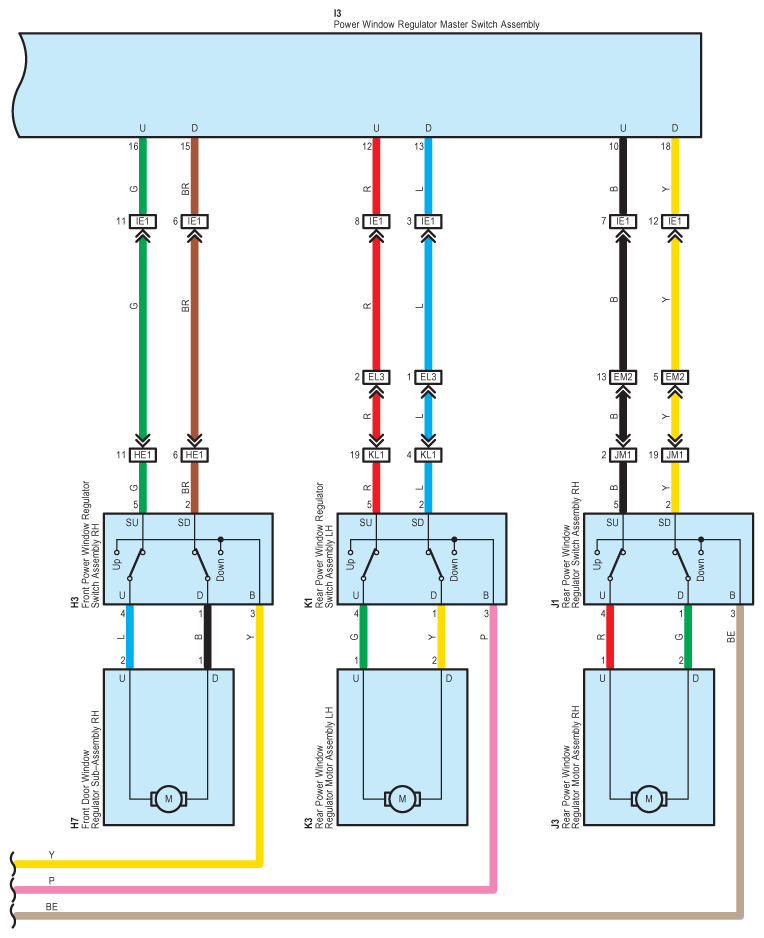

Fig 3: Power Window Wiring Diagram (1 Of 3)
G09105886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
