Stop Light: Notes

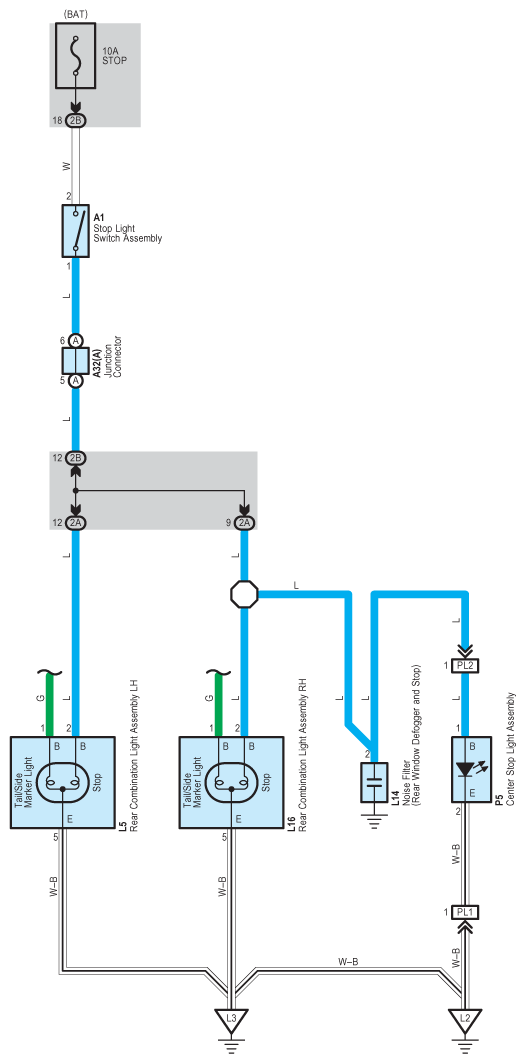

Fig 1: Stop Light Wiring Diagram

G09105878

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
