System Diagram

WARNING: This page is about a different variant/trim than selected.

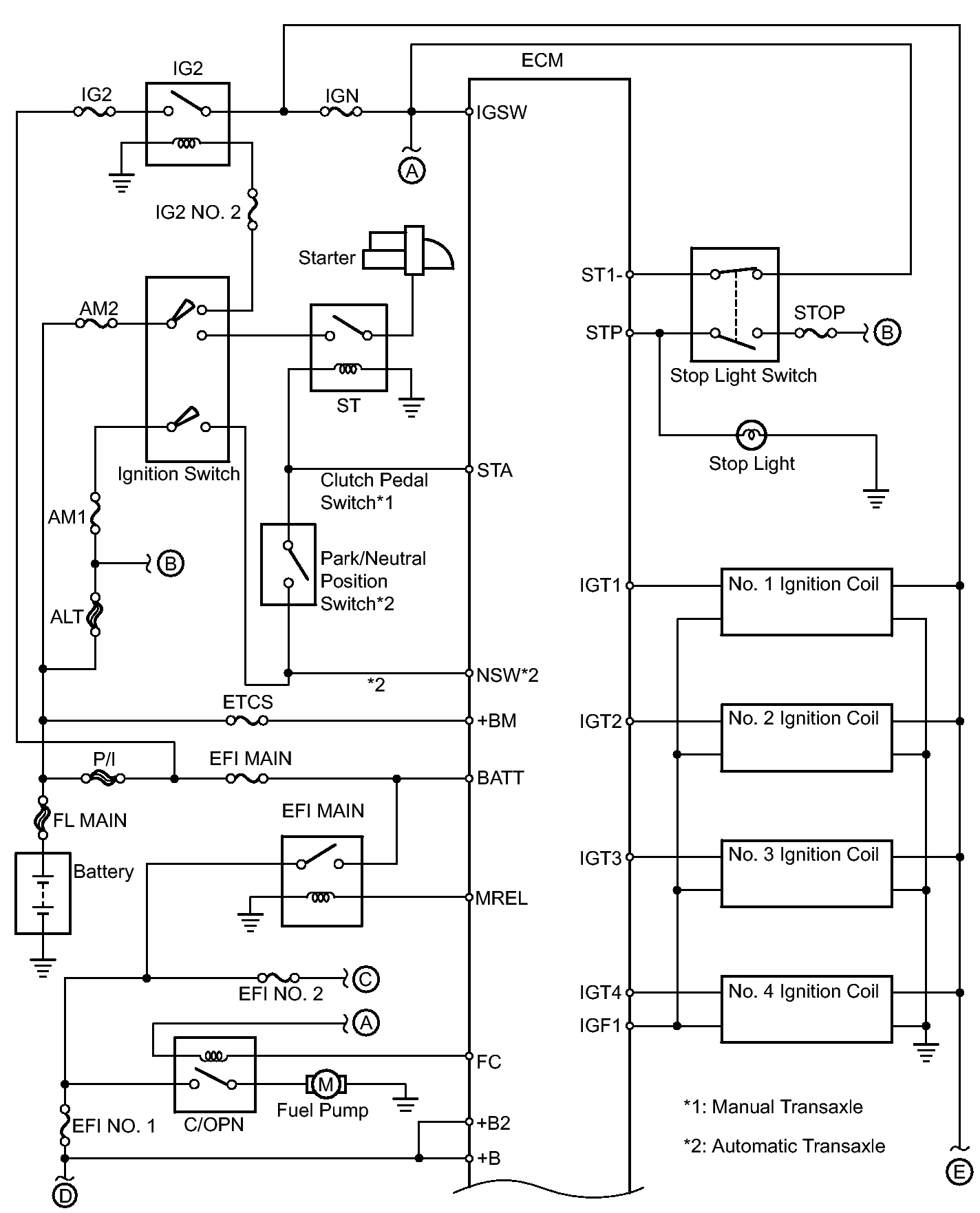

Fig 1: SFI System Circuit Diagram (1 Of 3)
GTY380504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

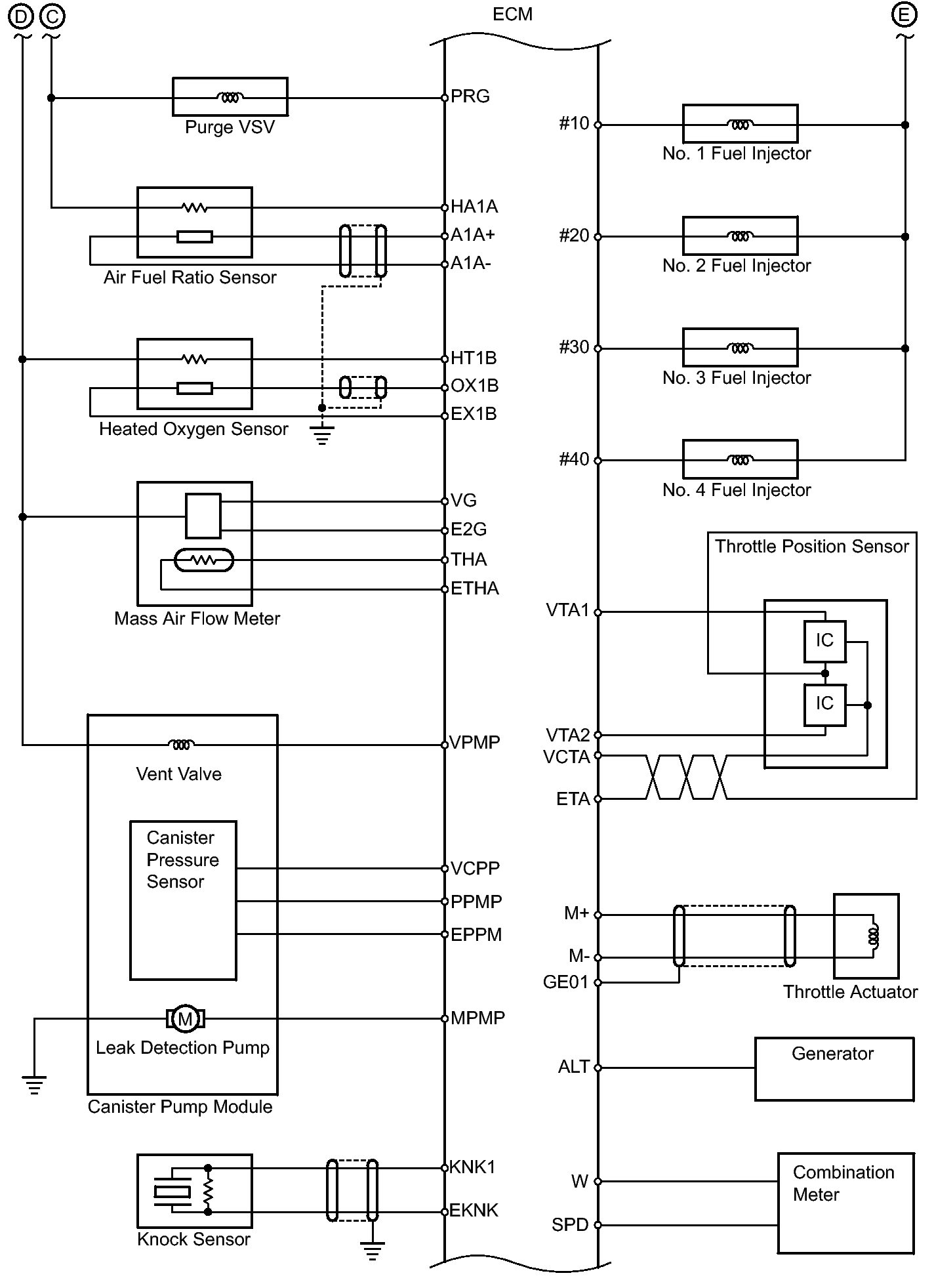

Fig 2: SFI System Circuit Diagram (2 Of 3)
GTY367881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

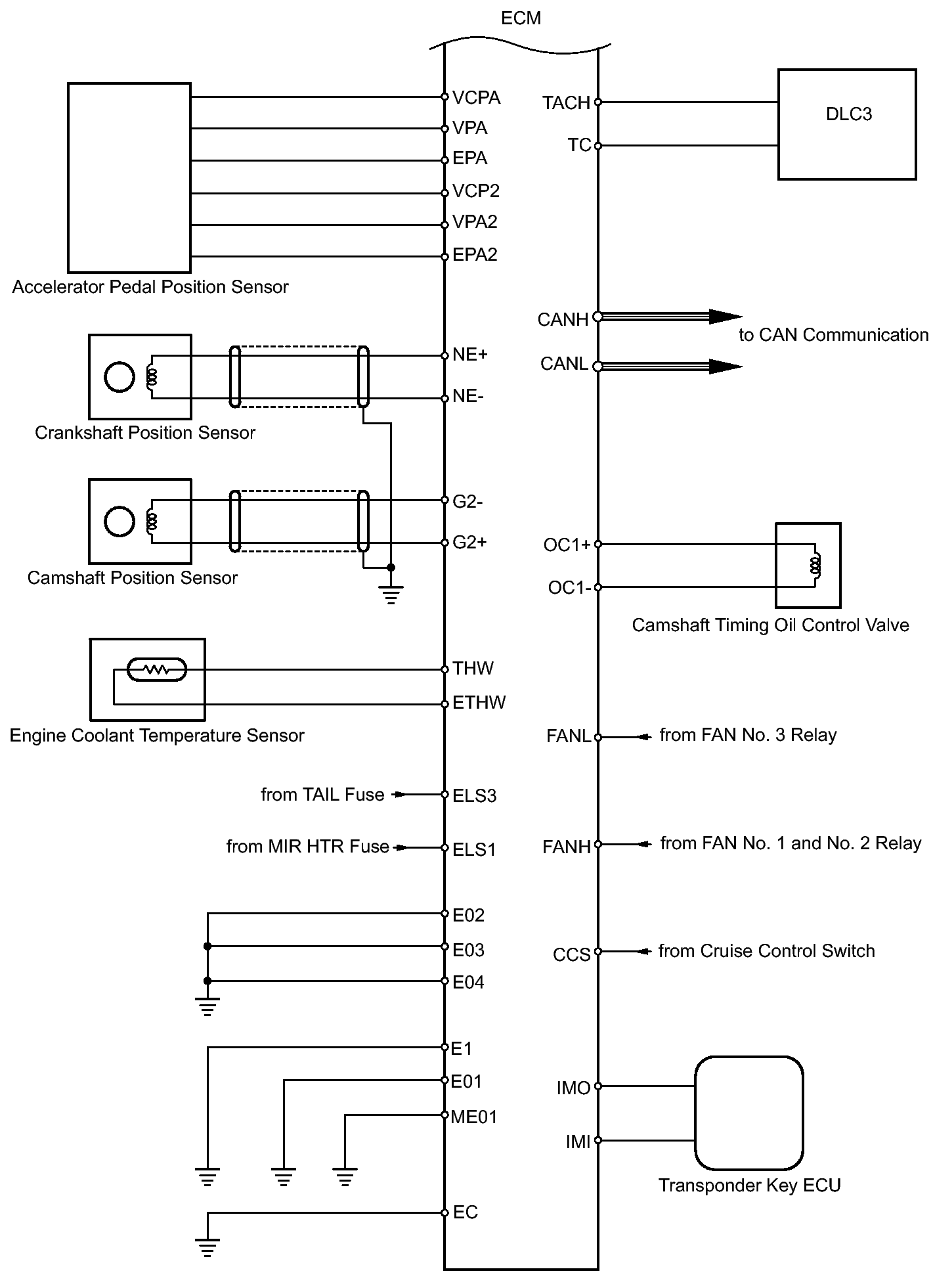

Fig 3: SFI System Circuit Diagram (3 Of 3)
GTY381226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
