Transmission Control Cable: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

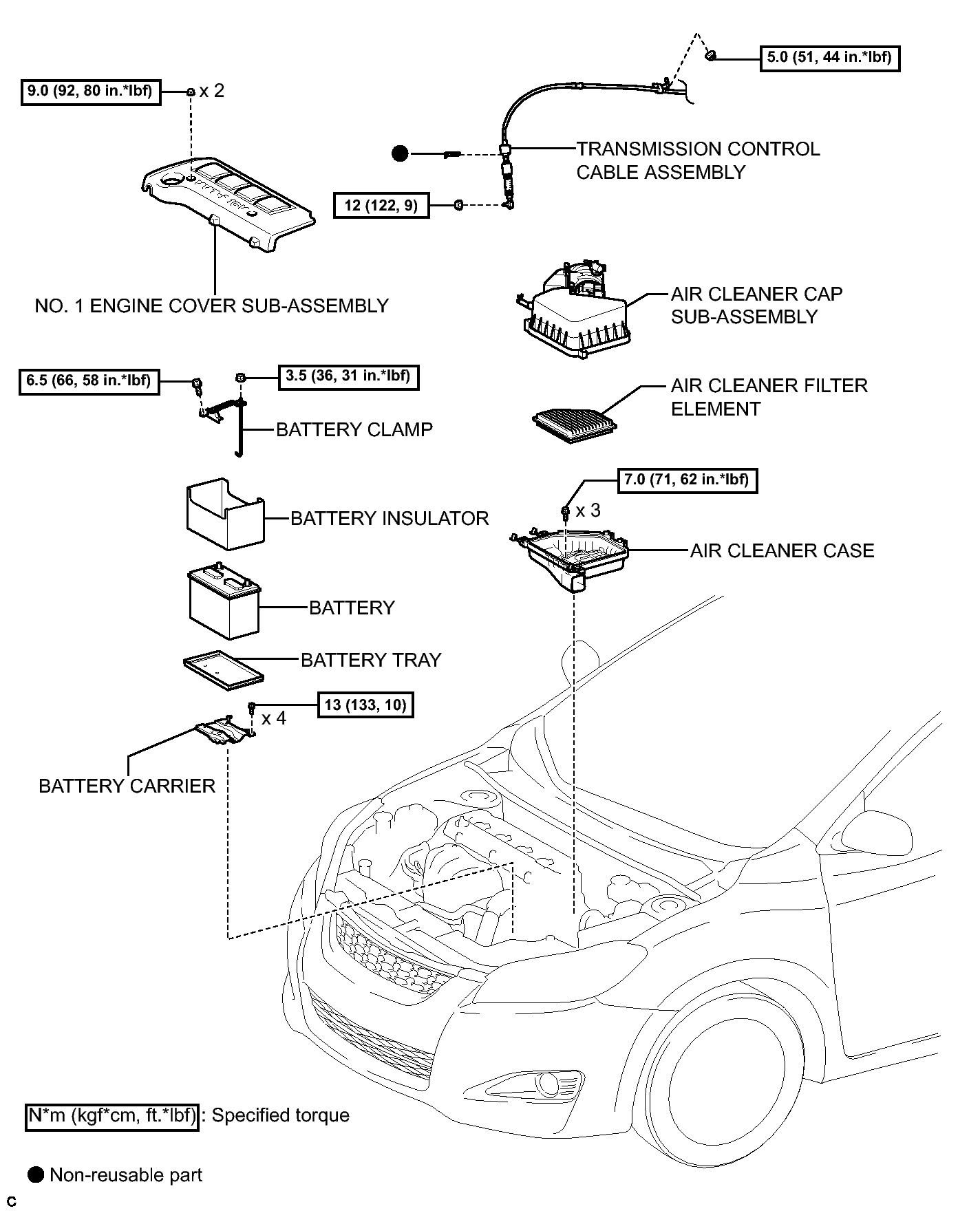

Fig 1: Identifying Transmission Control Cable Replacement Components With Torque Specification (1 Of 2)
GTY245226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

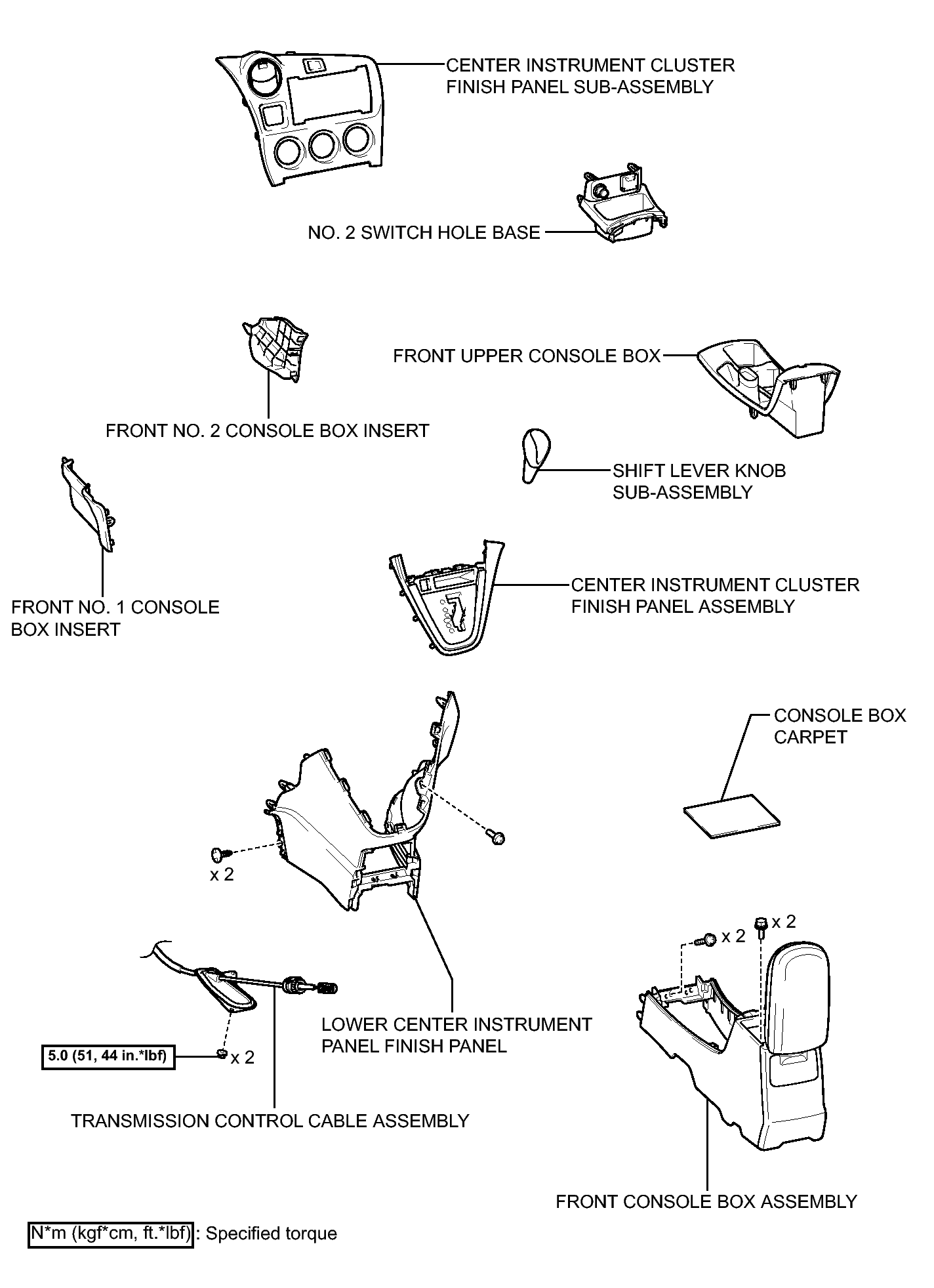

Fig 1: Identifying Transmission Control Cable Replacement Components With Torque Specifications (2 Of 2)
GTY244889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
