Heated Oxygen Sensor: Components: Illustration

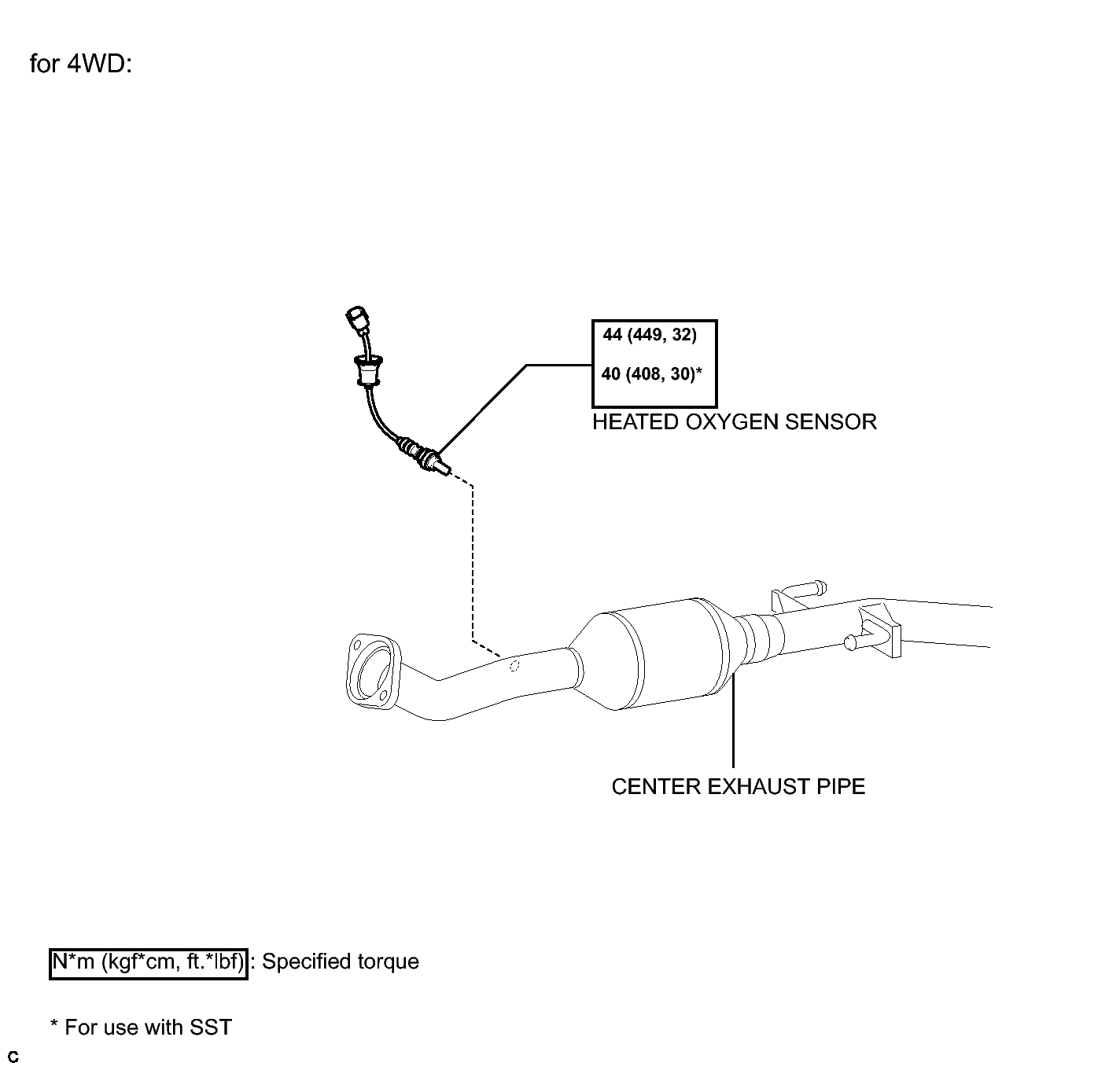

Fig 1: Identifying Heated Oxygen Sensor Replacement Components With Torque Specifications (For 4WD) (1 Of 2)
GTY238225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

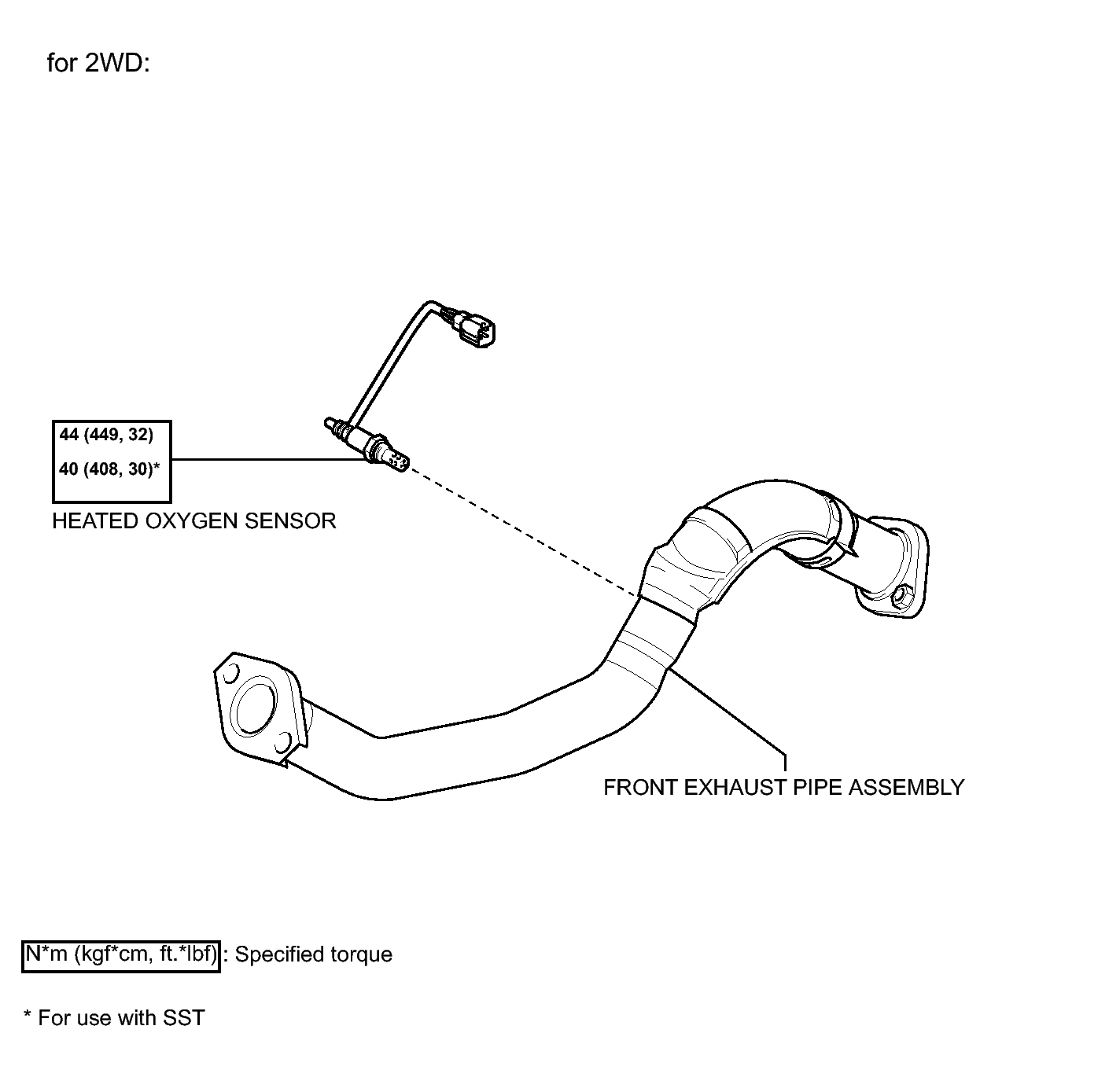

Fig 1: Identifying Heated Oxygen Sensor Replacement Components With Torque Specifications (For 2WD) (2 Of 2)
GTY238239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
