Parts Location: Illustration

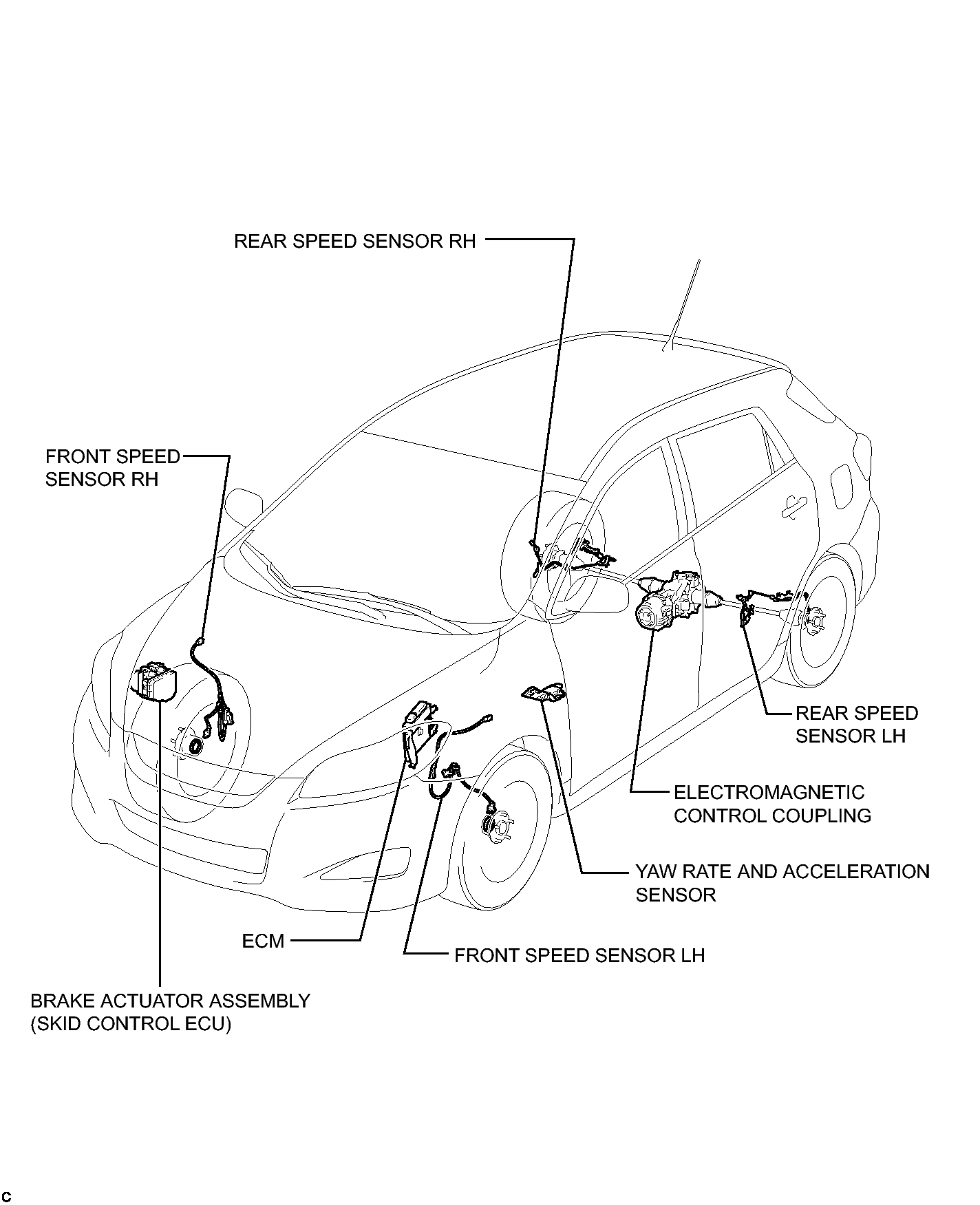

Fig 1: Active Torque Control Component Location (4WD) (1 Of 2)
GTY383554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

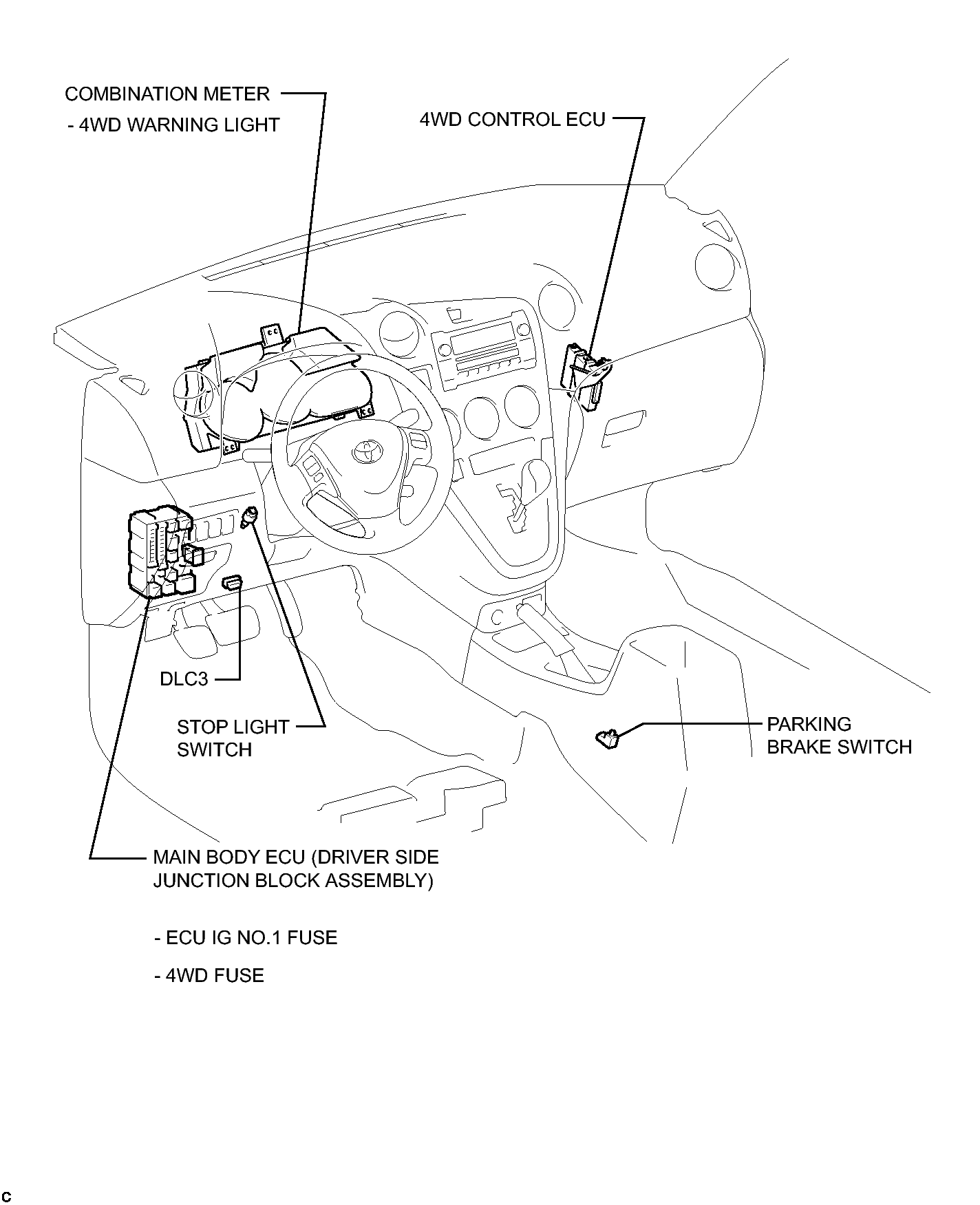

Fig 1: Active Torque Control Component Location (4WD) (2 Of 2)
GTY365704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
