Cruise Control Systems
›
Cruise Control System (Diagnostics - Introduction)
›
Cruise Control System
›
System Diagram
›
System Diagram
System Diagram

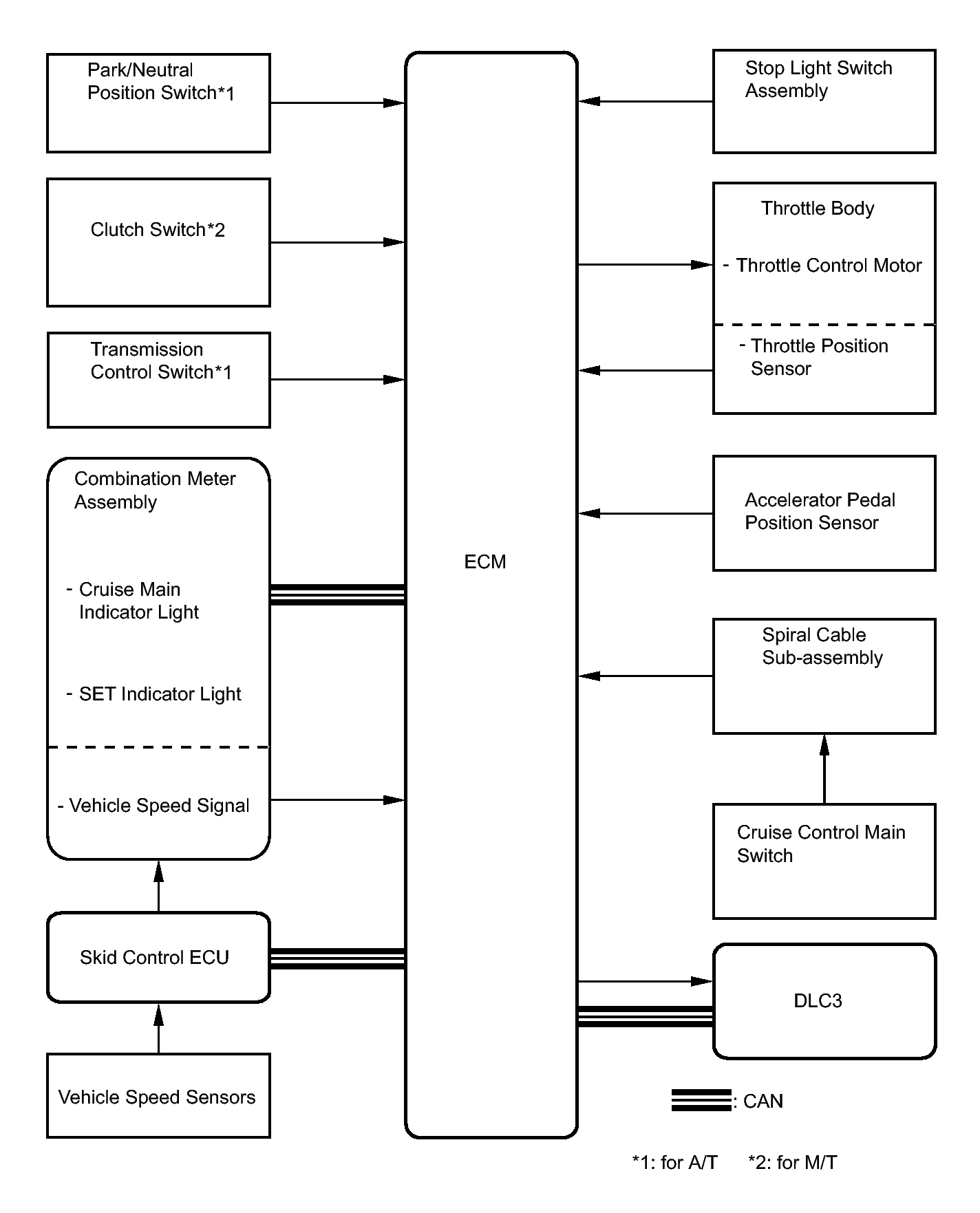

Fig 1: Cruise Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE
Sender
Receiver
Signal
Line
ECM
Combination Meter ECU
Cruise main indicator operation signal
CAN
