Ground Point: Notes — 2013 Toyota Prius C Service Manual ~ FixVault

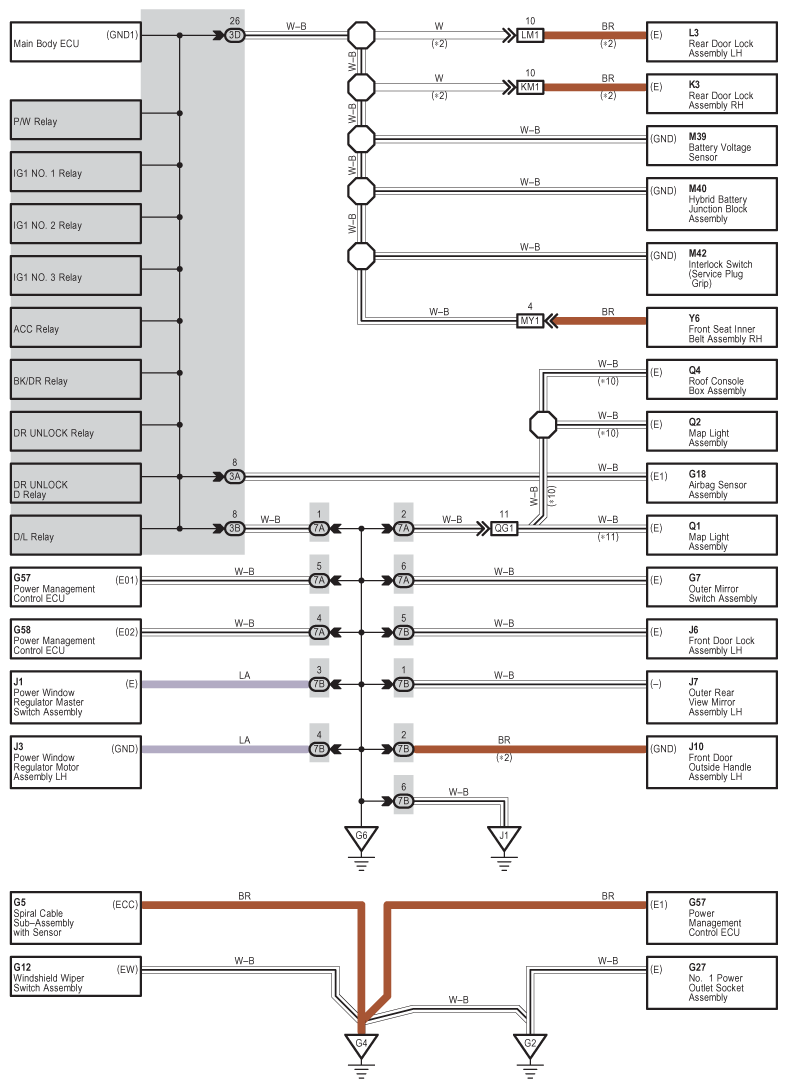

Fig 1: Ground Point Electrical-Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

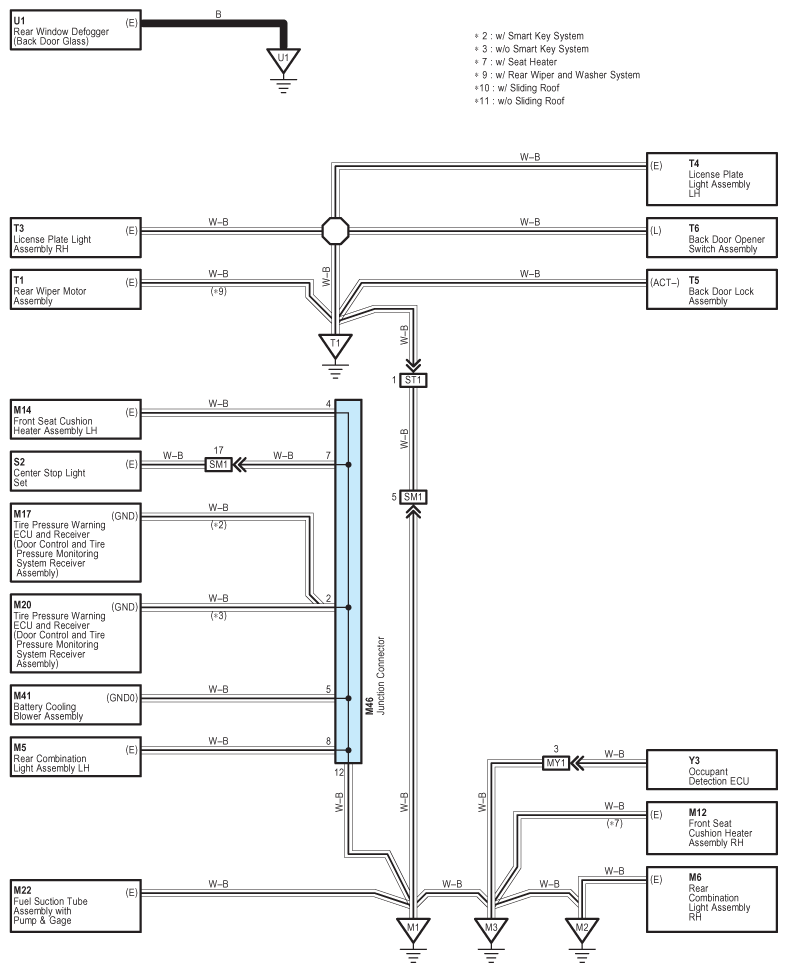

Fig 2: Ground Point Electrical-Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

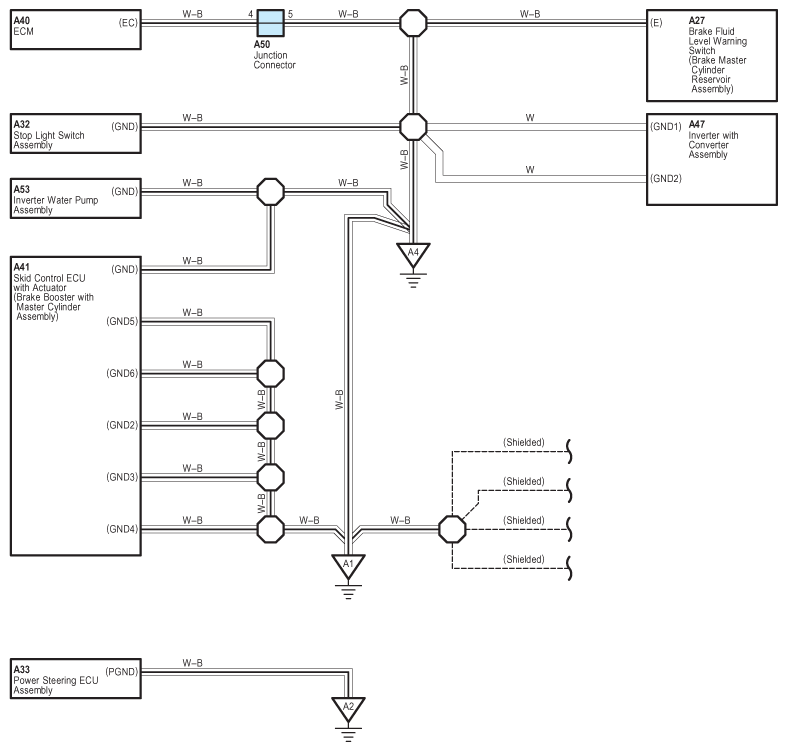

Fig 3: Ground Point Electrical-Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

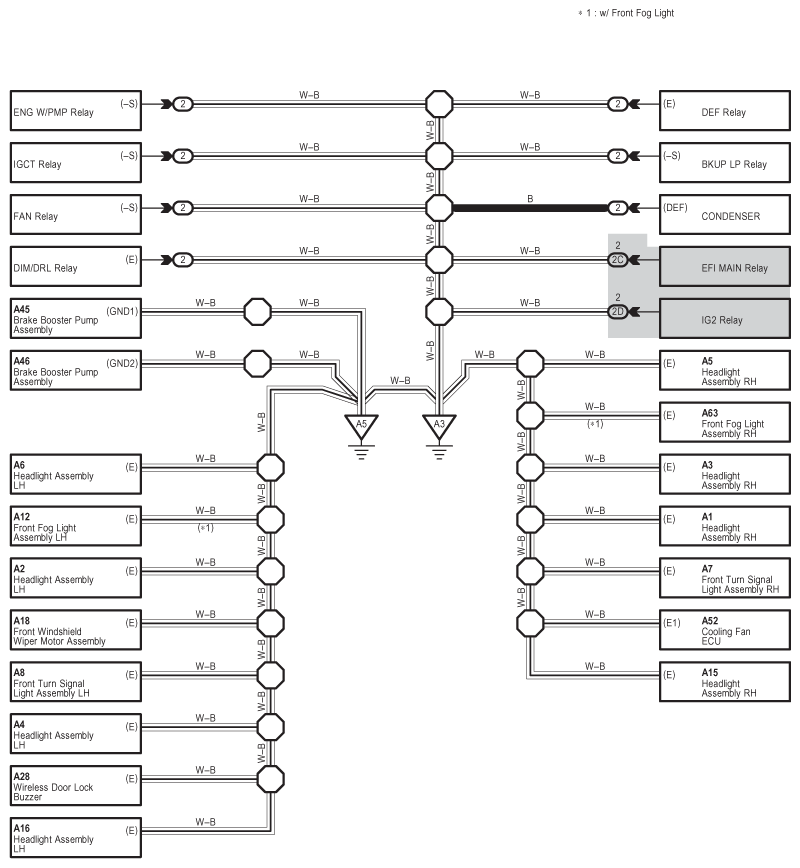

Fig 4: Ground Point Electrical-Wiring Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

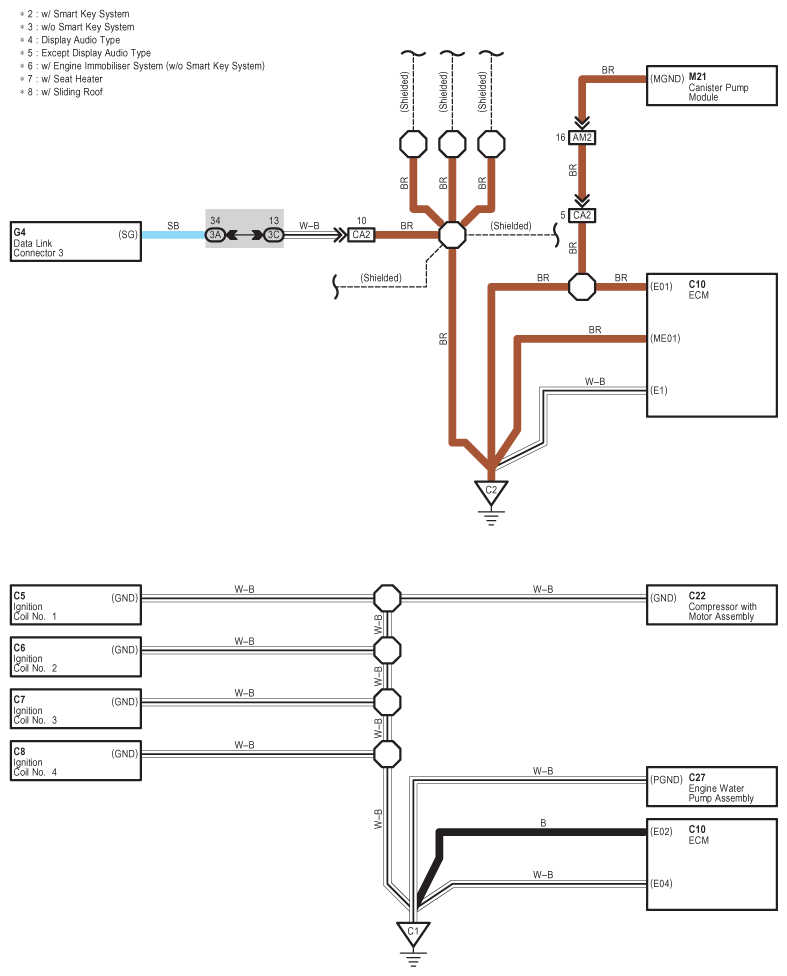

Fig 5: Ground Point Electrical-Wiring Diagram (5 Of 6)

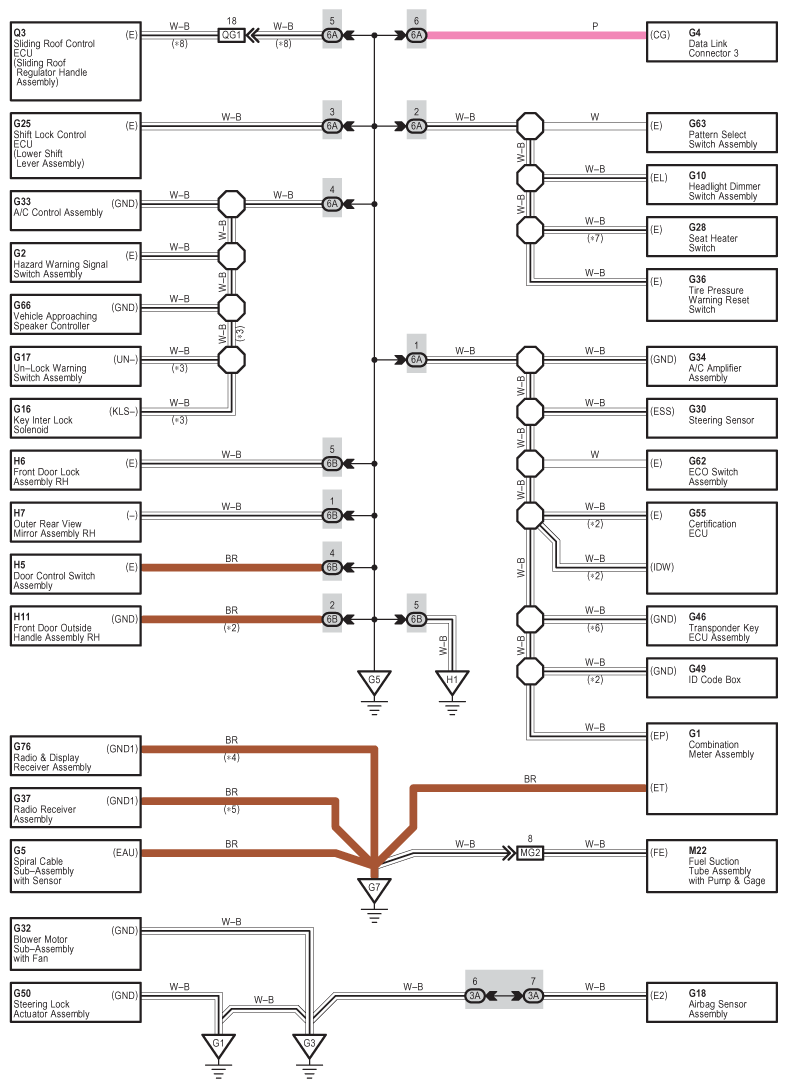

Fig 6: Ground Point Electrical-Wiring Diagram (6 Of 6)
