Air Conditioning: Notes

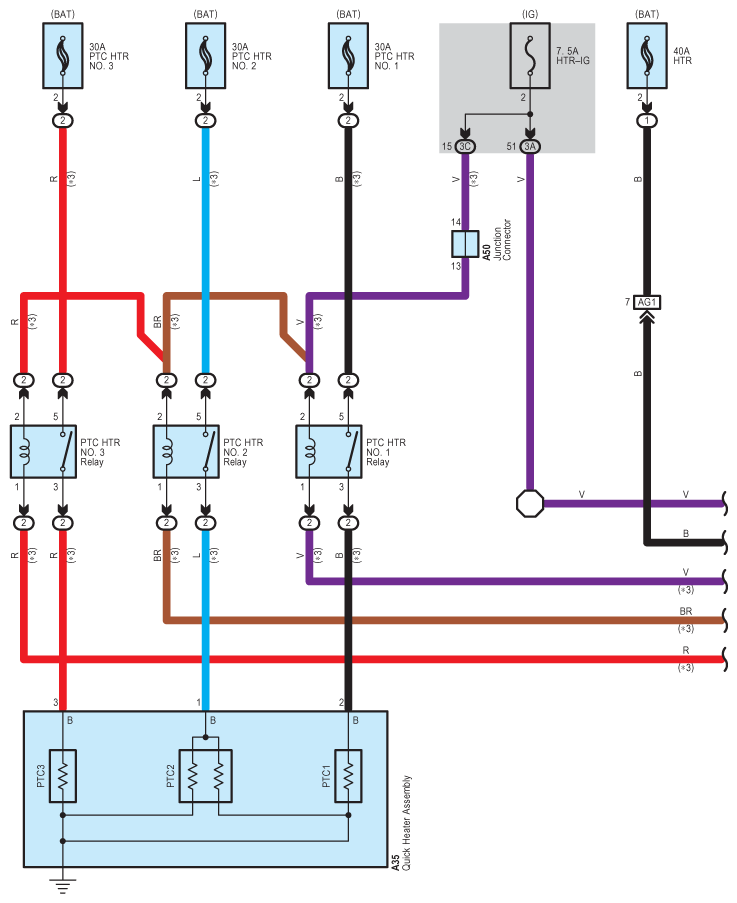

Fig 1: Air Conditioning Wiring Diagram (1 Of 9)

G09101195

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

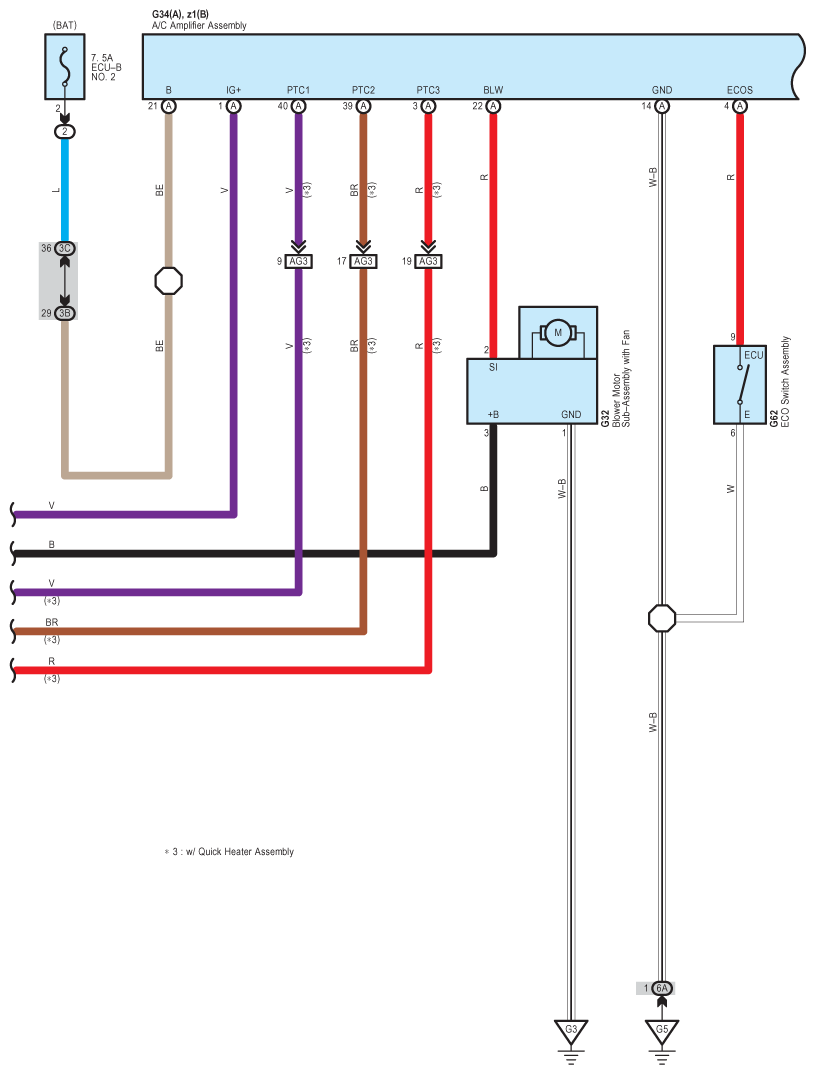

Fig 2: Air Conditioning Wiring Diagram (2 Of 9)

G09101196

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

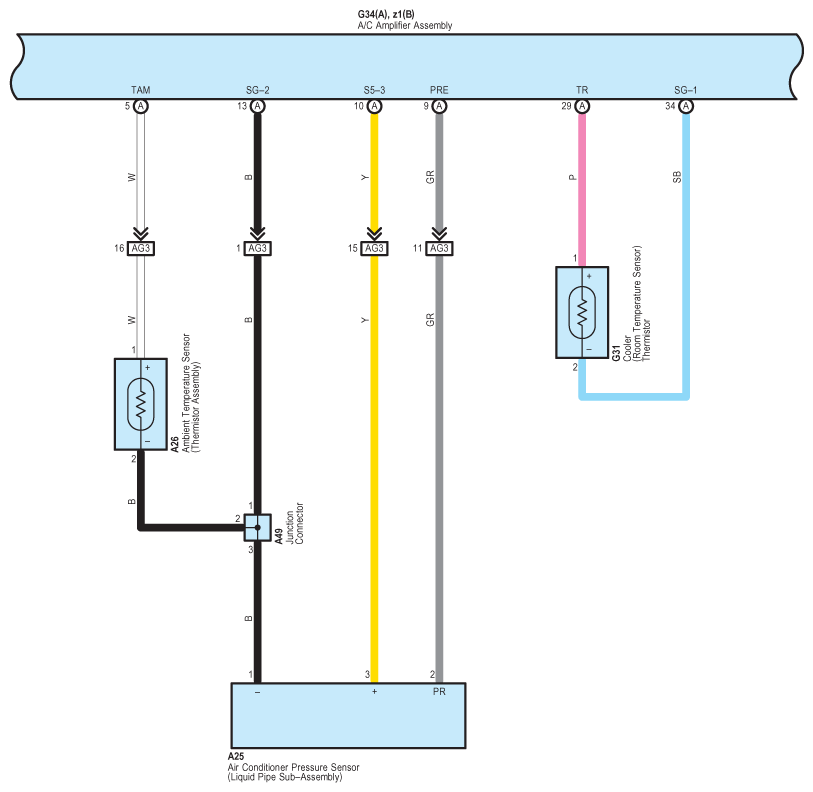

Fig 3: Air Conditioning Wiring Diagram (3 Of 9)

G09101197

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

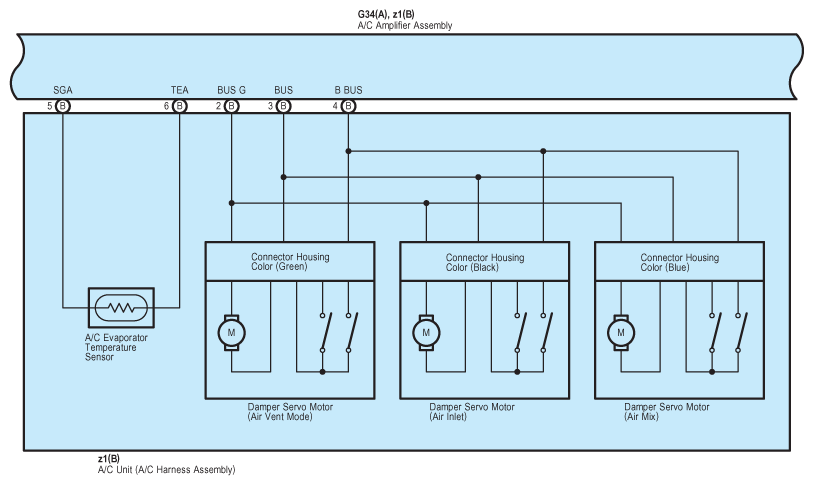

Fig 4: Air Conditioning Wiring Diagram (4 Of 9)

G09101198

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

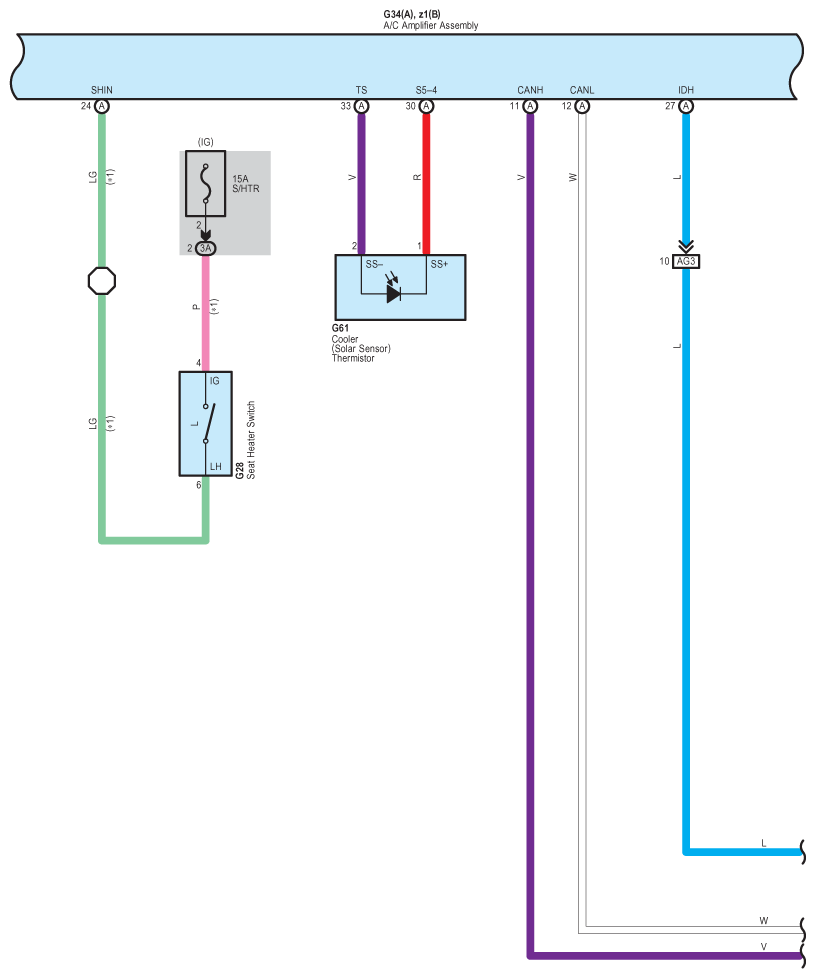

Fig 5: Air Conditioning Wiring Diagram (5 Of 9)

G09101199

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

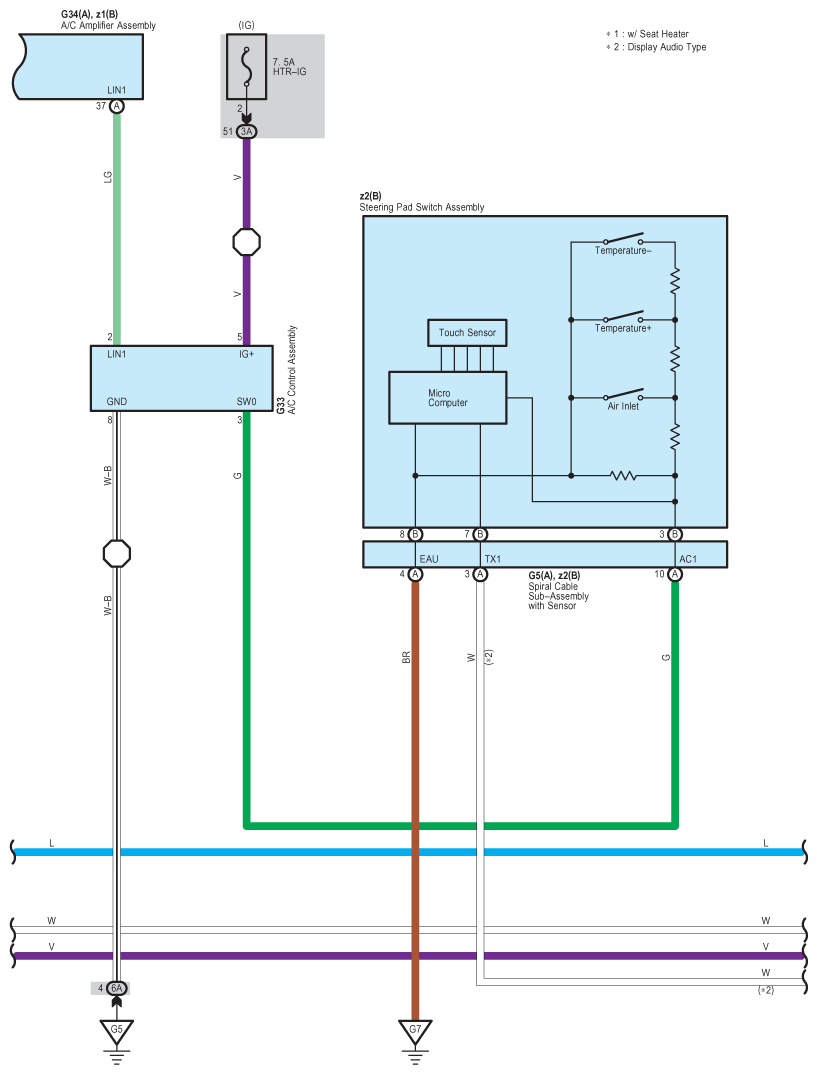

Fig 6: Air Conditioning Wiring Diagram (6 Of 9)

G09101200

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

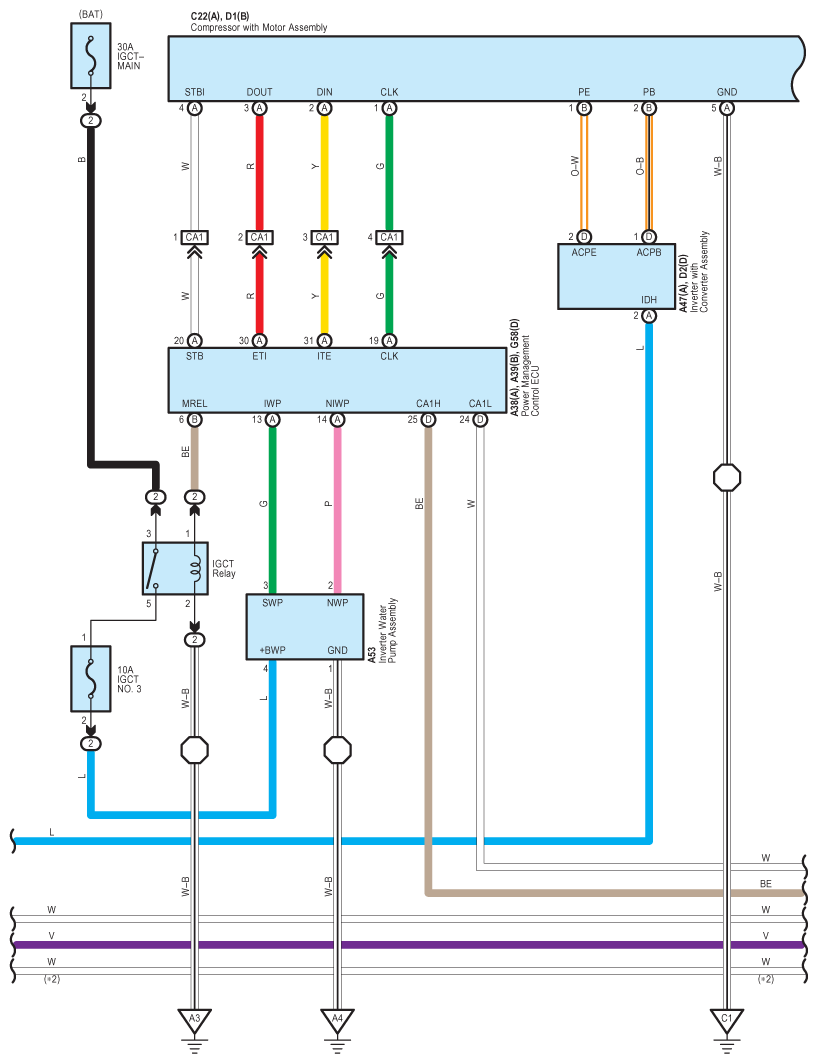

Fig 7: Air Conditioning Wiring Diagram (7 Of 9)

G09101201

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

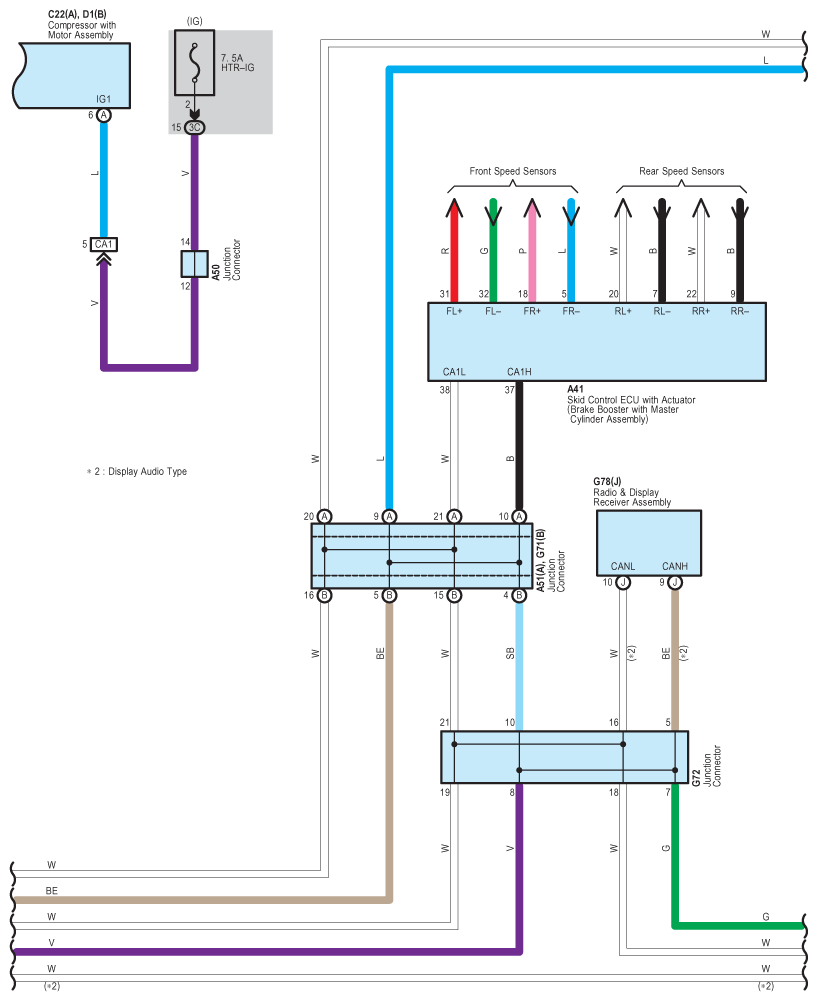

Fig 8: Air Conditioning Wiring Diagram (8 Of 9)

G09101202

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

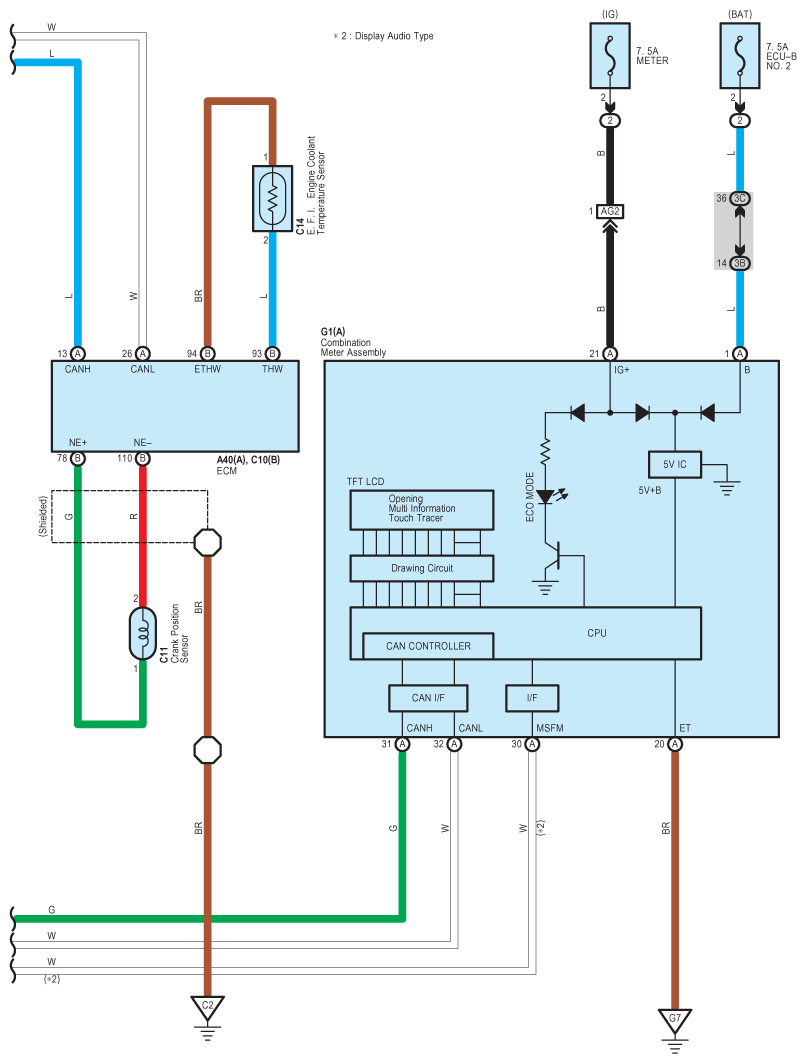

Fig 9: Air Conditioning Wiring Diagram (9 Of 9)

G09101203

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
