Back Door Opener Switch Assembly: Notes

Fig 1: Back Door Opener (w/o Smart Key System) Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

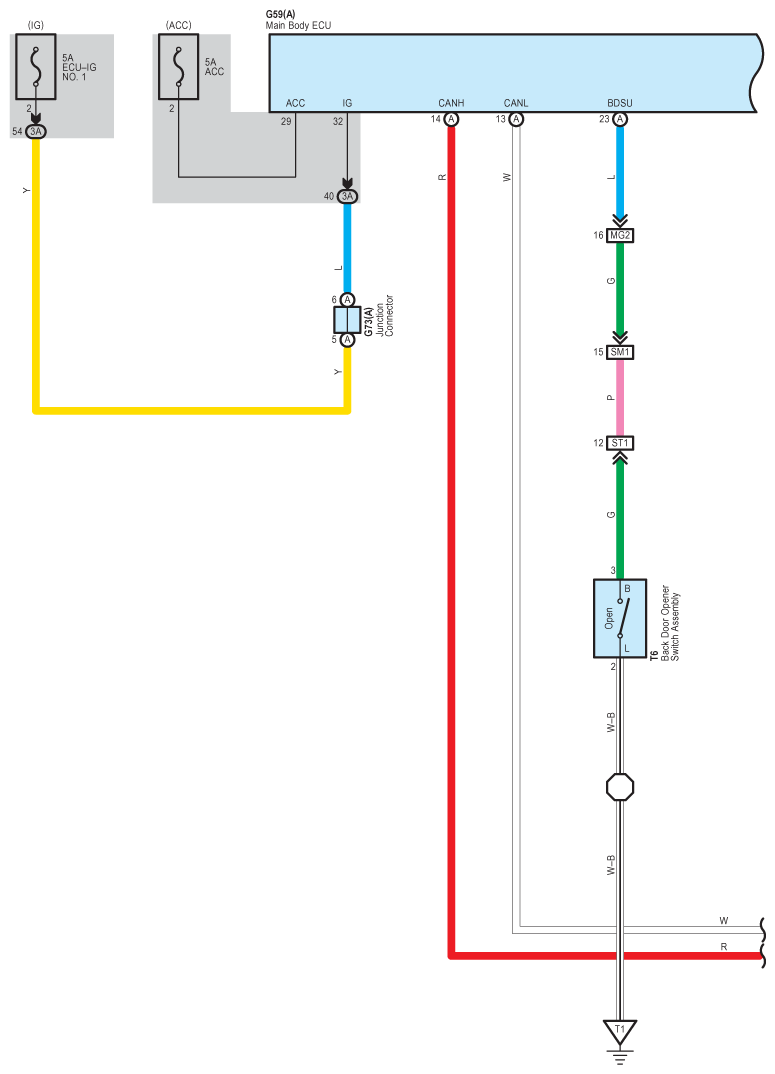

Fig 2: Back Door Opener (w/o Smart Key System) Wiring Diagram (2 Of 3)

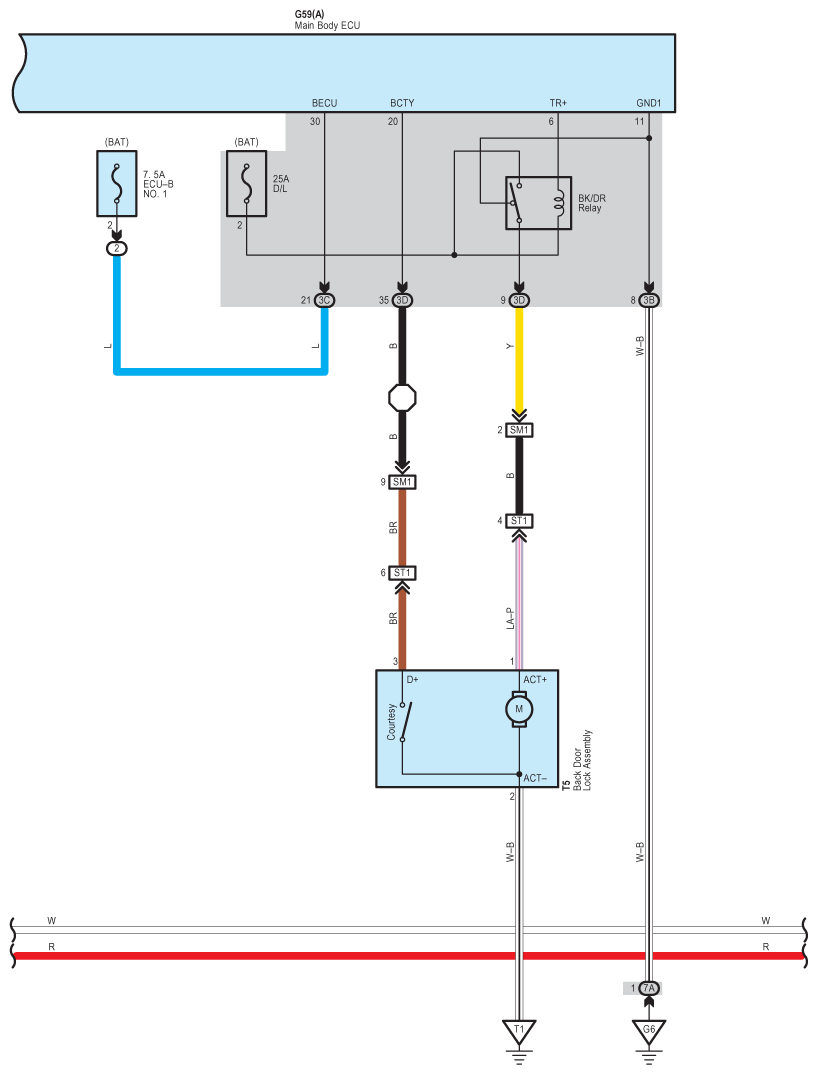

Fig 3: Back Door Opener (w/o Smart Key System) Wiring Diagram (3 Of 3)
