OEM System Circuits: Headlight: Notes

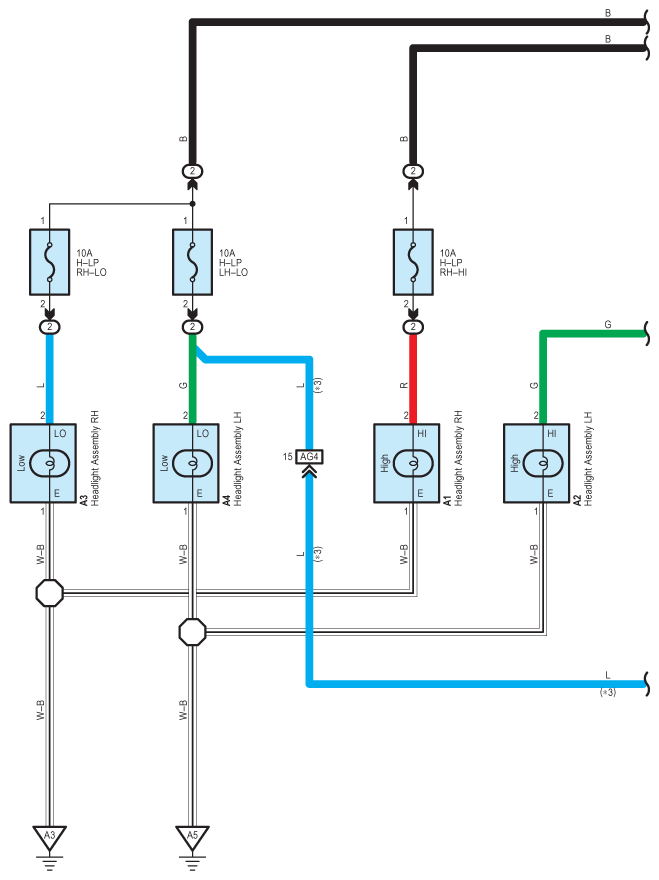

Fig 1: Headlight Wiring Diagram (1 Of 5)

G09101078

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

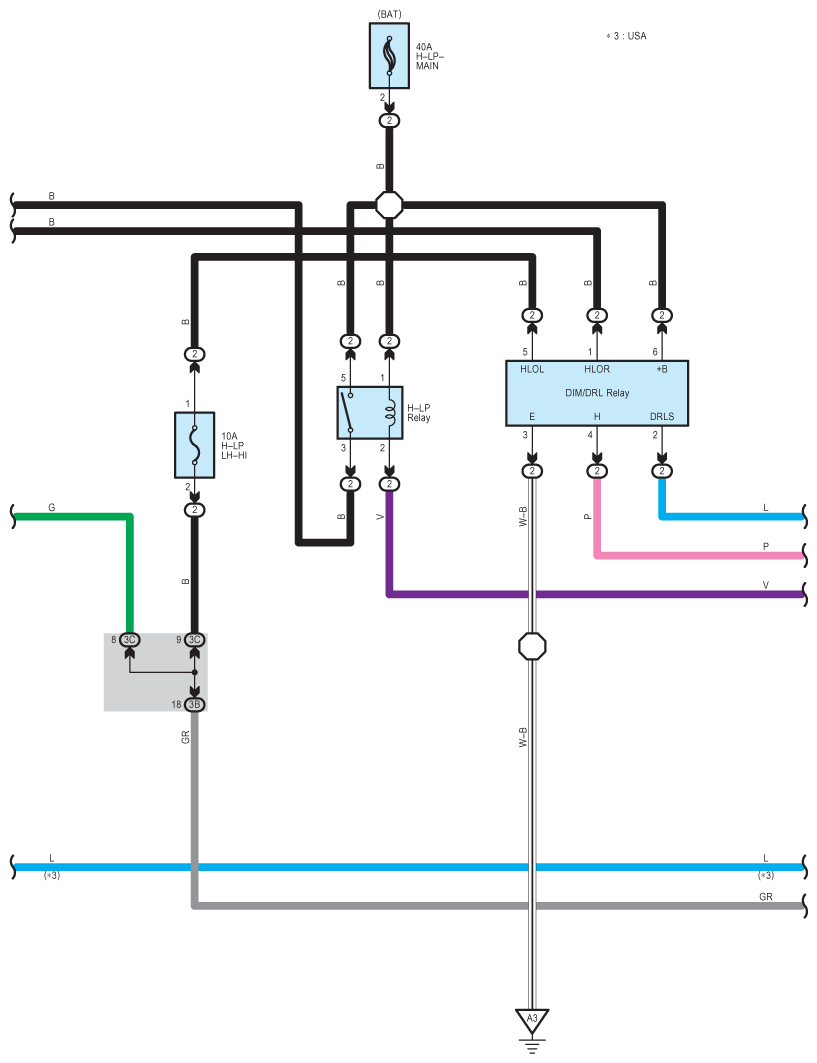

Fig 2: Headlight Wiring Diagram (2 Of 5)

G09101079

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

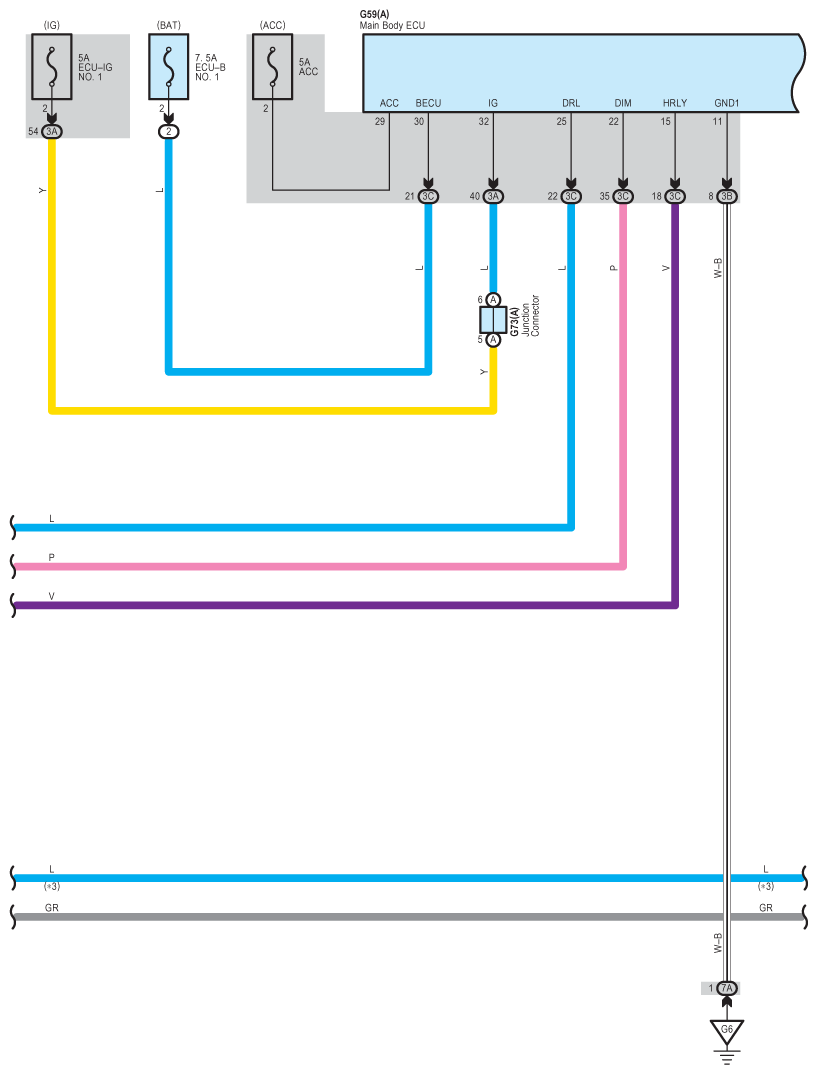

Fig 3: Headlight Wiring Diagram (3 Of 5)

G09101080

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

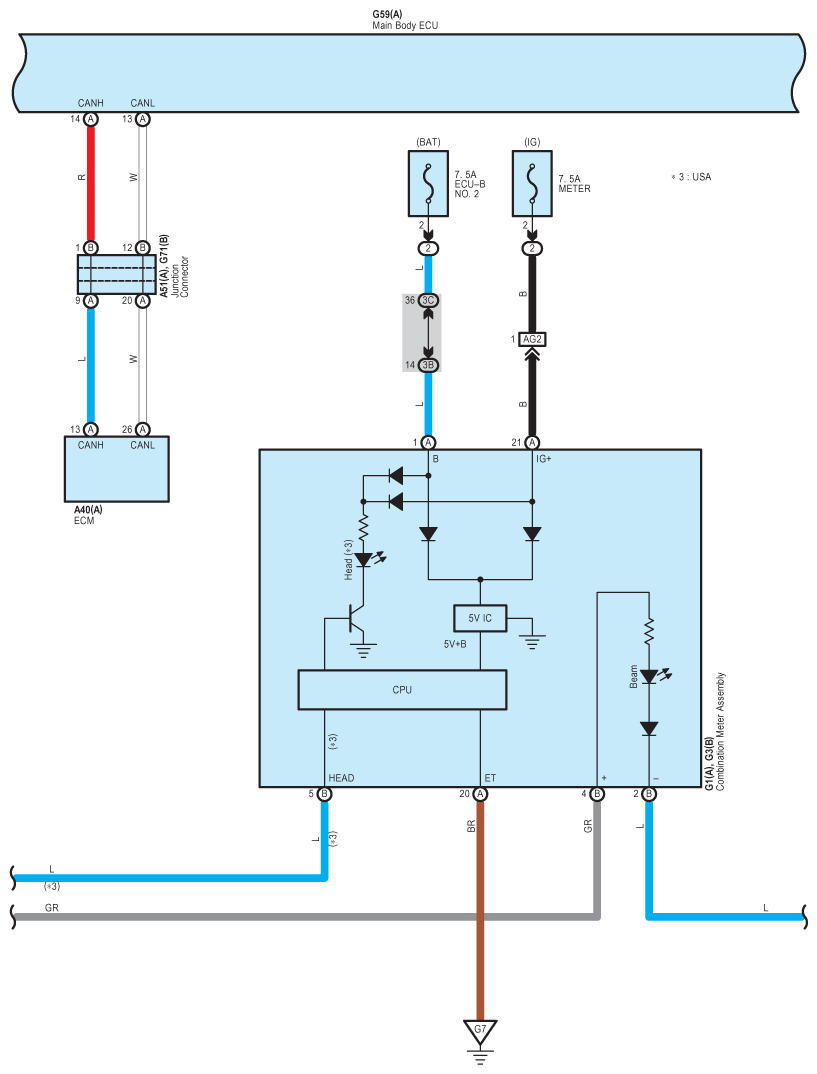

Fig 4: Headlight Wiring Diagram (4 Of 5)

G09101081

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

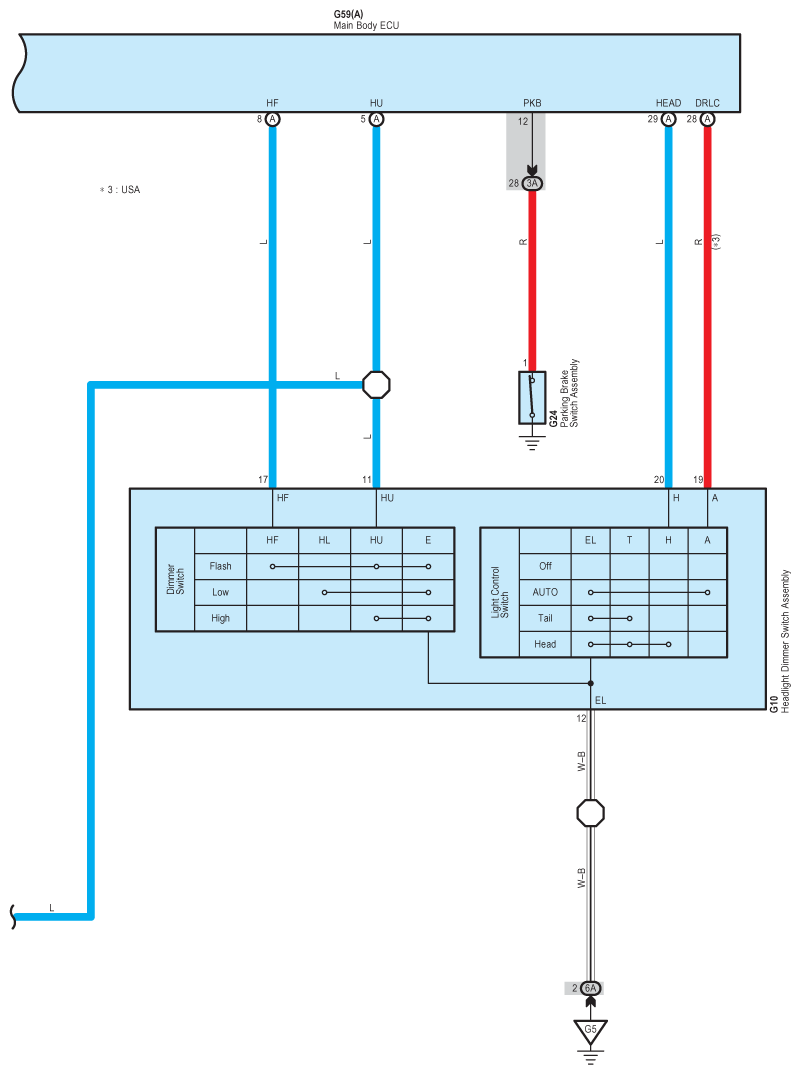

Fig 5: Headlight Wiring Diagram (5 Of 5)

G09101082

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
