Seat Heater: Notes

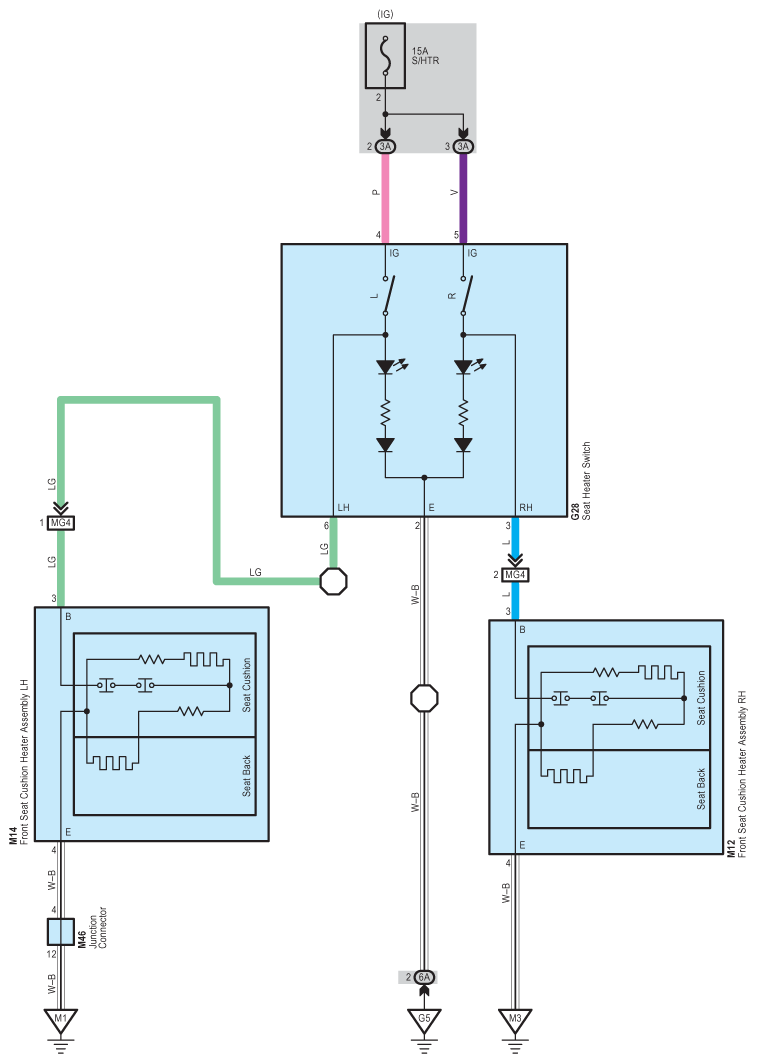

Fig 1: Seat Heater Wiring Diagram
G09101170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
