Section 33 (Ignition System (Inspection) (Plug-In))
›
Ignition System
›
System Diagram
›
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

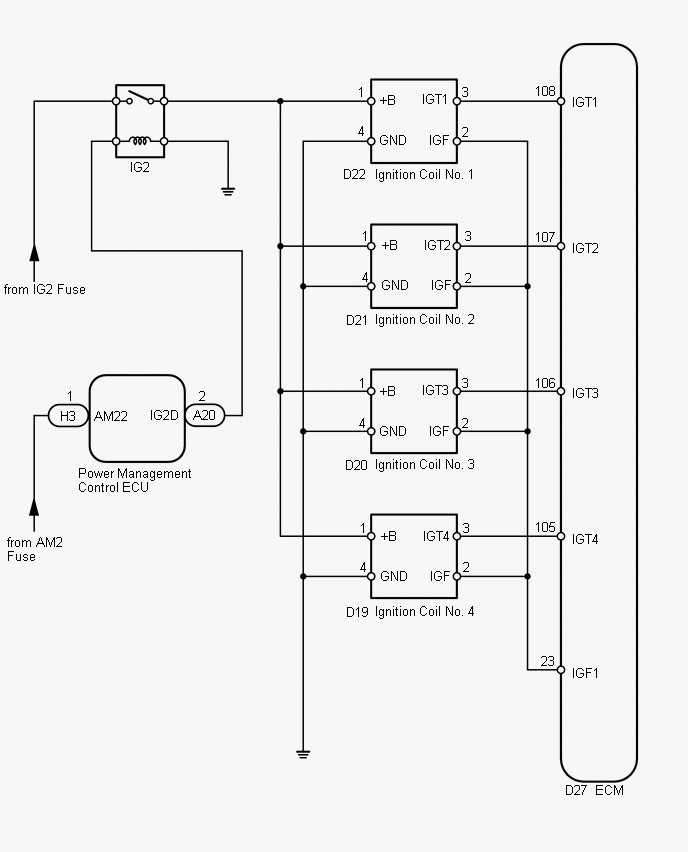

Fig 1: Identifying Ignition System Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
