Section 59 (Hybrid Battery Control System (Diagnostics - Introduction) (Plug-In))
›
Plug-In Charge Control System
›
System Diagram
›
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

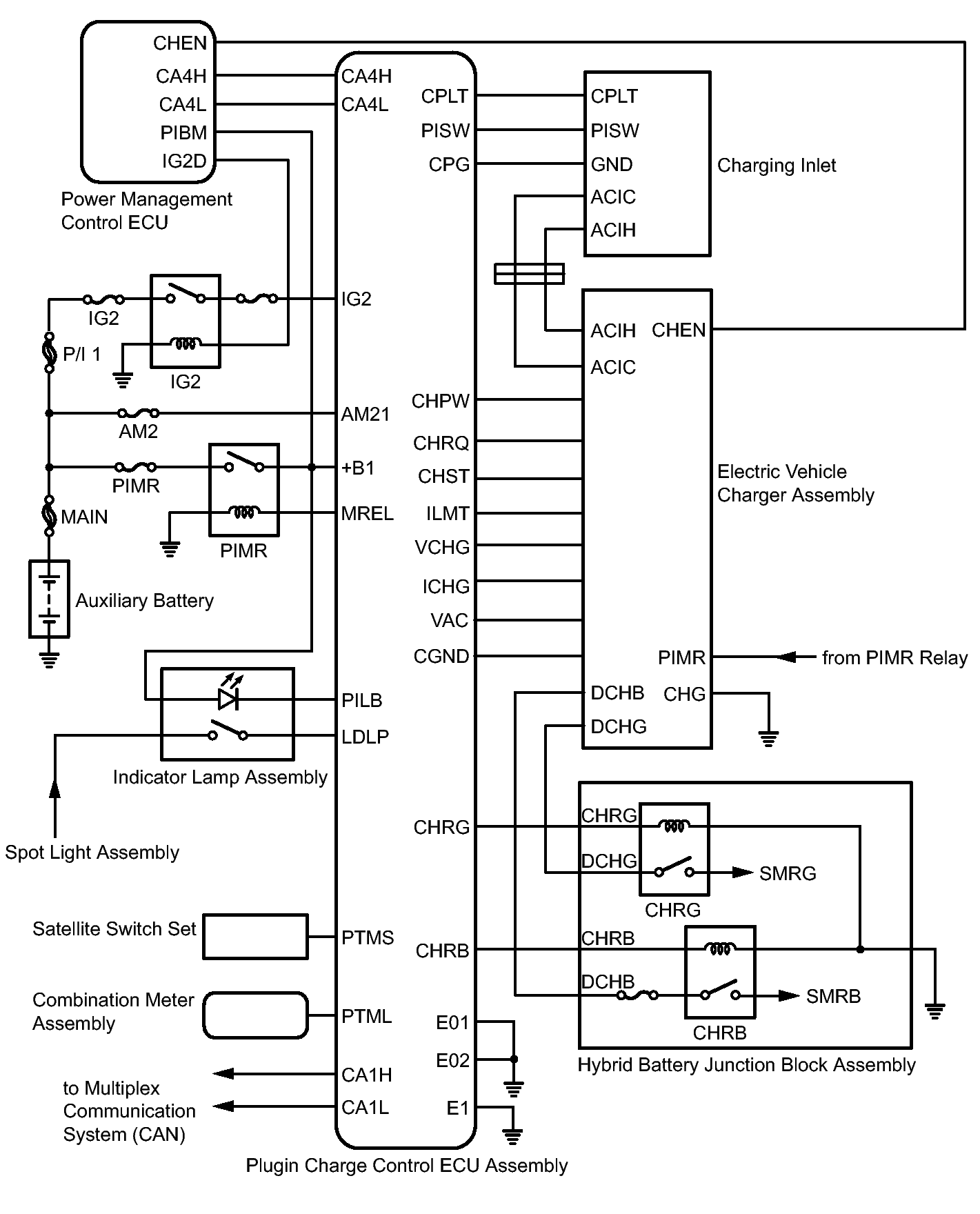

Fig 1: Identifying Plug-In Charge Control System Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
