Section 130 (Front Power Seat Control System (Inspection) (Plug-In))
›
Front Power Seat Control System
›
System Diagram
›
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

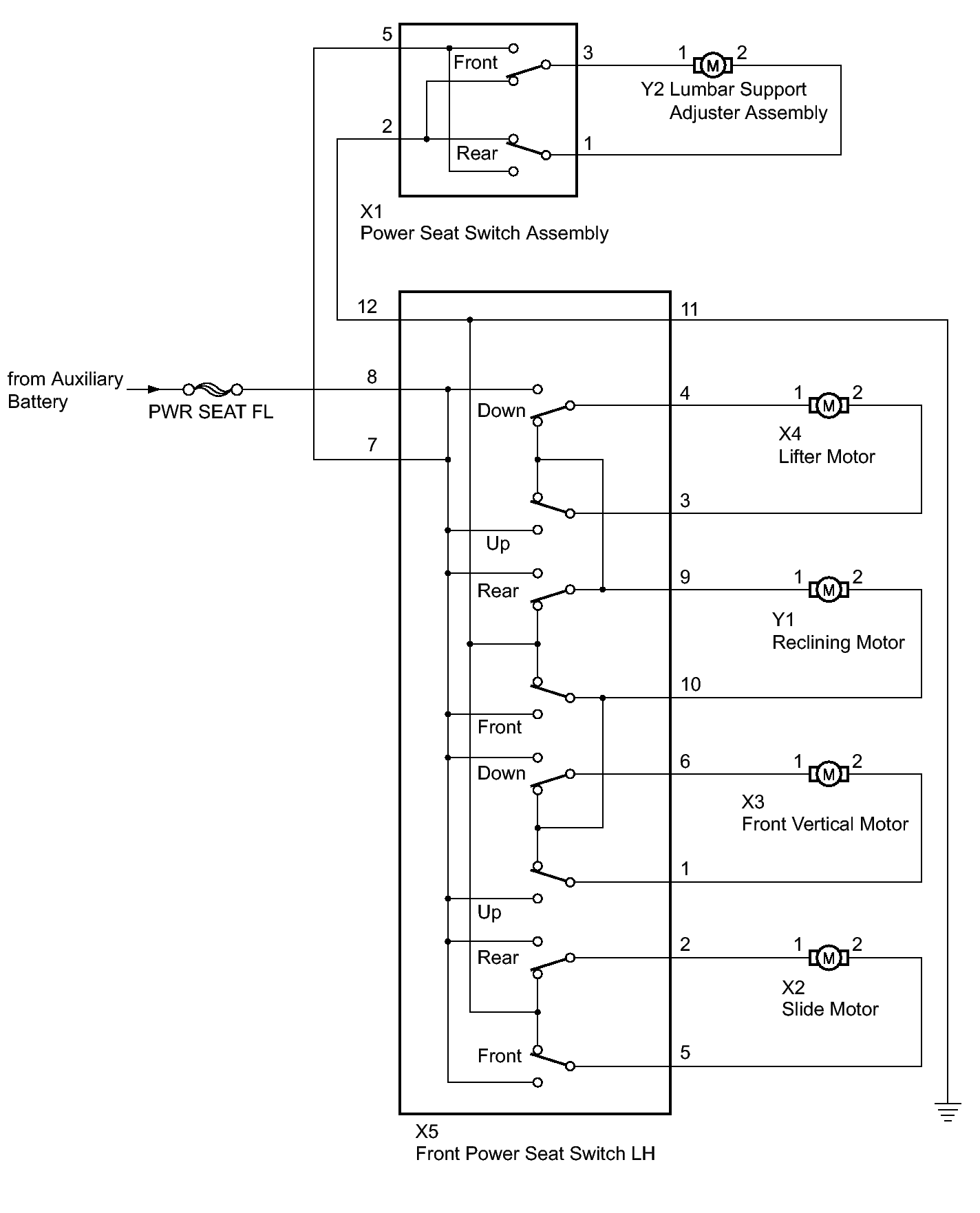

Fig 1: Identifying Front Power Seat Control System Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
