Seat Heater: Notes

WARNING: This page is about a different variant/trim than selected.

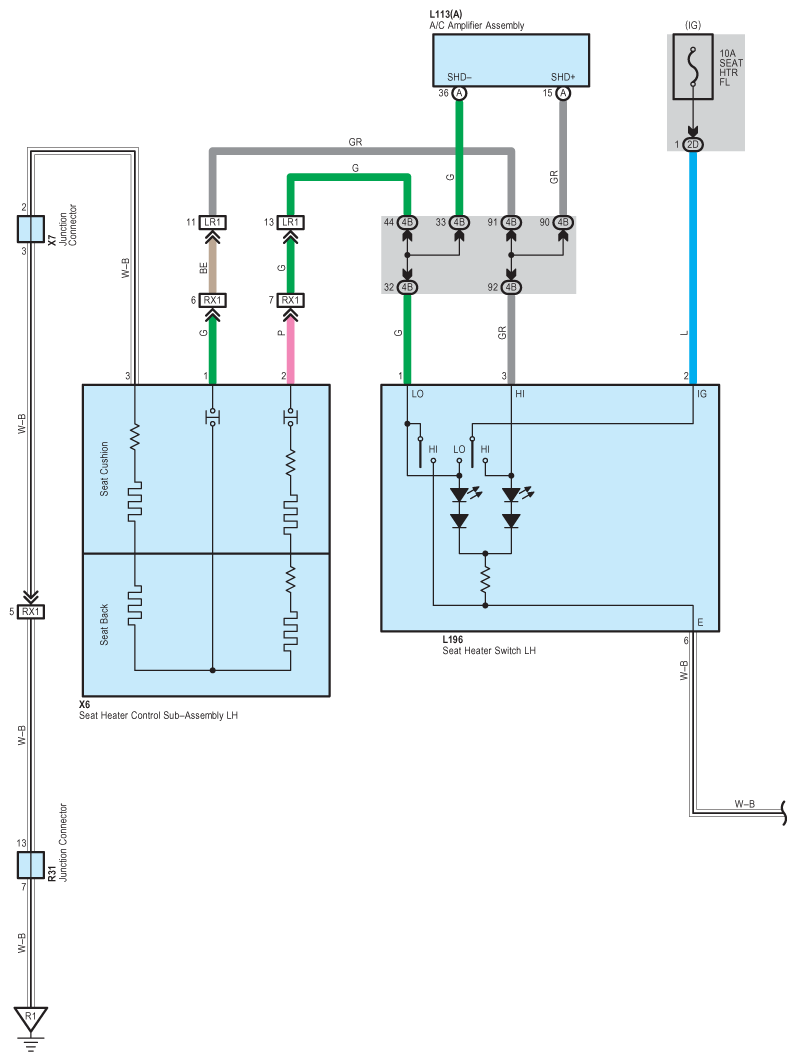

Fig 1: Seat Heater System Wiring Diagram (1 Of 2)

G09100344

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

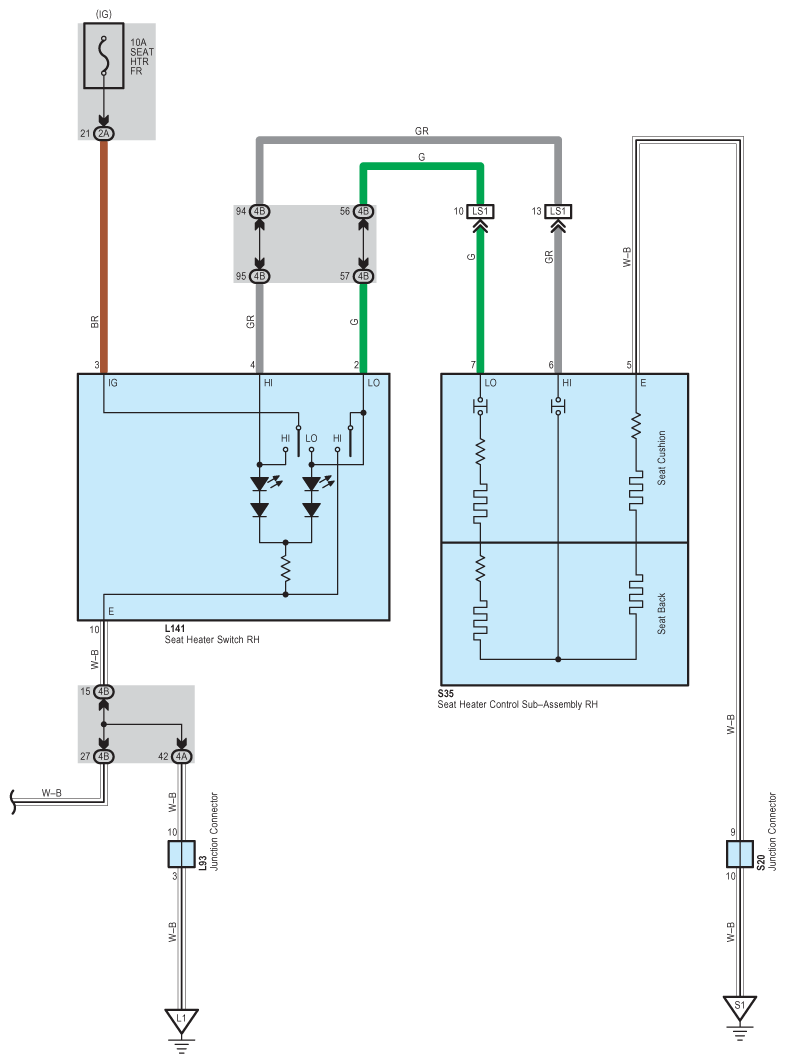

Fig 2: Seat Heater System Wiring Diagram (2 Of 2)

G09100345

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
