OEM System Circuits (Plug-In): DLC3: Notes

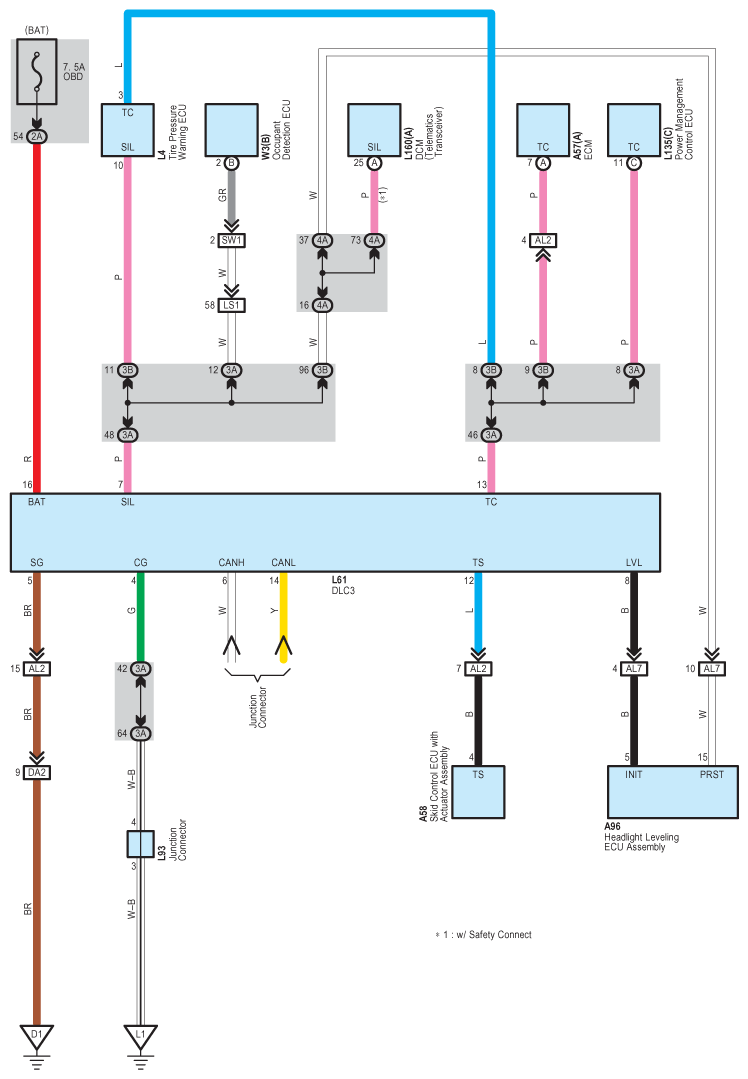

Fig 1: DLC3 Wiring Diagram

G09100234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
