OEM System Circuits (Plug-In): EPS: Notes

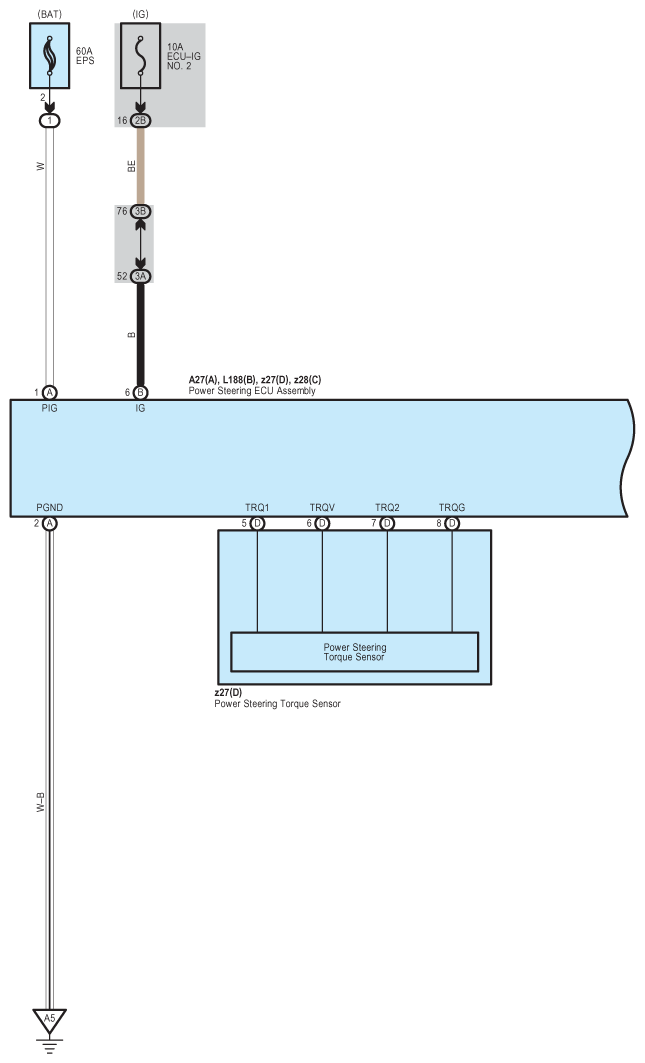

Fig 1: EPS Wiring Diagram (1 Of 4)
G09100326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

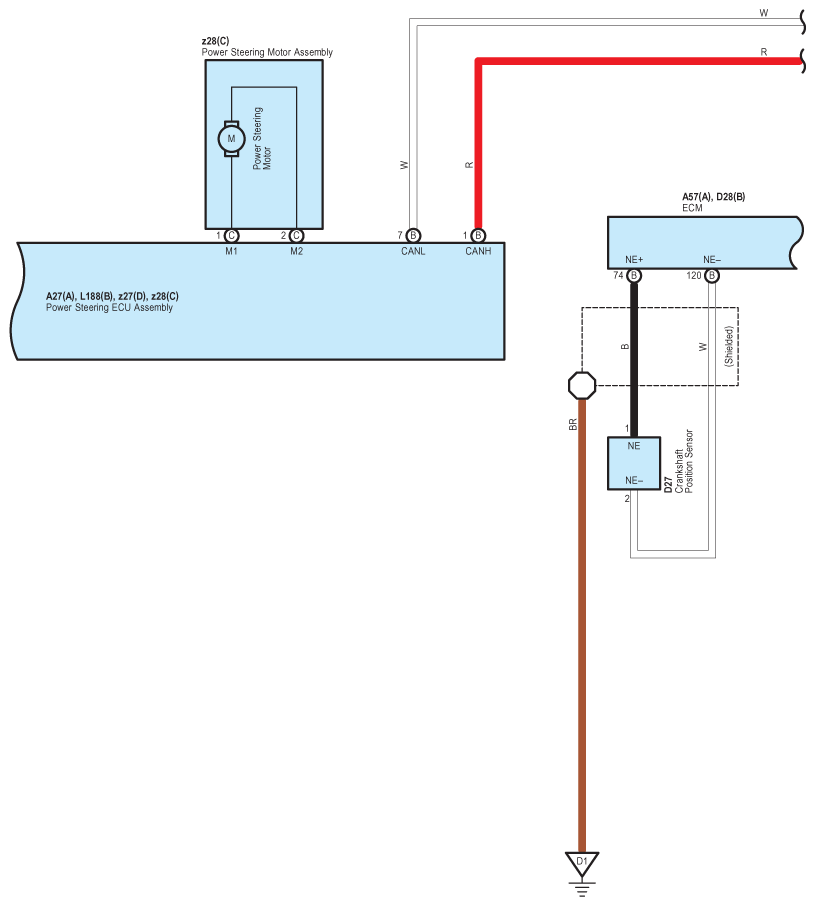

Fig 2: EPS Wiring Diagram (2 Of 4)
G09100327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

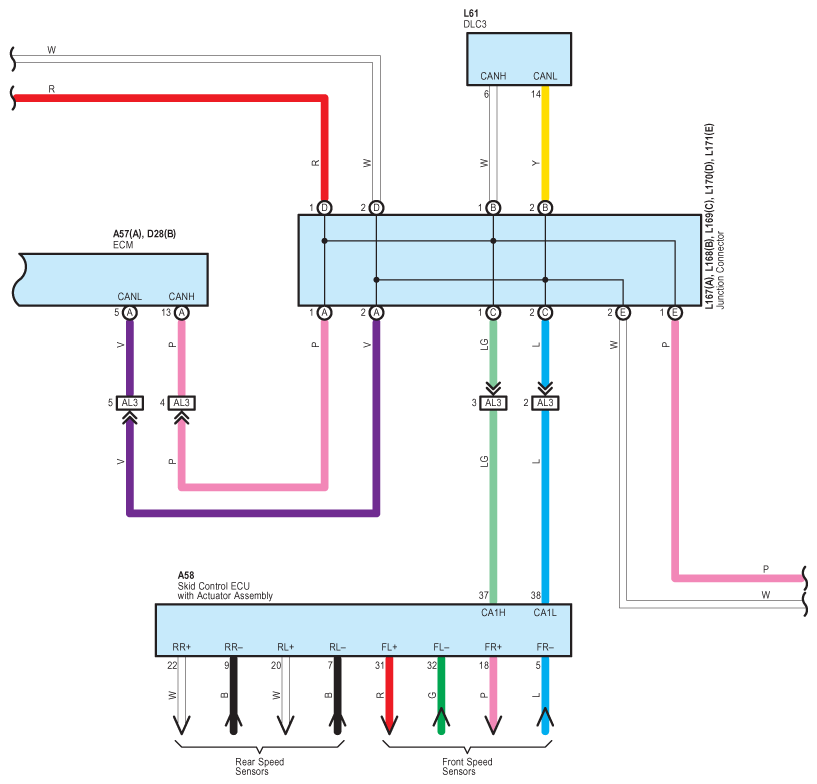

Fig 3: EPS Wiring Diagram (3 Of 4)
G09100328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

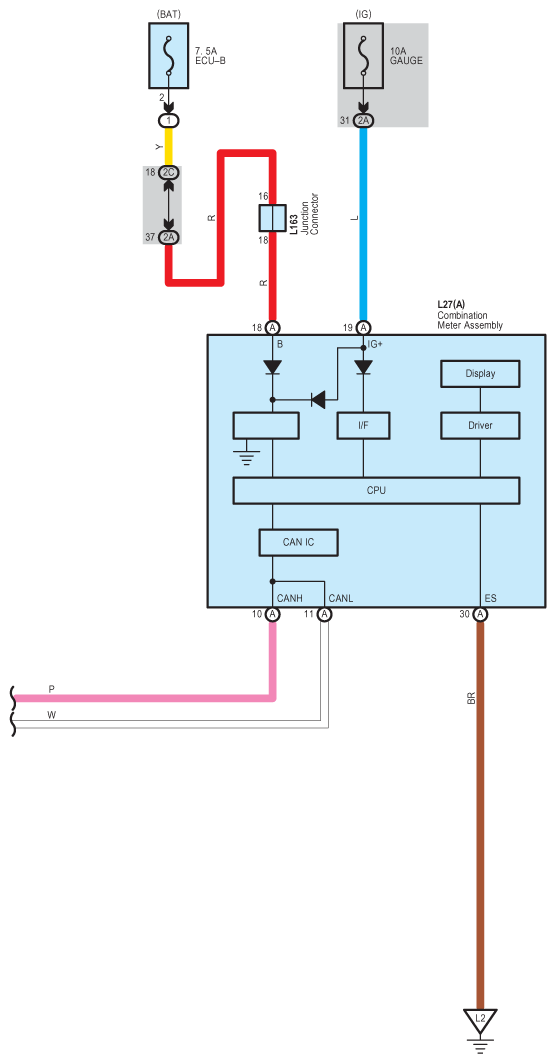

Fig 4: EPS Wiring Diagram (4 Of 4)
G09100329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
