System Diagram

WARNING: This page is about a different variant/trim than selected.

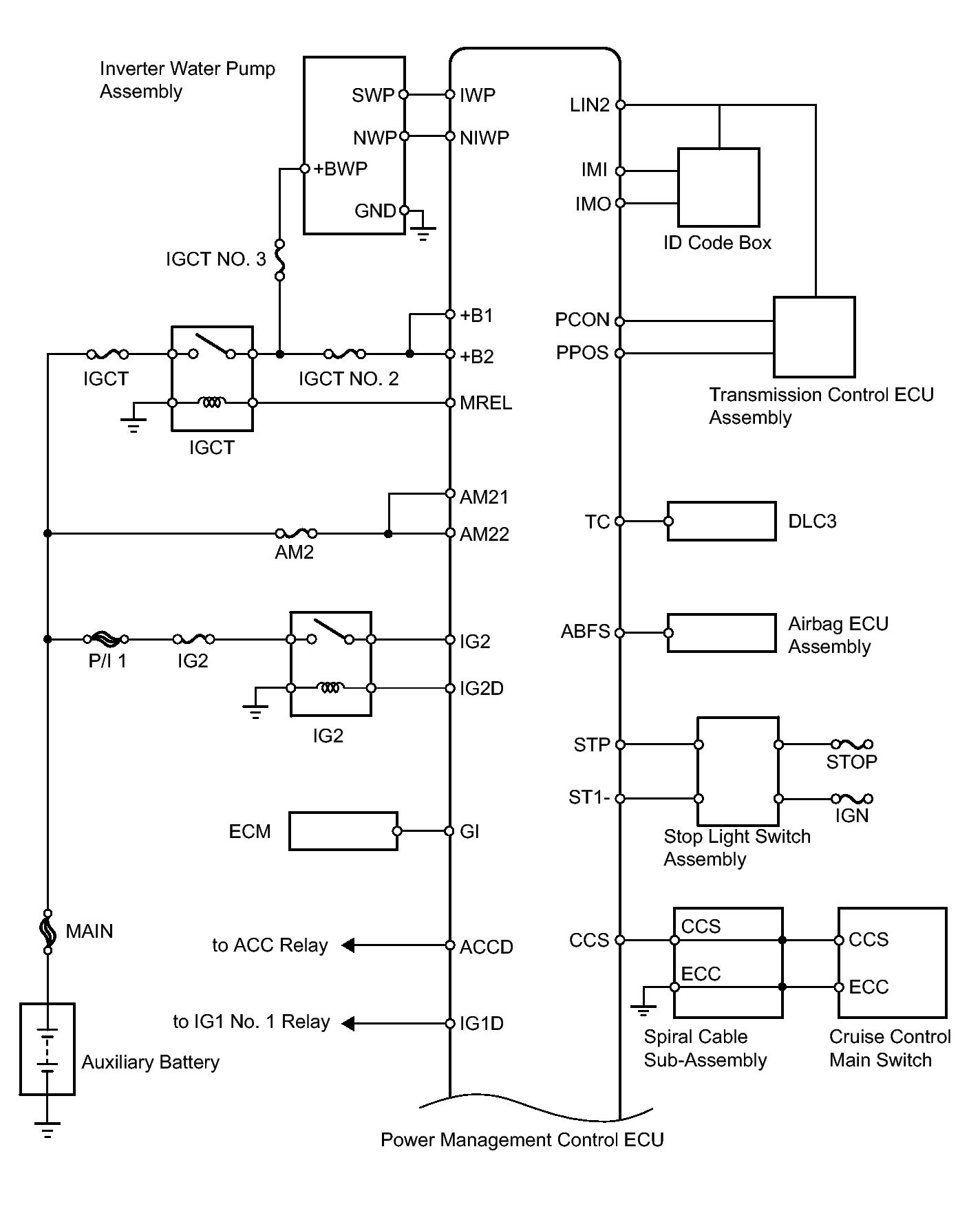

Fig 1: Identifying Hybrid Control System Wiring Diagram (1 Of 4)
GTY332712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

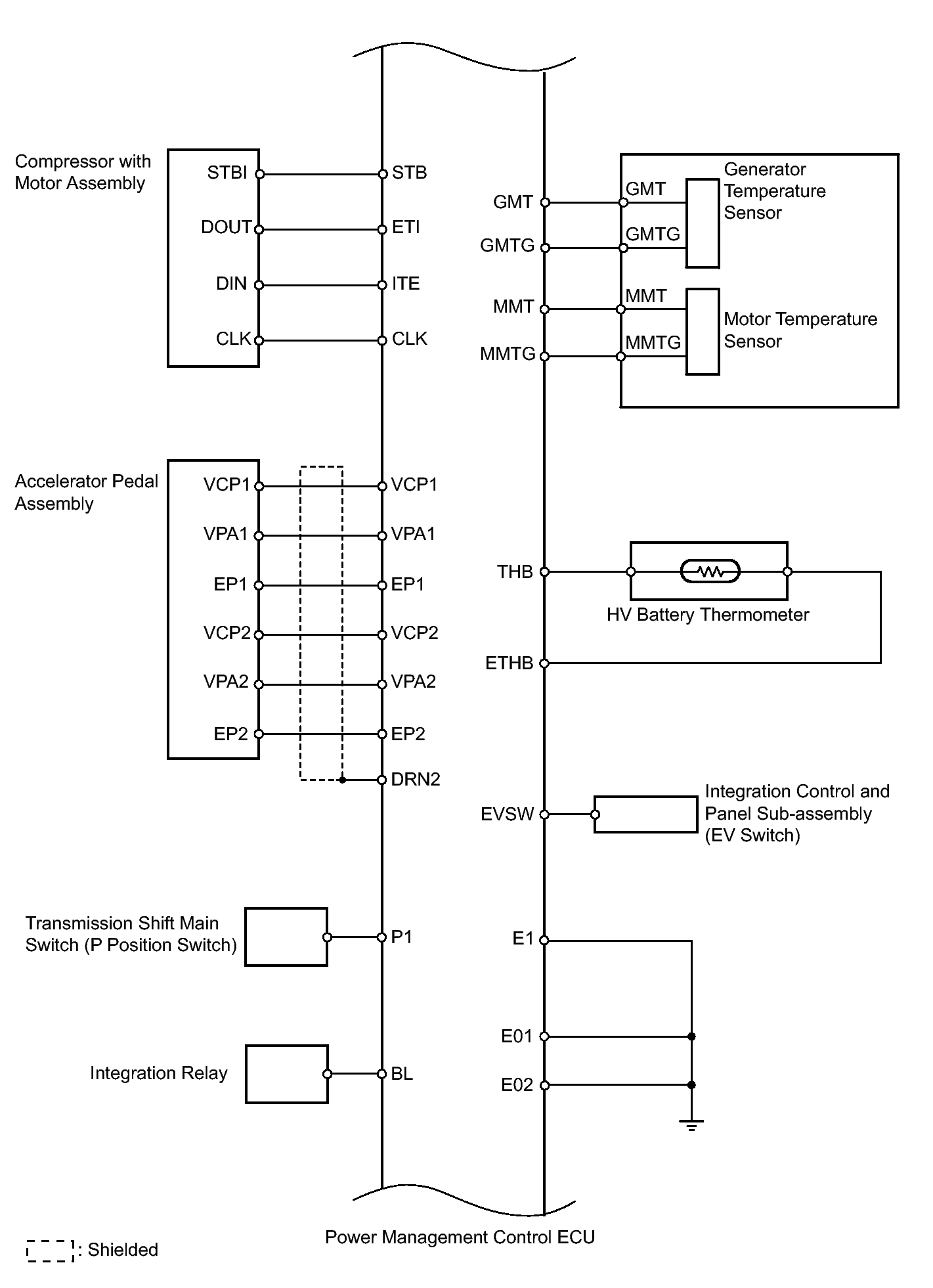

Fig 2: Identifying Hybrid Control System Wiring Diagram (2 Of 4)
GTY375360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

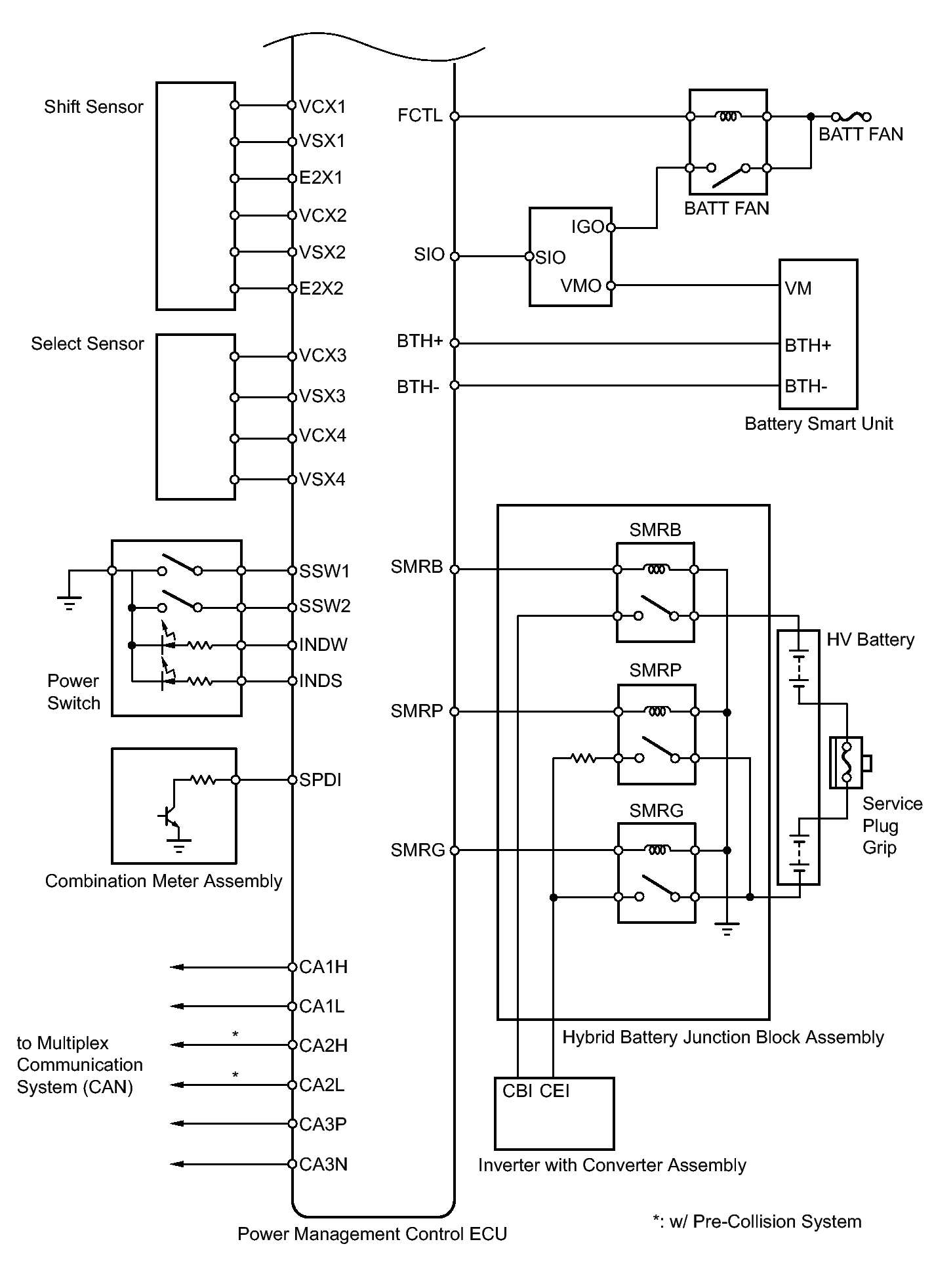

Fig 3: Identifying Hybrid Control System Wiring Diagram (3 Of 4)
GTY336427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

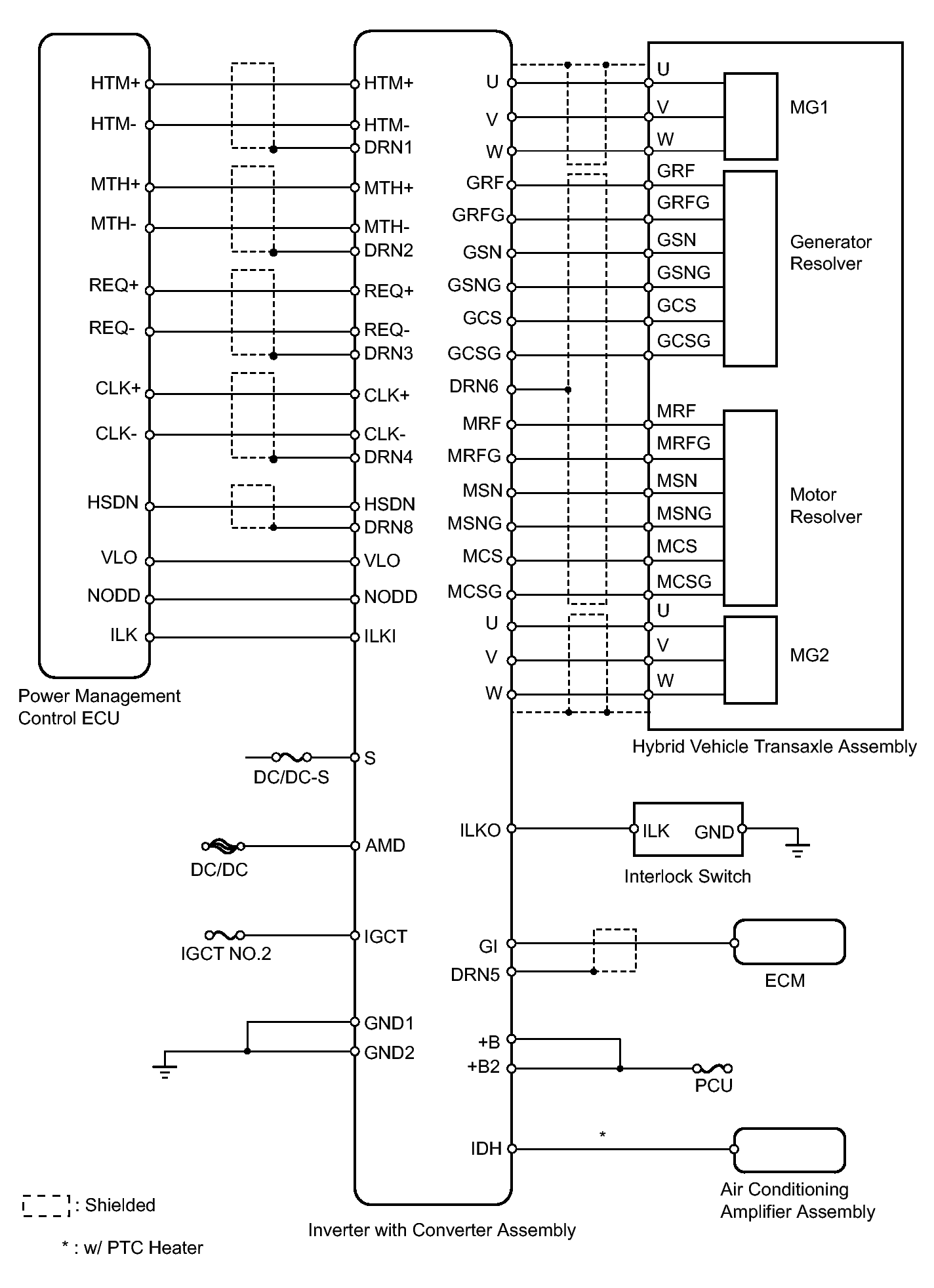

Fig 4: Identifying Hybrid Control System Wiring Diagram (4 Of 4)
GTY291704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
