Shift Control Actuator: Installation: Installation

INSTALL SHIFT CONTROL ACTUATOR SEAL
NOTE:
It is not always necessary to replace or remove/install the shift control actuator seal at the same time when replacing the shift control actuator assembly.

HINT:

Remove/install the shift control actuator seal only if oil leaks from the shift control actuator seal or other faults are found when the shift control actuator assembly is removed.
1. Using SST and a hammer, tap in a new shift control actuator seal.

  Fig 1: Identifying SST, Actuator Seal & Depth Demensions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09820-00031
  Seal installation depth

  8.5 to 9.8 mm (0.335 to 0.386 in.)
  TEXT IN ILLUSTRATION

  *a Seal installation depth
INSTALL SHIFT CONTROL ACTUATOR ASSEMBLY

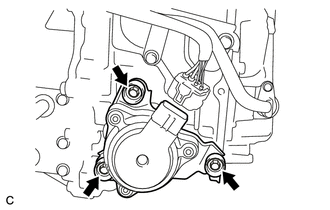

1. Install the shift control actuator assembly with the 3 new shift control actuator bolts.

  Fig 2: Identifying Shift Control Actuator Assembly & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)

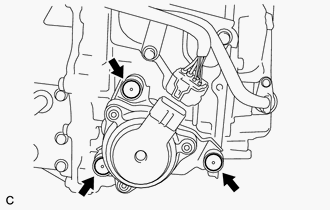

2. Install the 3 new shift control actuator bolt caps to the shift control actuator bolts.

  Fig 3: Identifying Shift Control Actuator Bolt Caps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Push in each shift control actuator cap firmly until the claw of the shift control actuator bolt cap engages with the control actuator bolt.
3. Connect the connector to the shift control actuator assembly.
INSTALL NO. 1 ENGINE UNDER COVER
