Rear Window Defogger System does not Operate: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

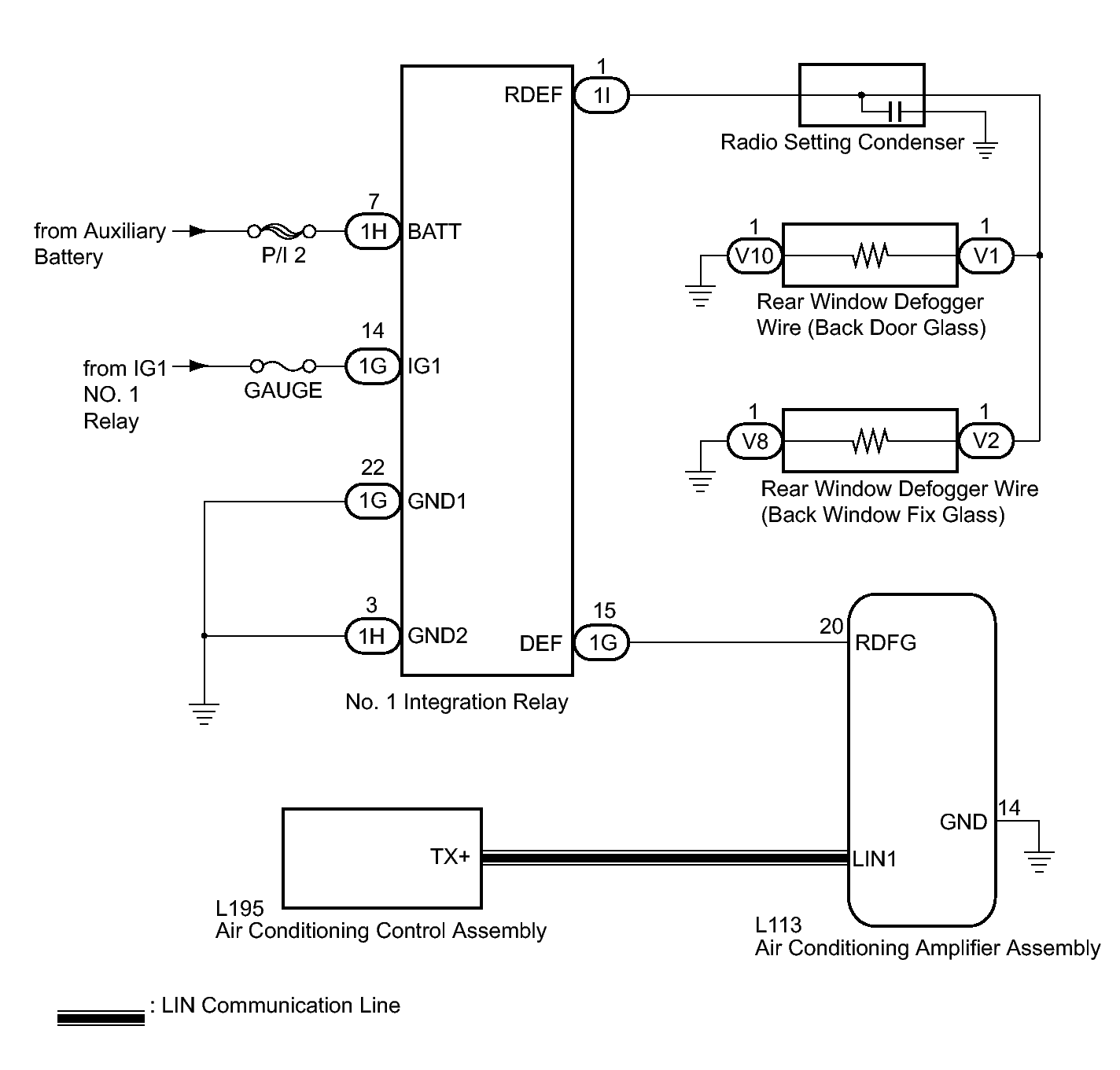

Fig 1: Identifying Rear Window Defogger System Circuit Diagram

GTY331950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
