Mirror Heater and Rear Window Defogger
›
Notes
Mirror Heater and Rear Window Defogger: Notes
WARNING:
This page is about a different variant/trim than selected.

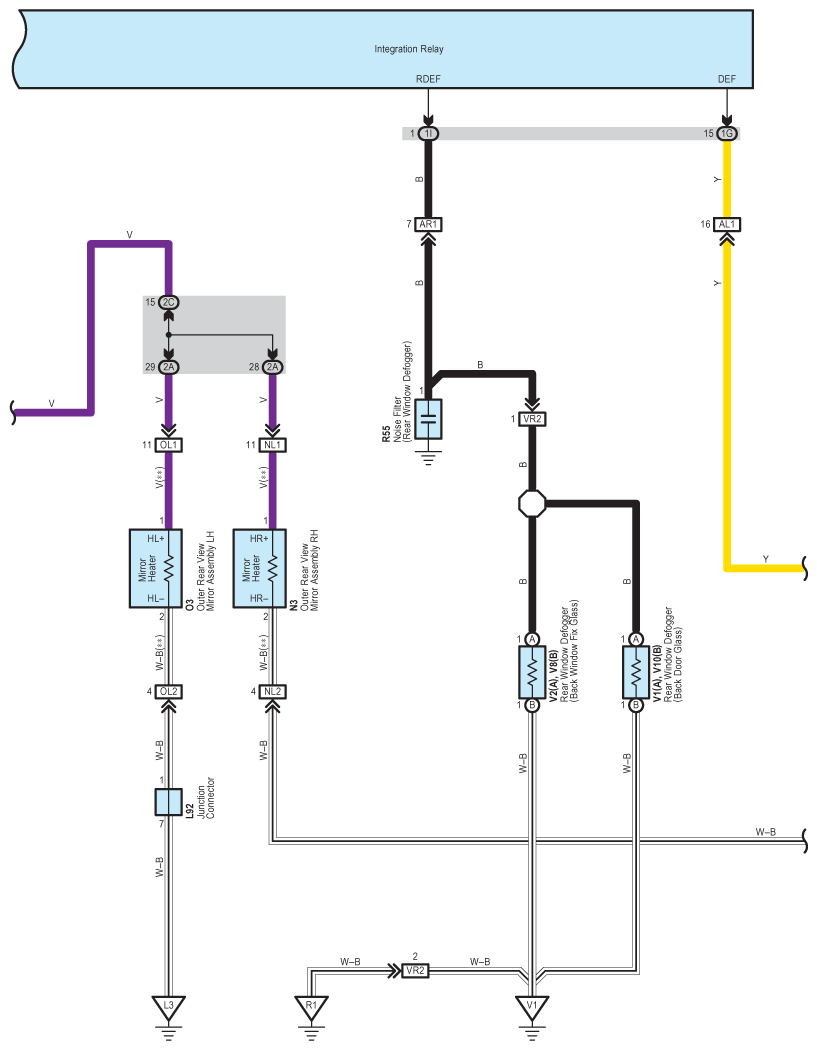

Fig 1: Mirror Heater And Rear Window Defogger System Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

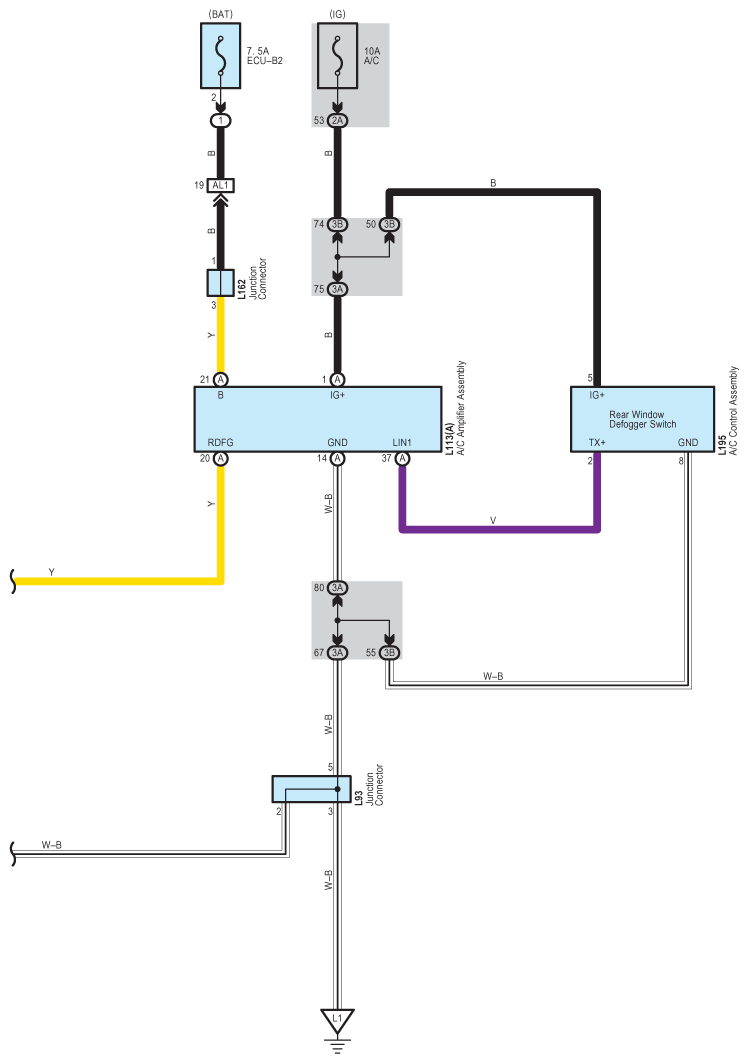

Fig 2: Mirror Heater And Rear Window Defogger System Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

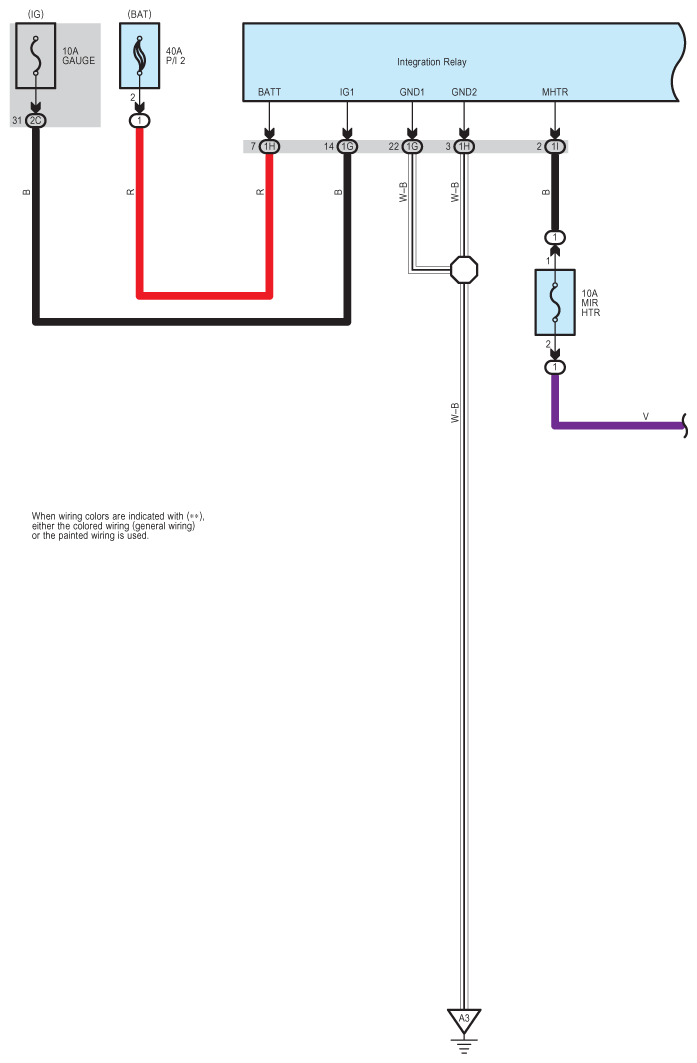

Fig 3: Mirror Heater And Rear Window Defogger System Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
