Charge Inlet: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Charge Inlet Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

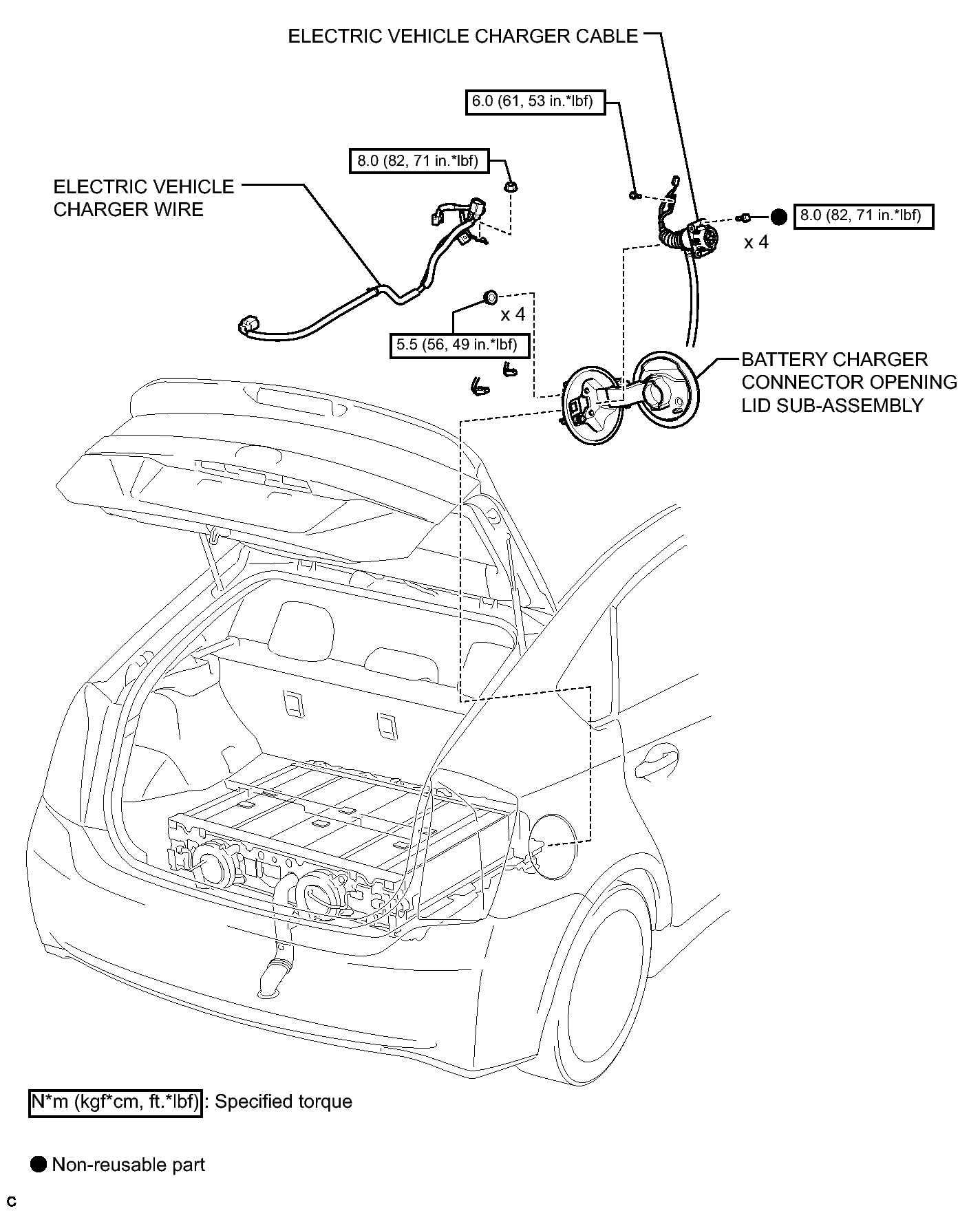

Fig 1: Identifying Charge Inlet Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

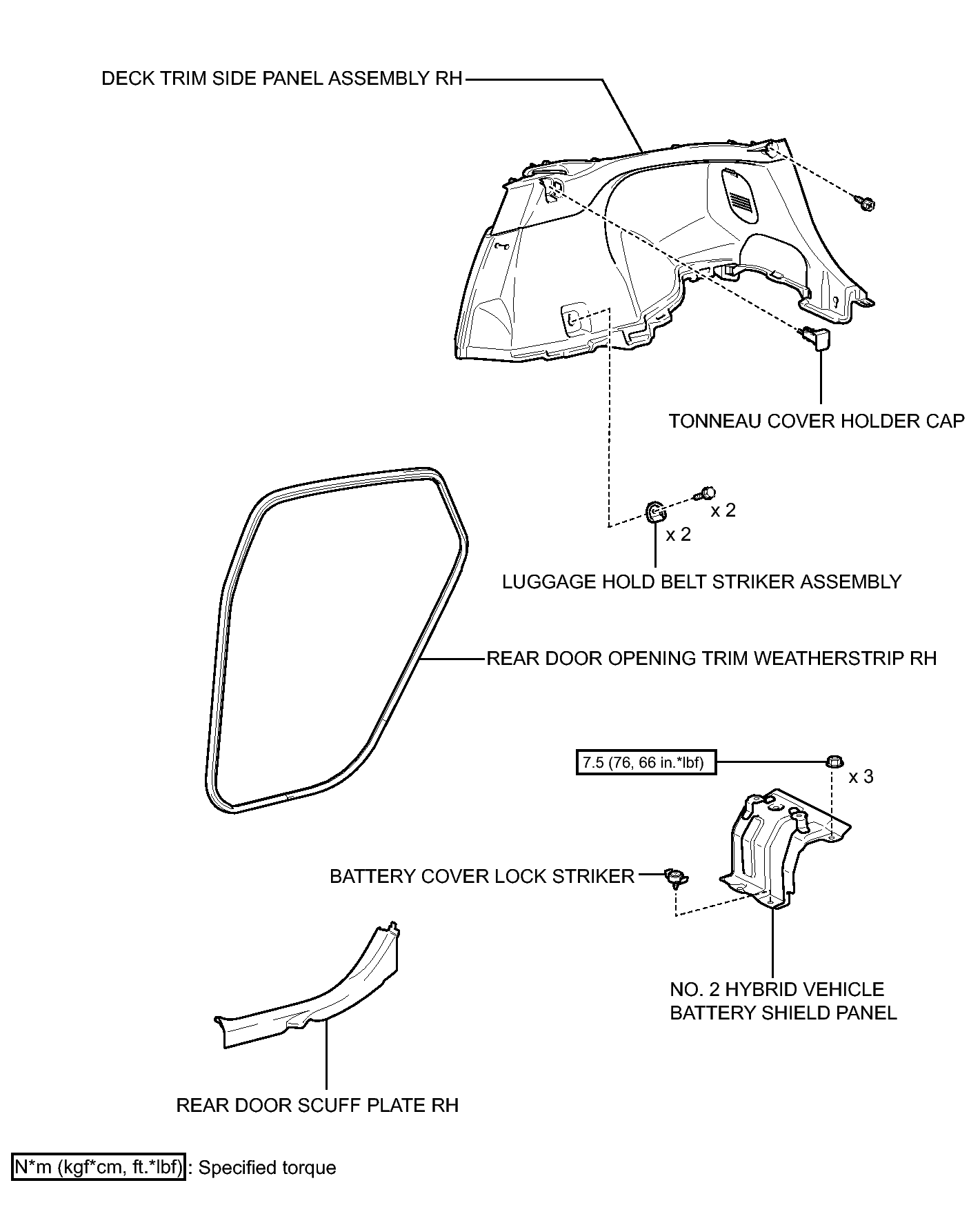

Fig 1: Identifying Charge Inlet Replacement Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Charge Inlet Replacement Components With Torque Specifications (4 Of 6)

Fig 1: Identifying Charge Inlet Replacement Components With Torque Specifications (5 Of 6)

Fig 1: Identifying Charge Inlet Replacement Components With Torque Specifications (6 Of 6)
