Section 22 (Power Steering System (Diagnostics - Introduction) (Plug-In))
›
Power Steering System
›
System Diagram
›
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

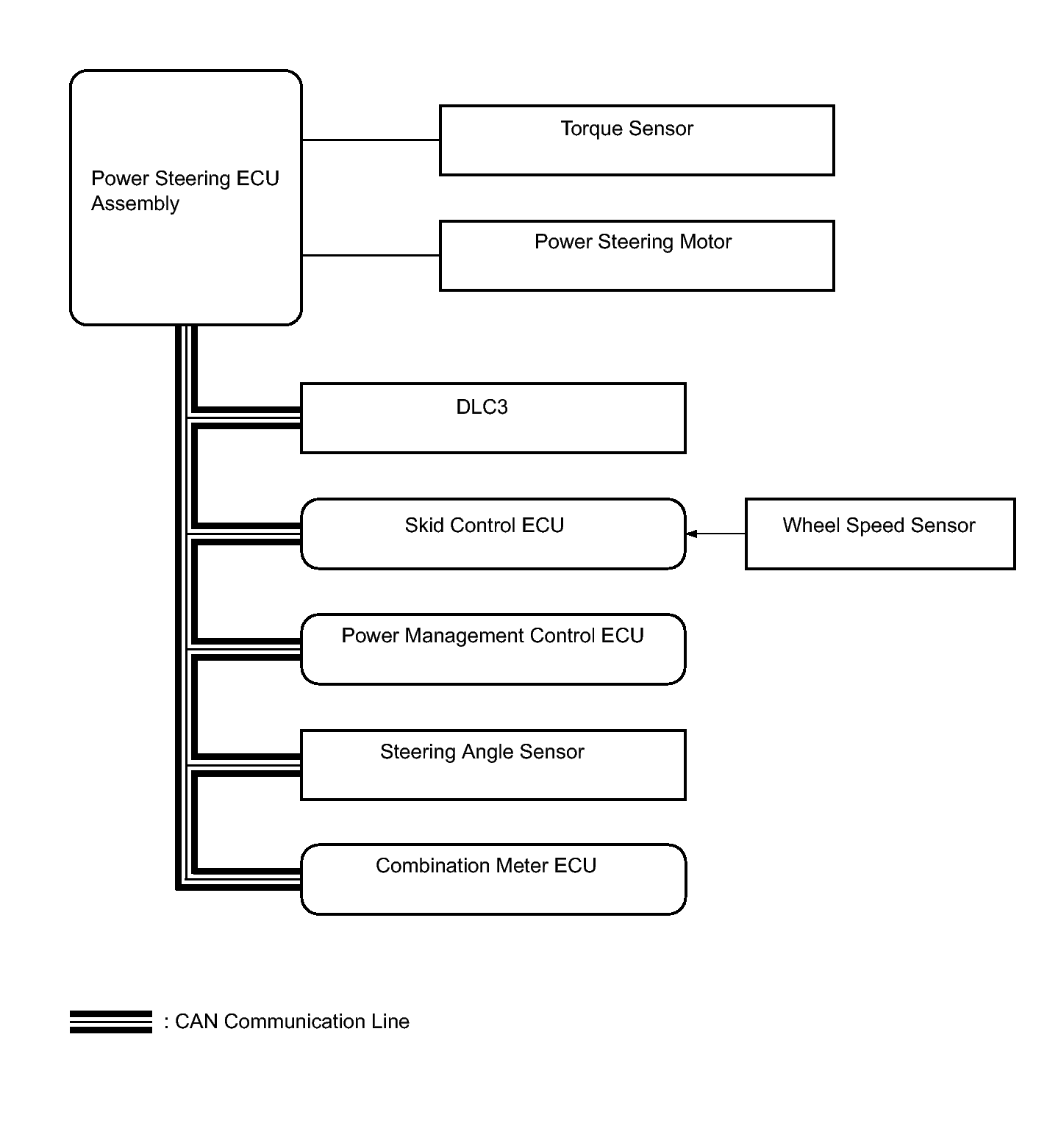

Fig 1: Identifying Power Steering System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
