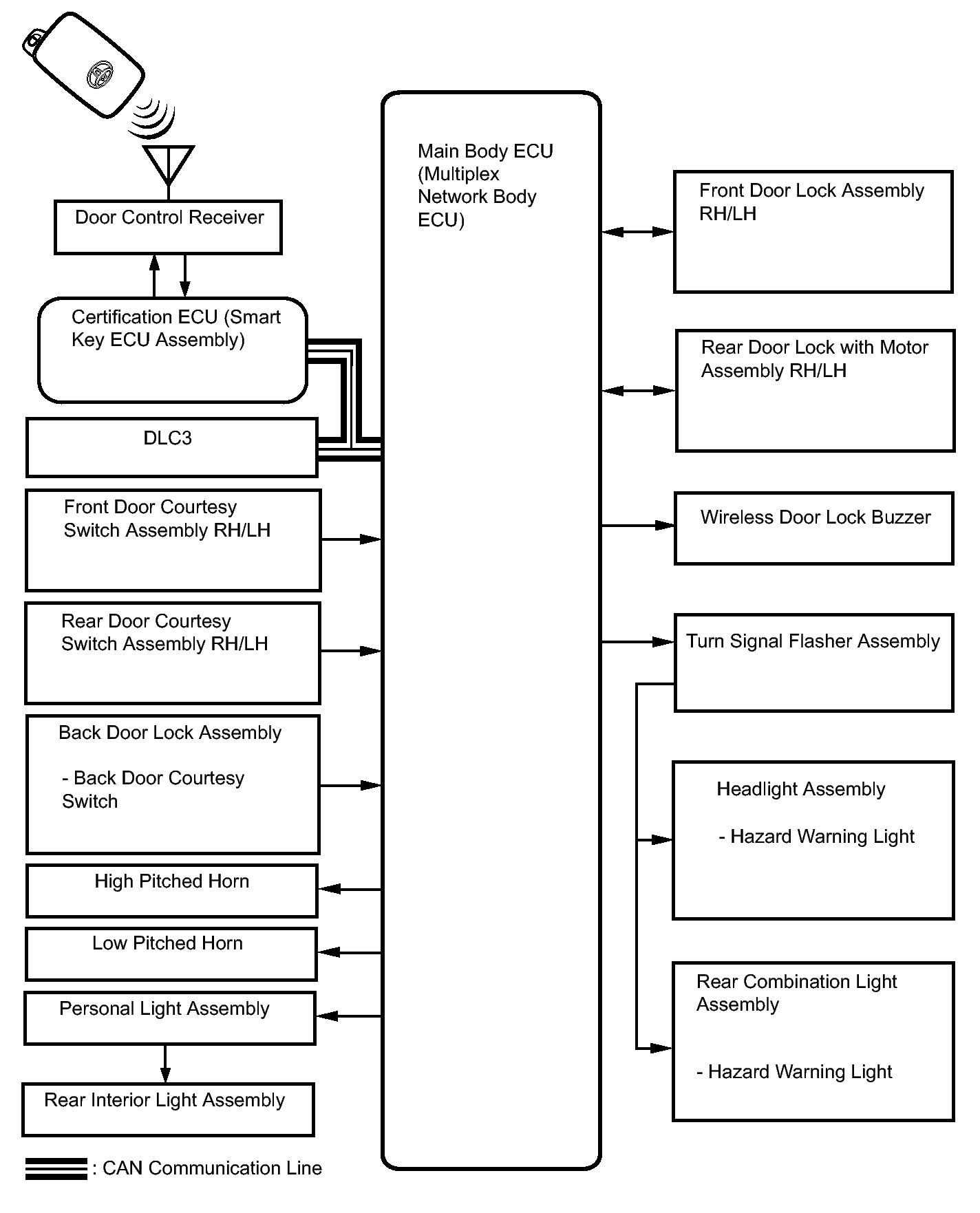

System Diagram
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 COMMUNICATION TABLE
| Transmitting ECU (Transmitter) |
Receiving ECU (Receiver) |
Signal |
Line |
Certification ECU
(Smart key ECU assembly) |
Main body ECU
(Multiplex network body ECU) |
Wireless door lock signal |
CAN |
