Service Plug Grip: Installation: Installation

  1. INSTALL SERVICE PLUG GRIP
    WARNING:

    Wear insulating gloves.

    NOTE:

    Before connecting the service plug, check that no parts and tools remain and that the high voltage terminals and connectors are connected securely.

    1. Wear insulated gloves and install the service plug grip in the order shown in the illustration.

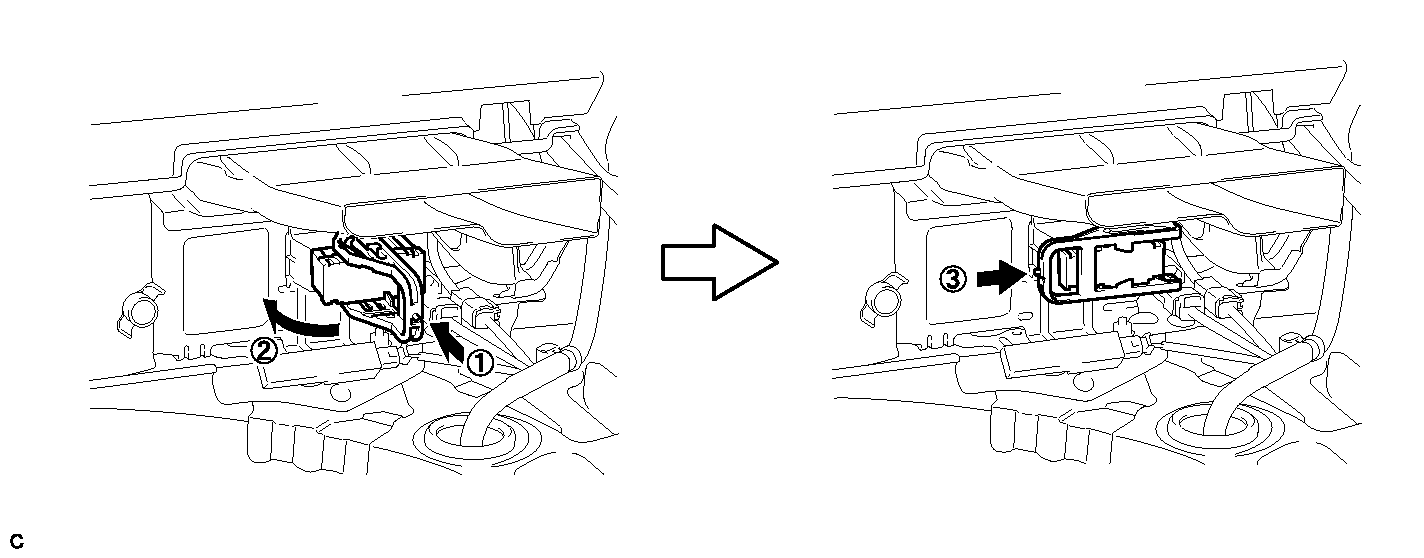

      Fig 1: Identifying Service Plug Grip
      GTY291334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Rotate the handle of the service plug grip 90° toward the battery and slide it in the direction shown by the arrow until a click sound is heard.
  2. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
  3. INSTALL REAR NO. 3 FLOOR BOARD  . Refer to INSTALLATION - Step 58
  4. INSTALL REAR DECK FLOOR BOX  . Refer to INSTALLATION - Step 59
  5. INSTALL REAR NO. 2 FLOOR BOARD (for Separate Type)  . Refer to INSTALLATION - Step 60
