OEM System Circuits (Except Plug-In): DLC3: Notes

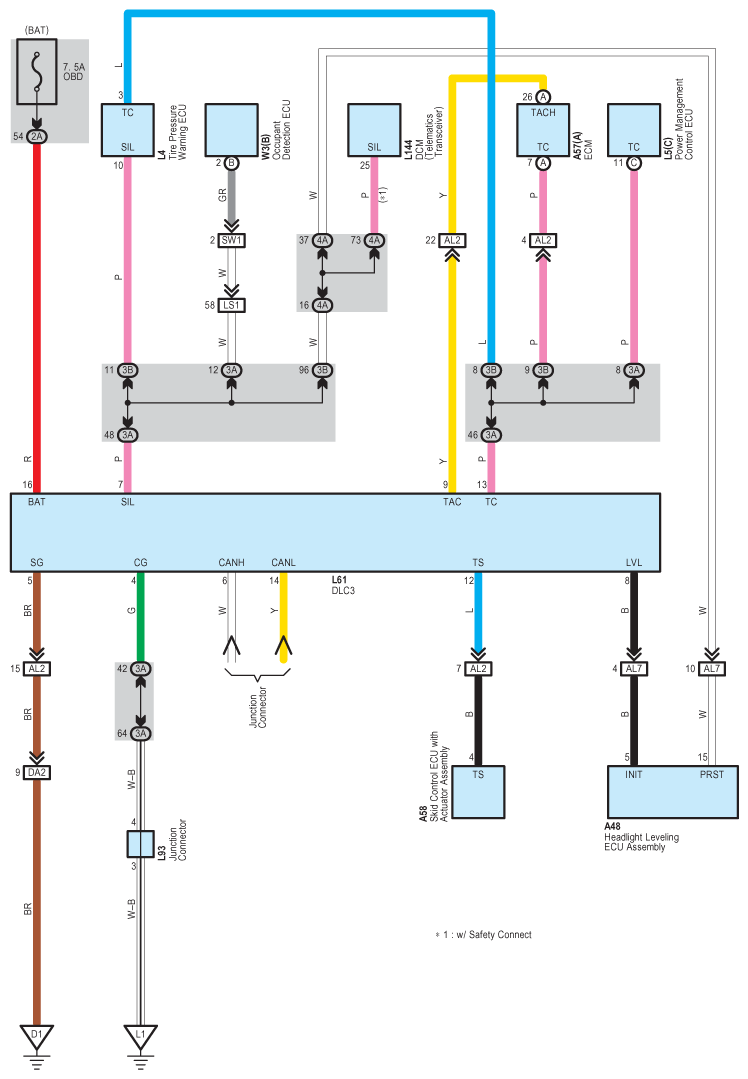

Fig 1: DLC3 Wiring Diagram

G09099386

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
