Stop Light: Notes

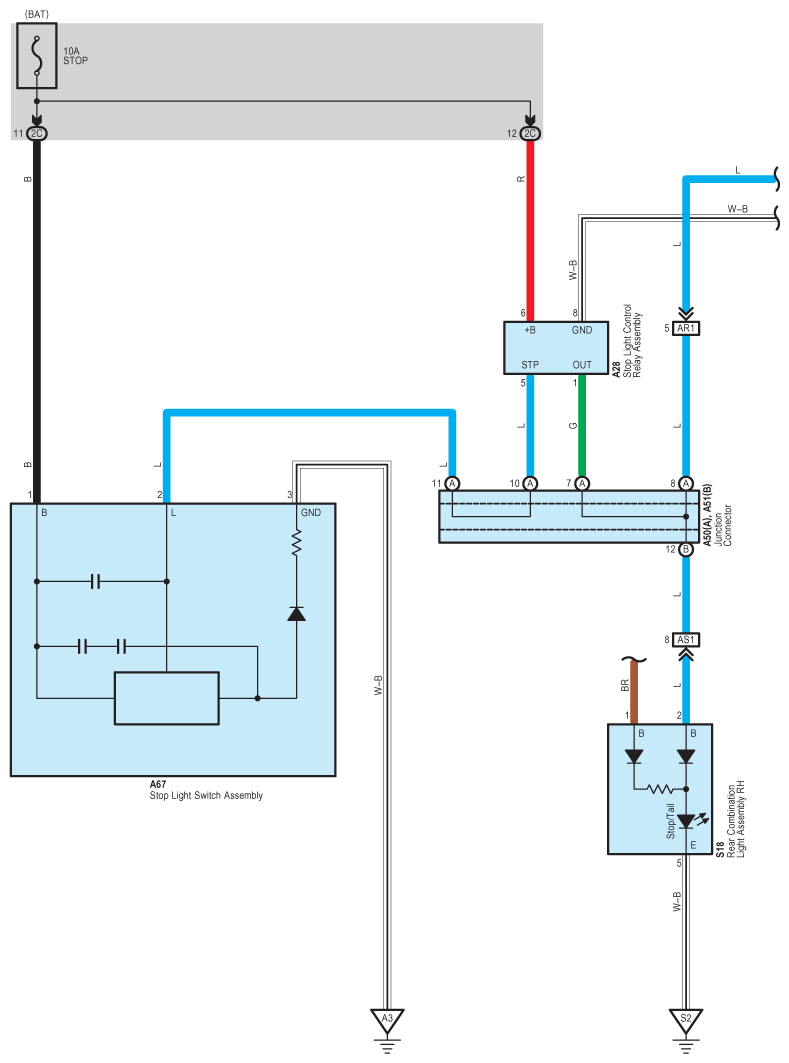

Fig 1: Stop Light System Wiring Diagram (1 Of 2)
G09099404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

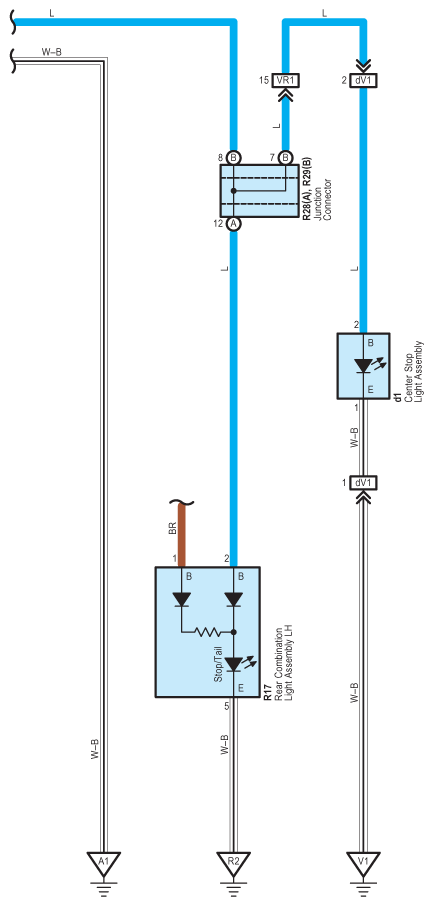

Fig 2: Stop Light System Wiring Diagram (2 Of 2)
G09099405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
