Rear Wiper and Washer: Notes

WARNING: This page is about a different variant/trim than selected.

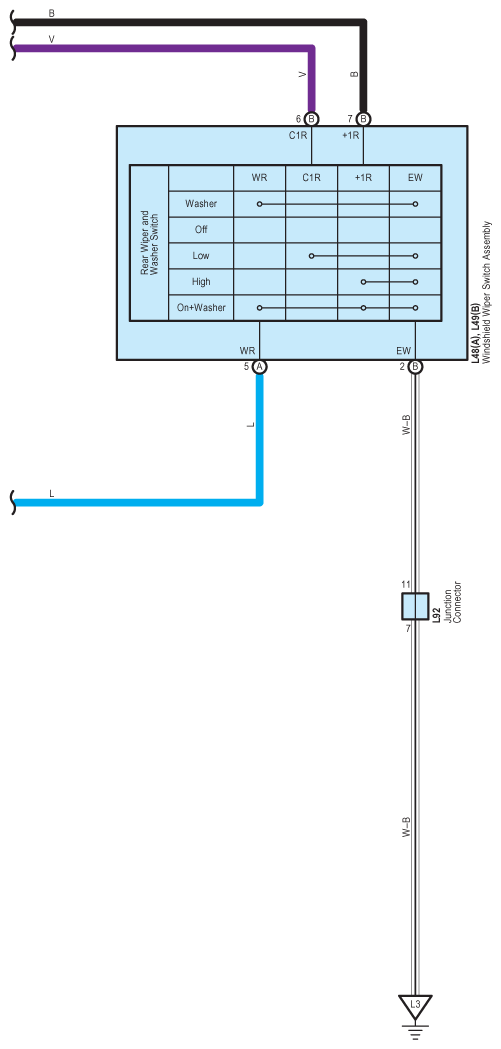

Fig 1: Rear Wiper And Washer System Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

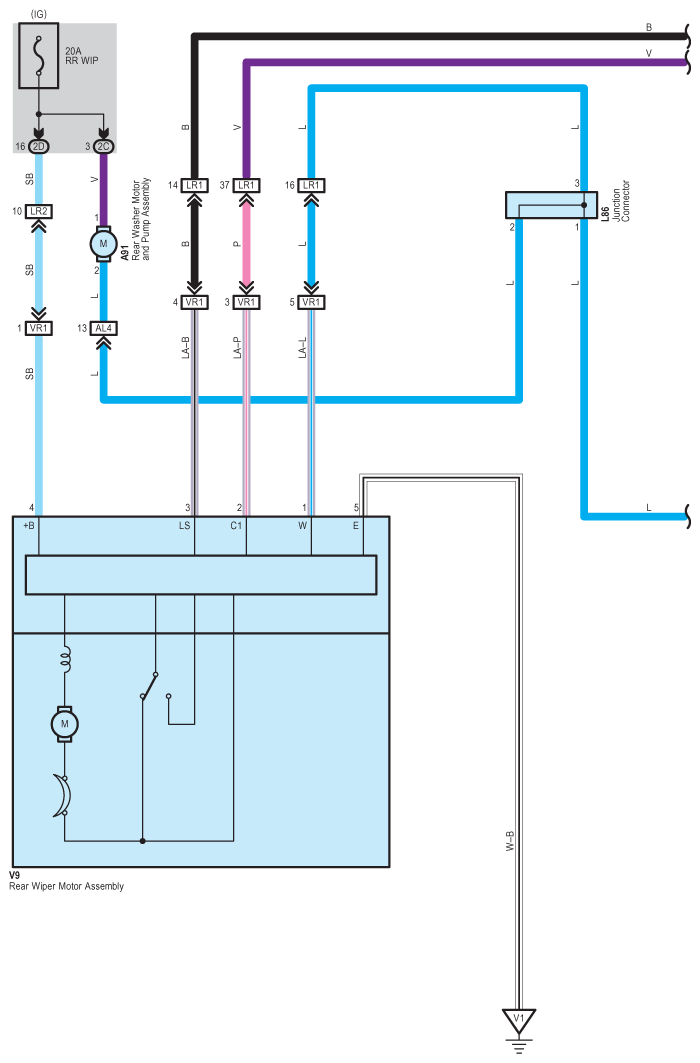

Fig 2: Rear Wiper And Washer System Wiring Diagram (2 Of 2)
