Occupant Classification Ecu: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL OCCUPANT DETECTION ECU
1. Engage the claw to install the occupant detection ECU.

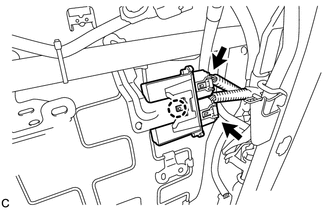

  Fig 1: Identifying Occupant Classification ECU & Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  If the occupant detection ECU has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the occupant detection ECU with a new one.
2. Connect the 2 connectors.
  NOTE:
  When installing the occupant detection ECU, be careful that the SRS wiring does not interfere with or is pinched between other parts.
INSTALL FRONT SEAT ASSEMBLY RH
HINT:

Use the same procedure for the RH side and LH side. Refer to INSTALLATION .
PERFORM DIAGNOSTIC SYSTEM CHECK
Refer to DTC CHECK / CLEAR
PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK
Refer to INITIALIZATION
