Only Back Door cannot be Opened: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

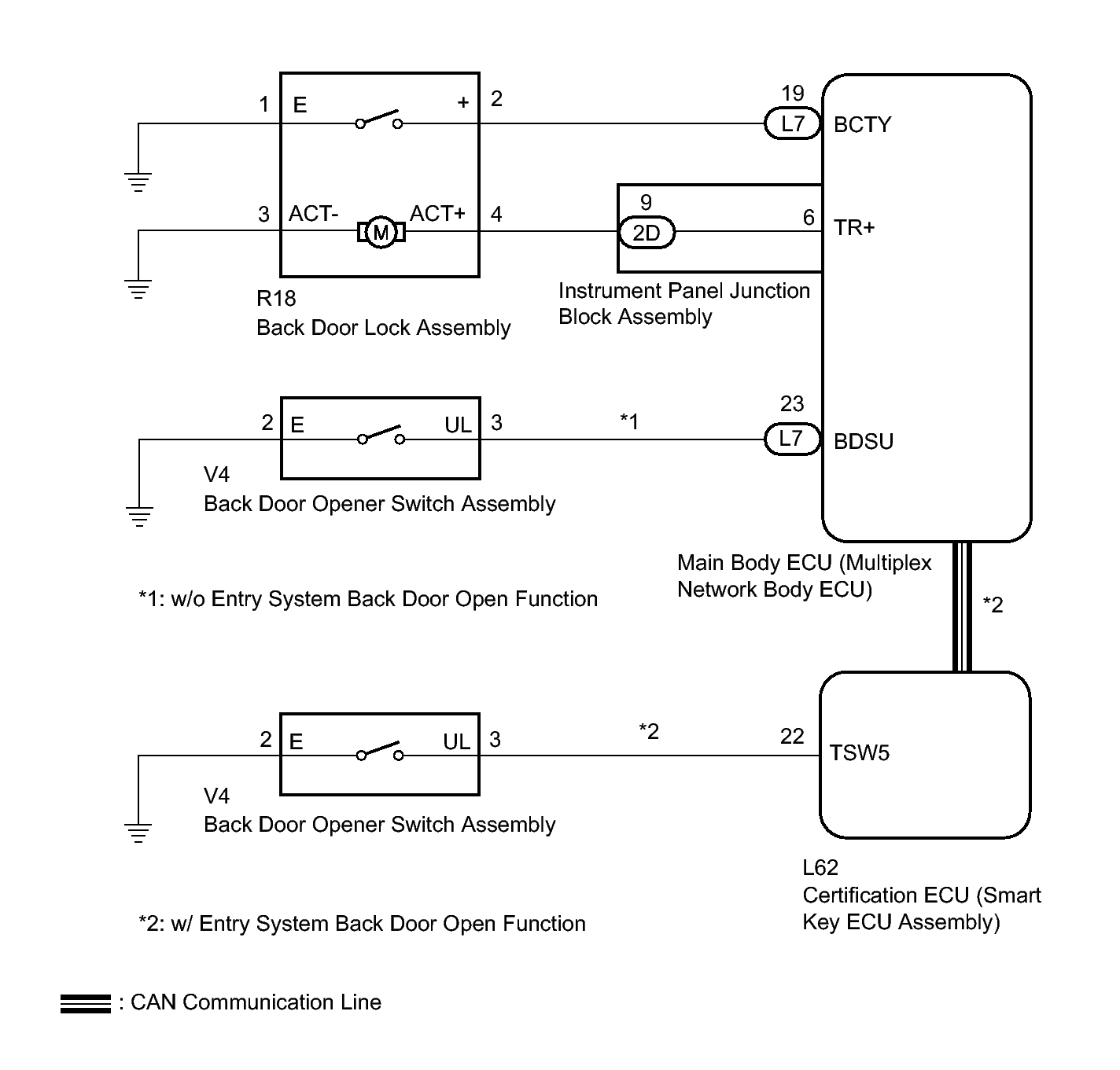

Fig 1: Identifying Back Door Lock Assembly Circuit Diagram
GTY337125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
