Parts Location: Illustration

WARNING: This page is about a different variant/trim than selected.

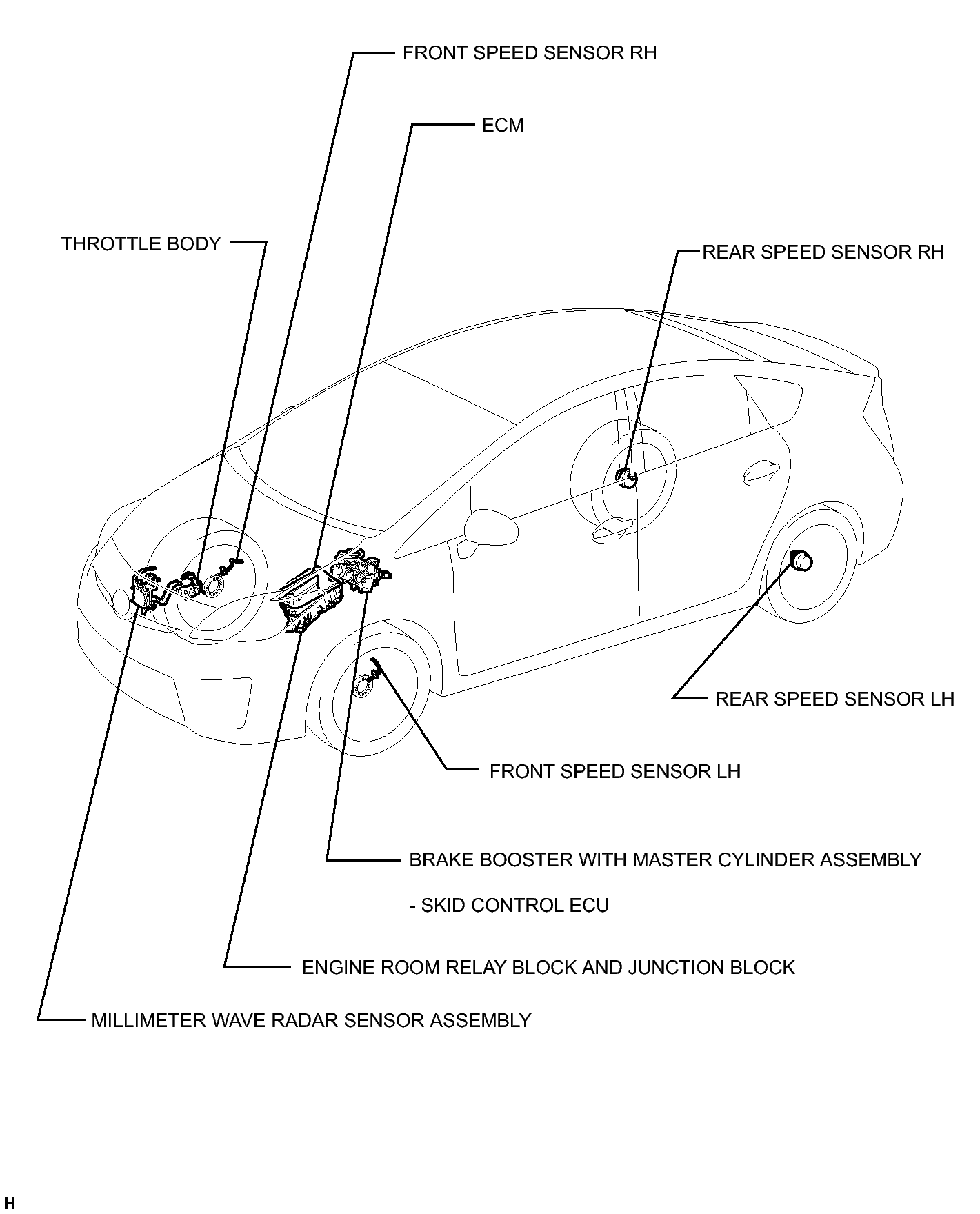

Fig 1: Identifying Dynamic Radar Cruise Control System Components Location (1 Of 2)
GTY341851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

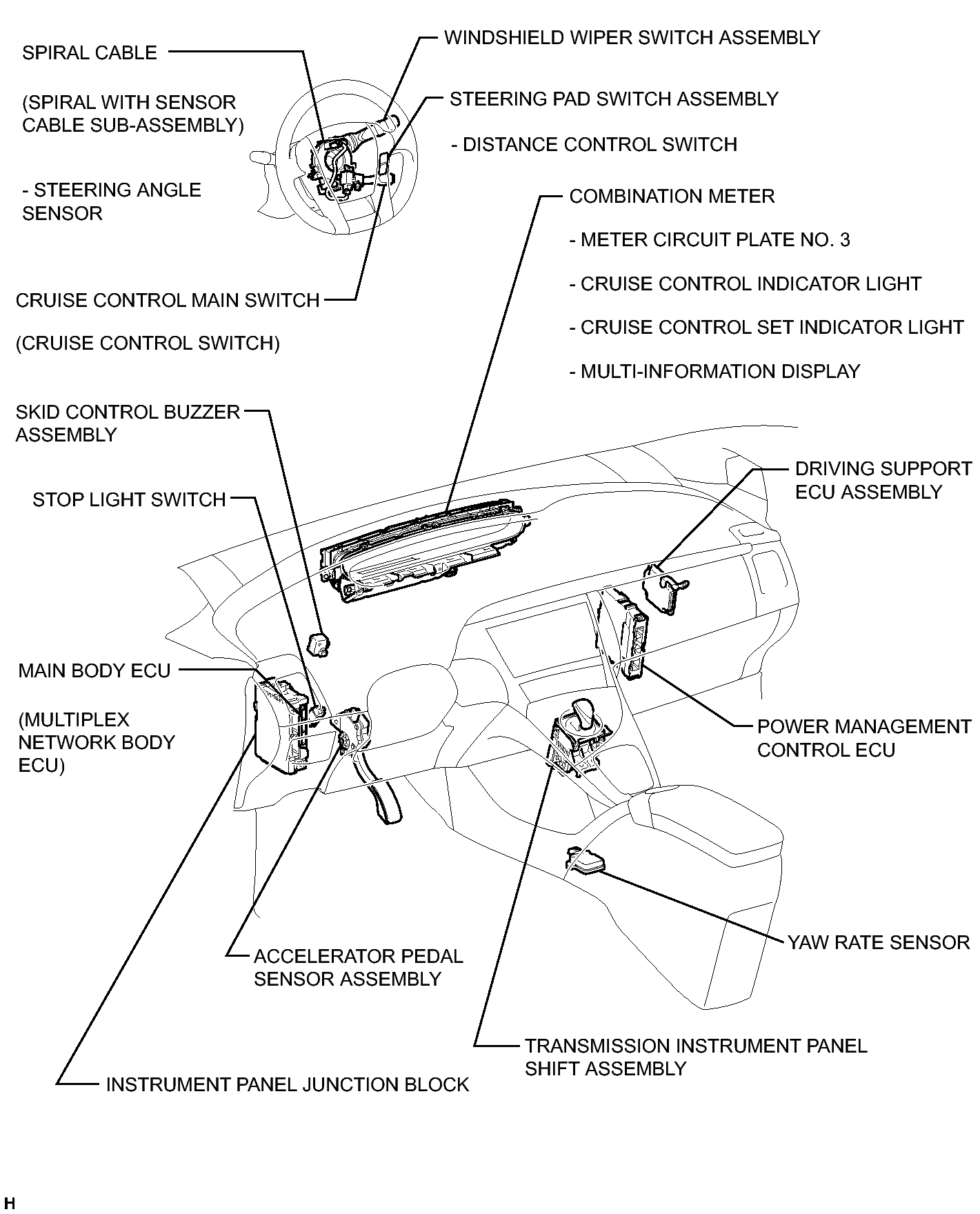

Fig 1: Identifying Dynamic Radar Cruise Control System Components Location (2 Of 2)
GTY329715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
