Power Seat: Notes

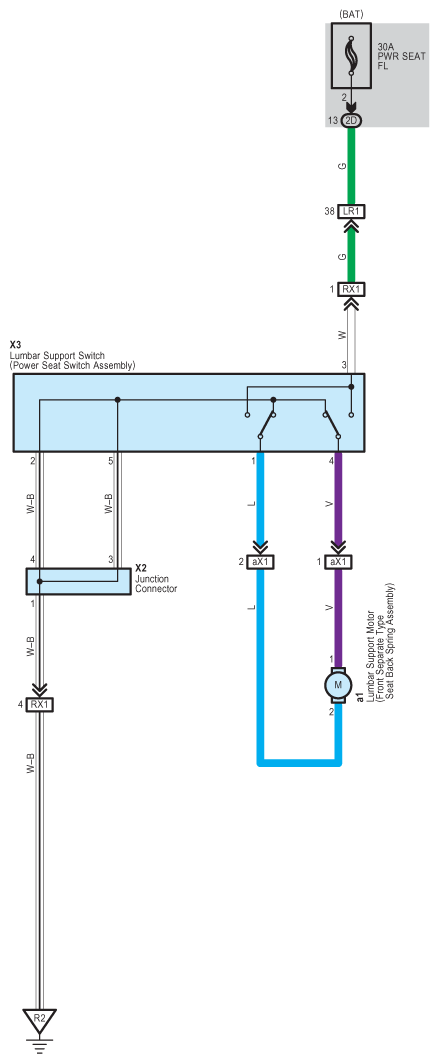

Fig 1: Power Seat System Wiring Diagram
G09109868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
