Vehicle Proximity Notification System: Notes

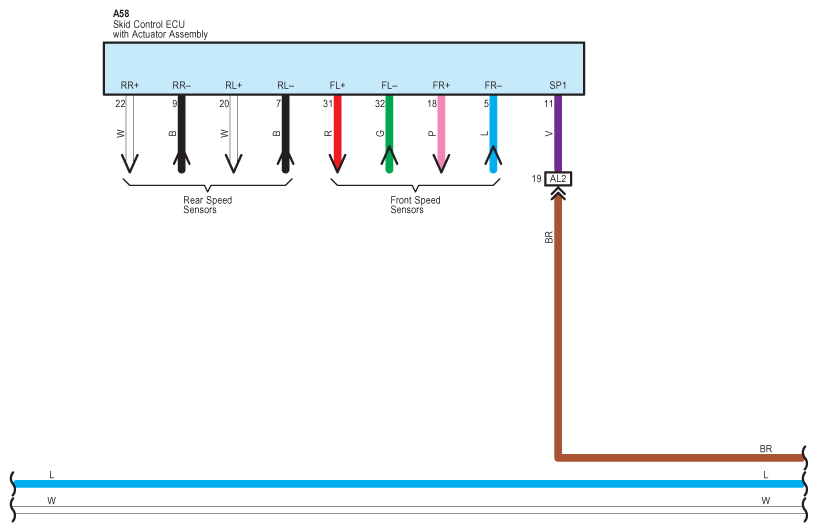

Fig 1: Vehicle Proximity Notification System Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

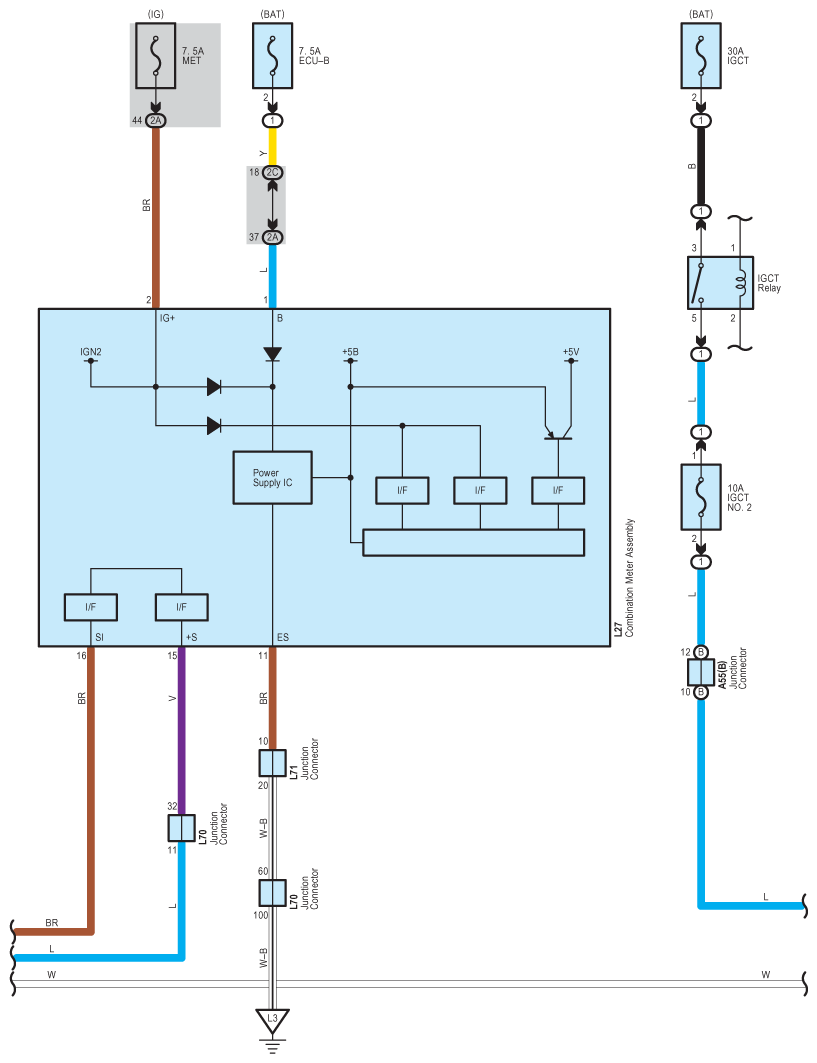

Fig 2: Vehicle Proximity Notification System Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

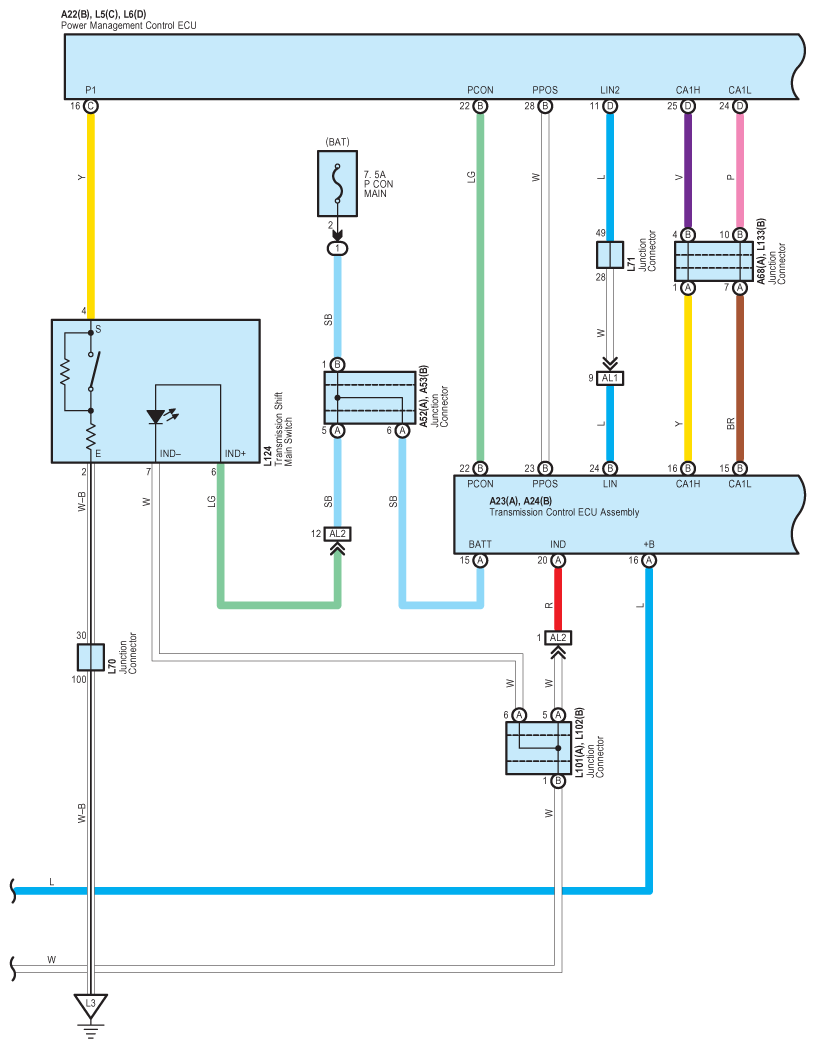

Fig 3: Vehicle Proximity Notification System Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

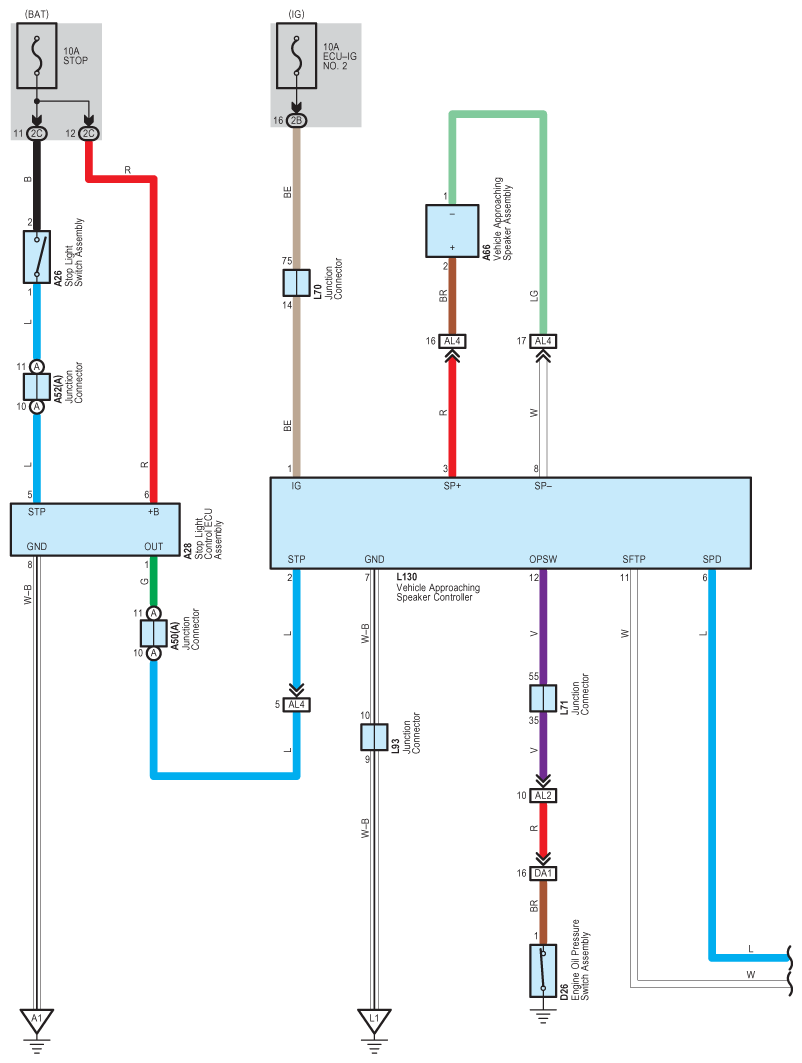

Fig 4: Vehicle Proximity Notification System Wiring Diagram (4 Of 5)

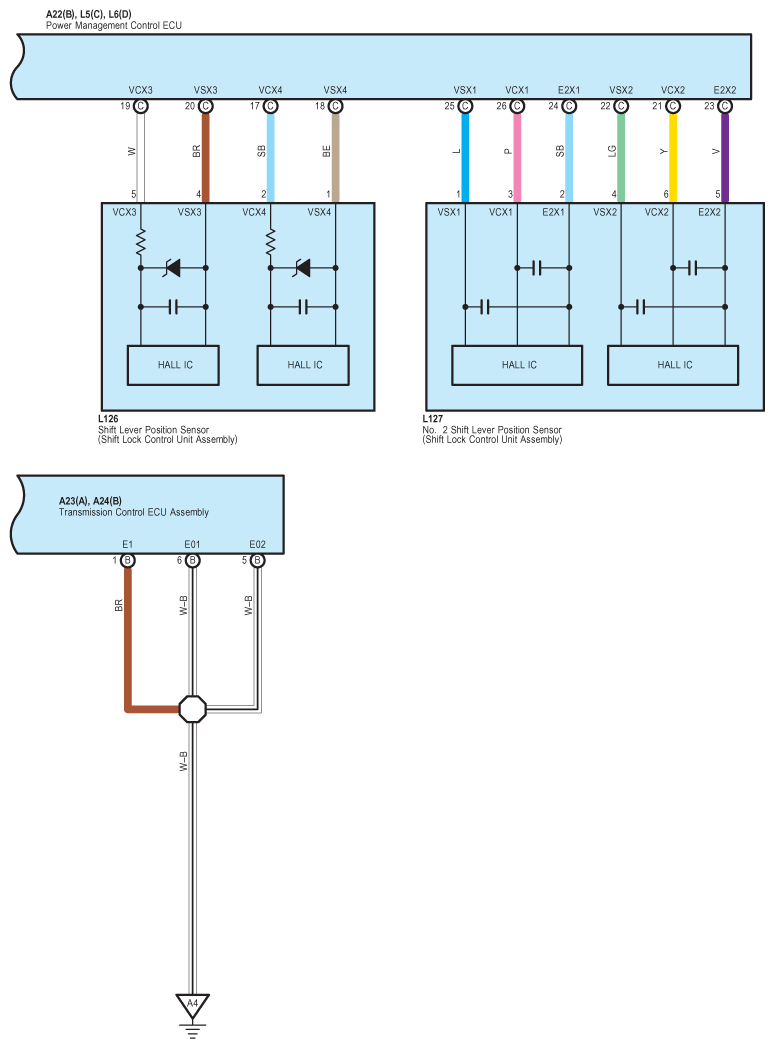

Fig 5: Vehicle Proximity Notification System Wiring Diagram (5 Of 5)
