Parts Location: Illustration

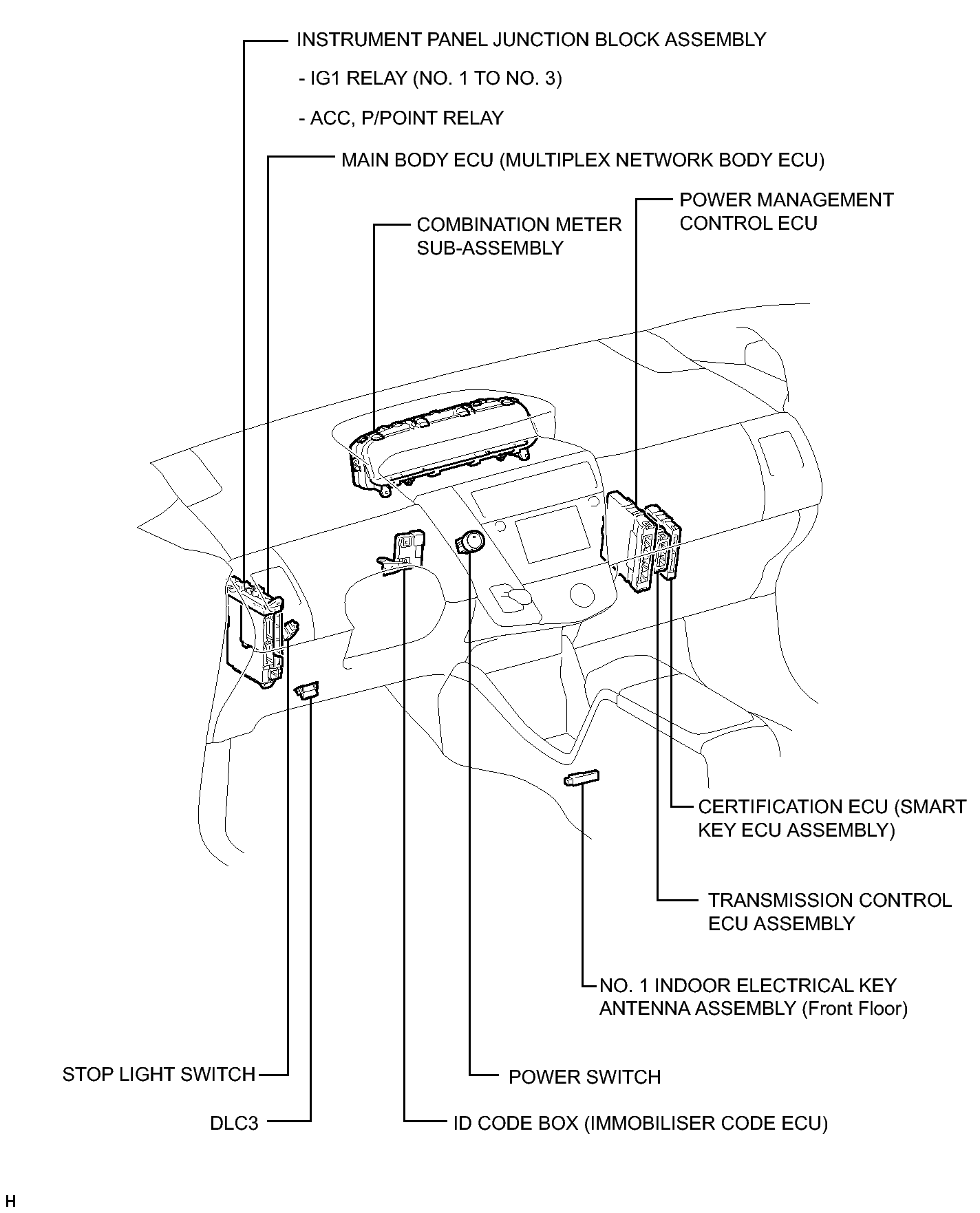

Fig 1: Identifying Smart Key System Components Location (For Start Function) (1 Of 2)
GTY343885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

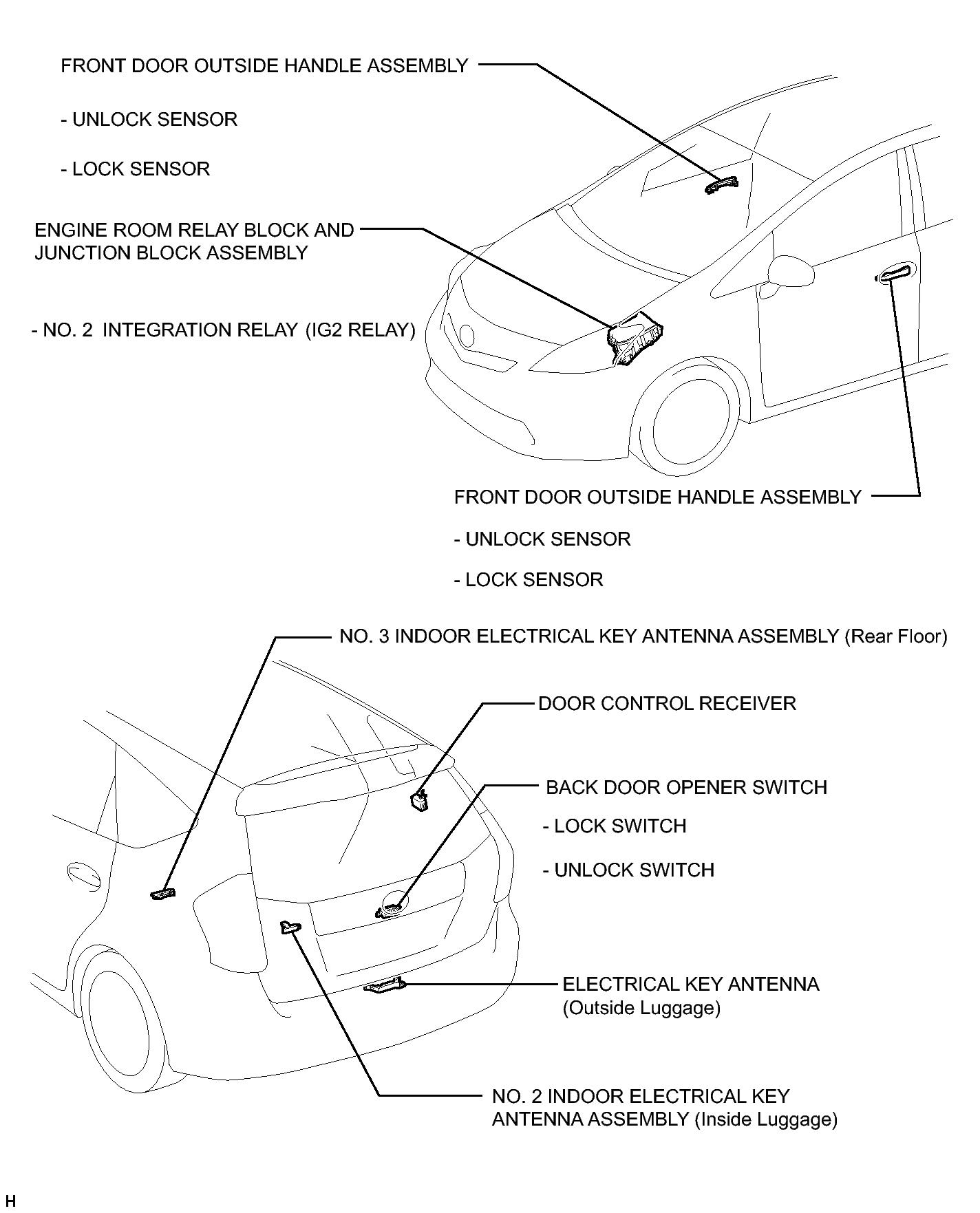

Fig 1: Identifying Smart Key System Components Location (For Start Function) (2 Of 2)
GTY330530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
